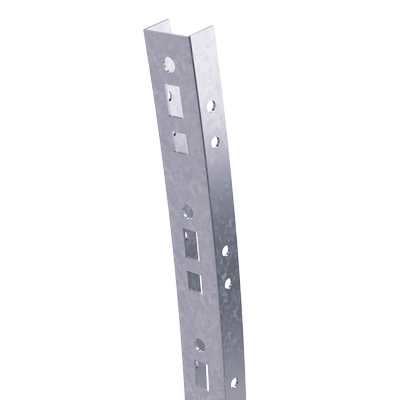

Curved profile for 8 cable brakets, L1005, thickness 2,5 mm
Code: BPC2908
Curved profile for 8 cable brakets, L1005, thickness 2,5 mm
Code: BPC2908
Model | Singular profile |
Height, mm | 78 |
Surface protection | Continuously galvanized |
Material thickness, mm | 2.5 |
Length, mm | 1005 |
Material | Steel |
Type of perforation | 3 sides punched |
Profile shape | U-profile |
Suitable for circuit integrity | Yes |
Colour | Light grey |
Material | Pre-galvanized steel |

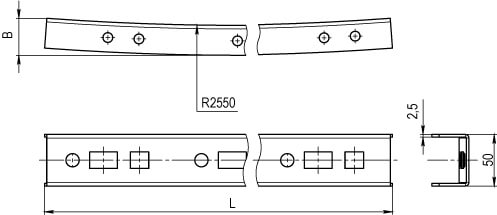

Drawings
Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
---|---|---|---|---|---|---|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
Mounting accessories - "B5 Combitech"
|
Certificates
Name | Document |
---|---|
