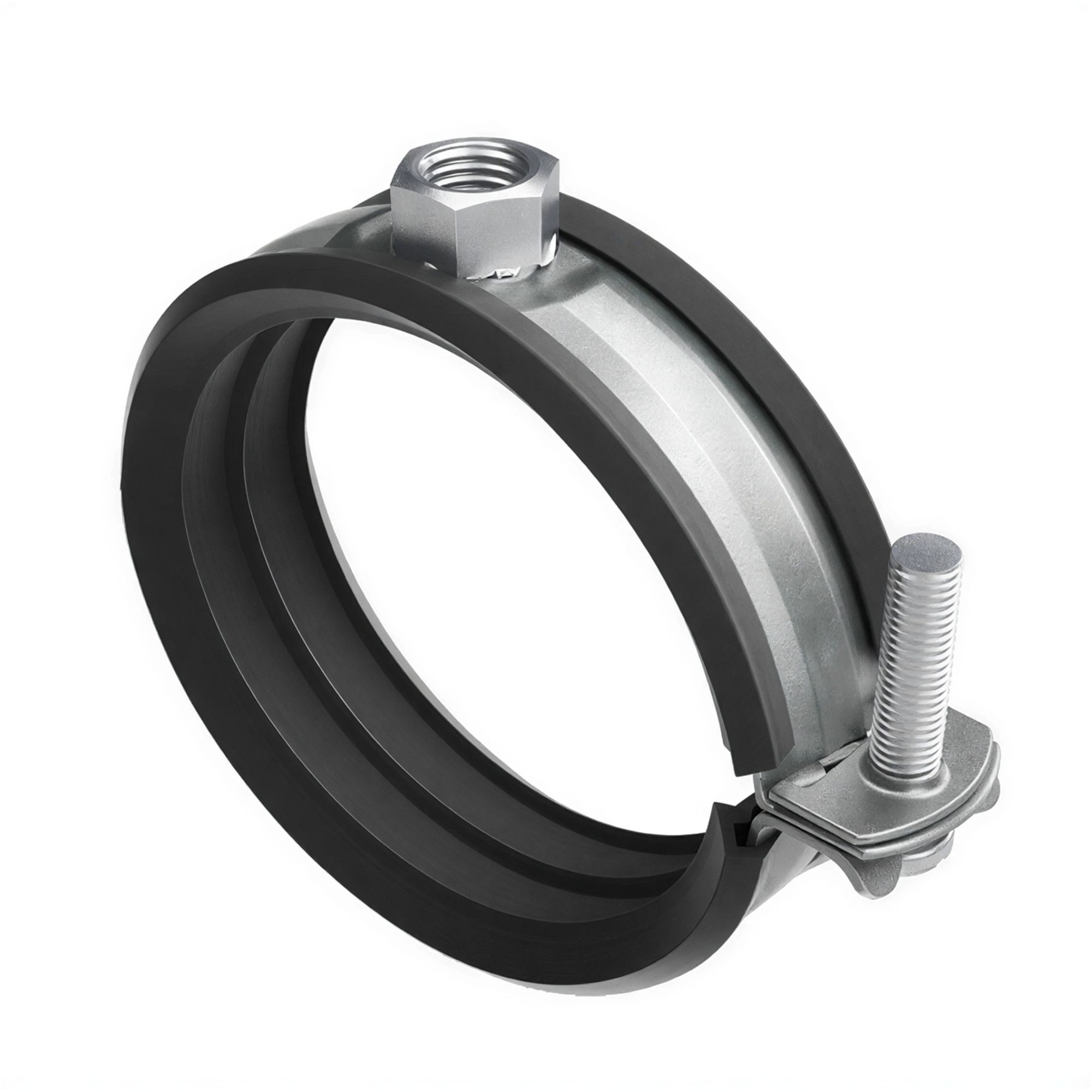

Quick-lock clamp with rubber with М8 nut for 1/2" tubes
Code: BHL21012
Quick-lock clamp with rubber with М8 nut for 1/2" tubes
Code: BHL21012
Surface protection | Galvanic/electrolytic zinc plated |
Material | Steel |
Thread size (metric) | 8 |
Outer pipe diameter, mm | 22 |
Thread type | Metric |
Material | Pre-galvanized steel |
Analogs

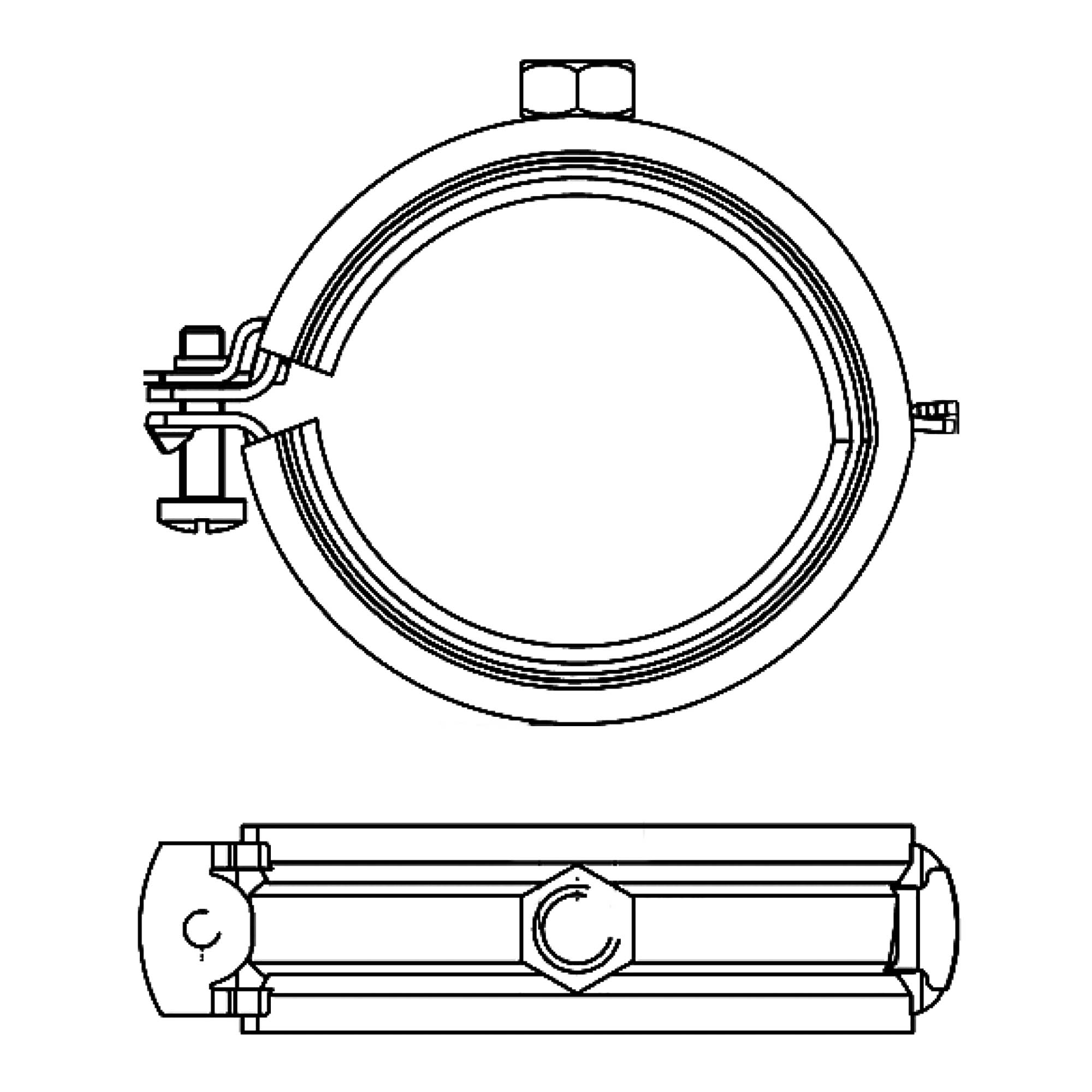

Drawings
Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
---|---|---|---|---|---|---|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
Mounting accessories - "B5 Combitech"
|
Certificates
Name | Document |
---|---|
