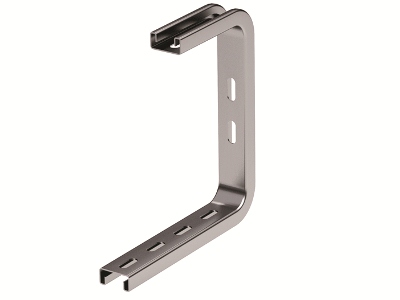

Light overhead bracket DS, L200, thickness 2,5 mm, hot dip galvanized
Code: BBA3020HDZ
Light overhead bracket DS, L200, thickness 2,5 mm, hot dip galvanized
Code: BBA3020HDZ
Model | Face out bracket (C-bracket) |
Material | Steel |
Load bearing capacity, N | 1205.4 |
Suitable for wire mesh tray | Yes |
Suitable for cable ladder | Yes |
Suitable for cable tray | Yes |
Tray mounting | Screwable |
Suitable for circuit integrity | No |
Length, mm | 240 |
Thickness of metal sheet, mm | 2,5 |
Type | Brackets |
Material | Hot-dip galvanized |
Accessories

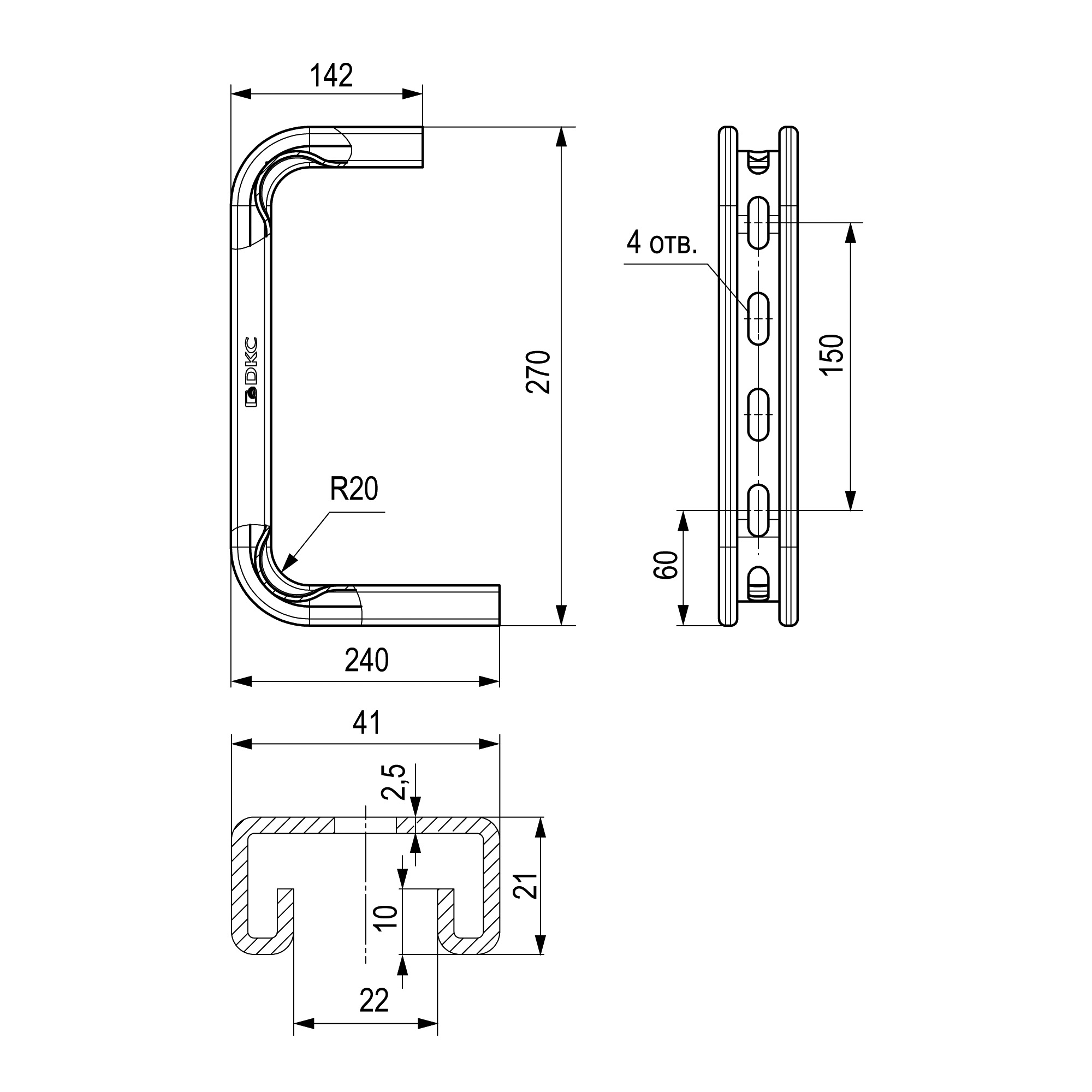

Drawings
Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
---|---|---|---|---|---|---|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
Mounting accessories - "B5 Combitech"
|
Certificates
Name | Document |
---|---|
