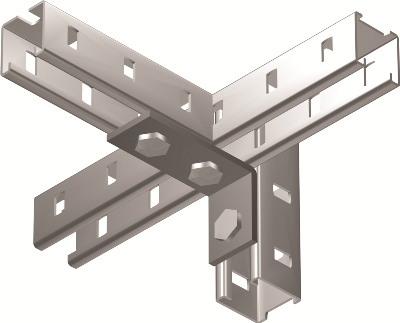

Corner single extended 92 mm, hot dip galvanized
Code: BMC1012HDZ
Corner single extended 92 mm, hot dip galvanized
Code: BMC1012HDZ
Model | Angle |
Suitable for | L-profile |
Surface protection | Hot-dip galvanized |
Material quality | Other |
Material | Steel |
With screw accessories | No |
Width, mm | 40 |
Length, mm | 92,5 |
Thickness of metal sheet, mm | 5 |
Type | Brackets |
Material | Hot-dip galvanized |

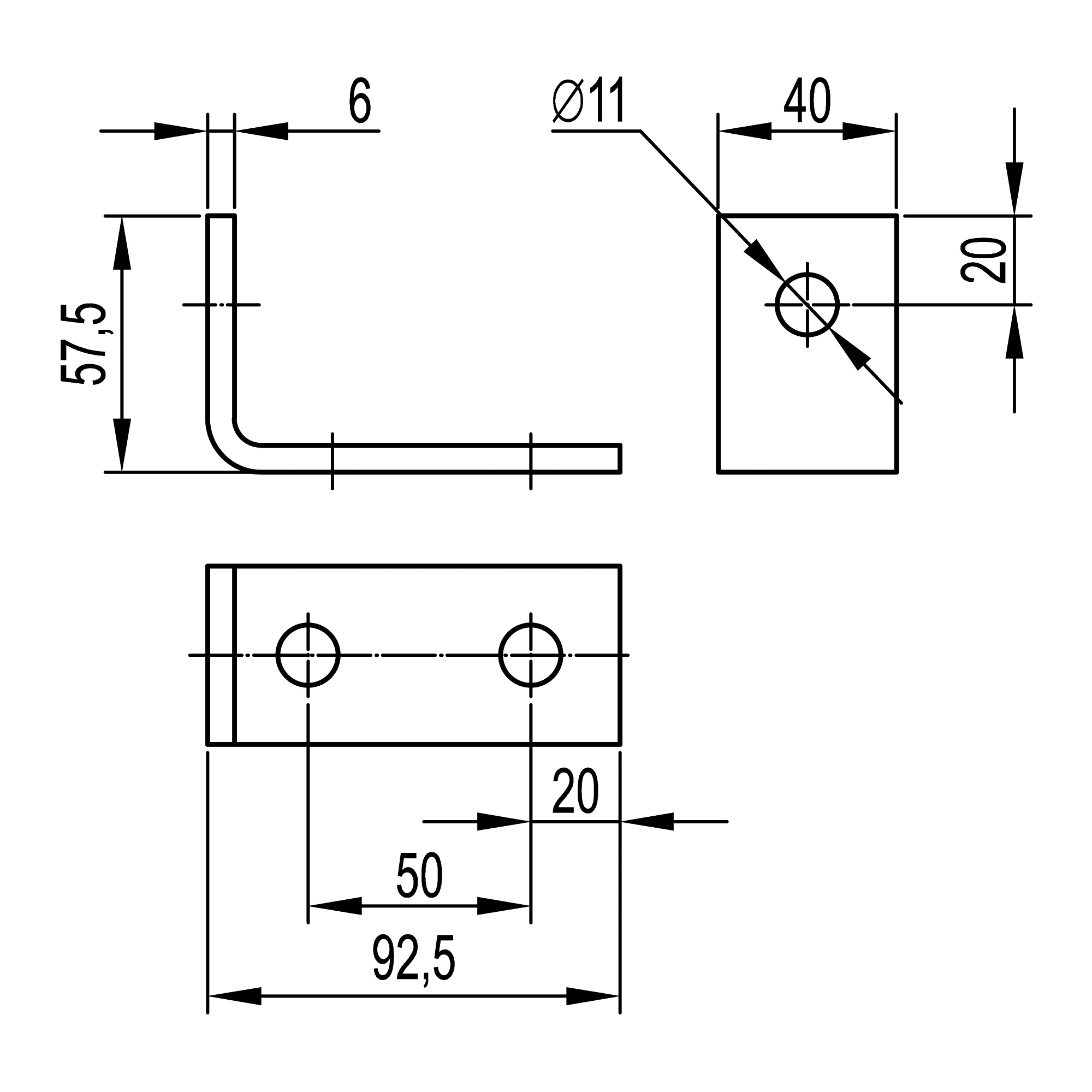

Drawings
Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
---|---|---|---|---|---|---|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
Mounting accessories - "B5 Combitech"
|
Certificates
Name | Document |
---|---|
