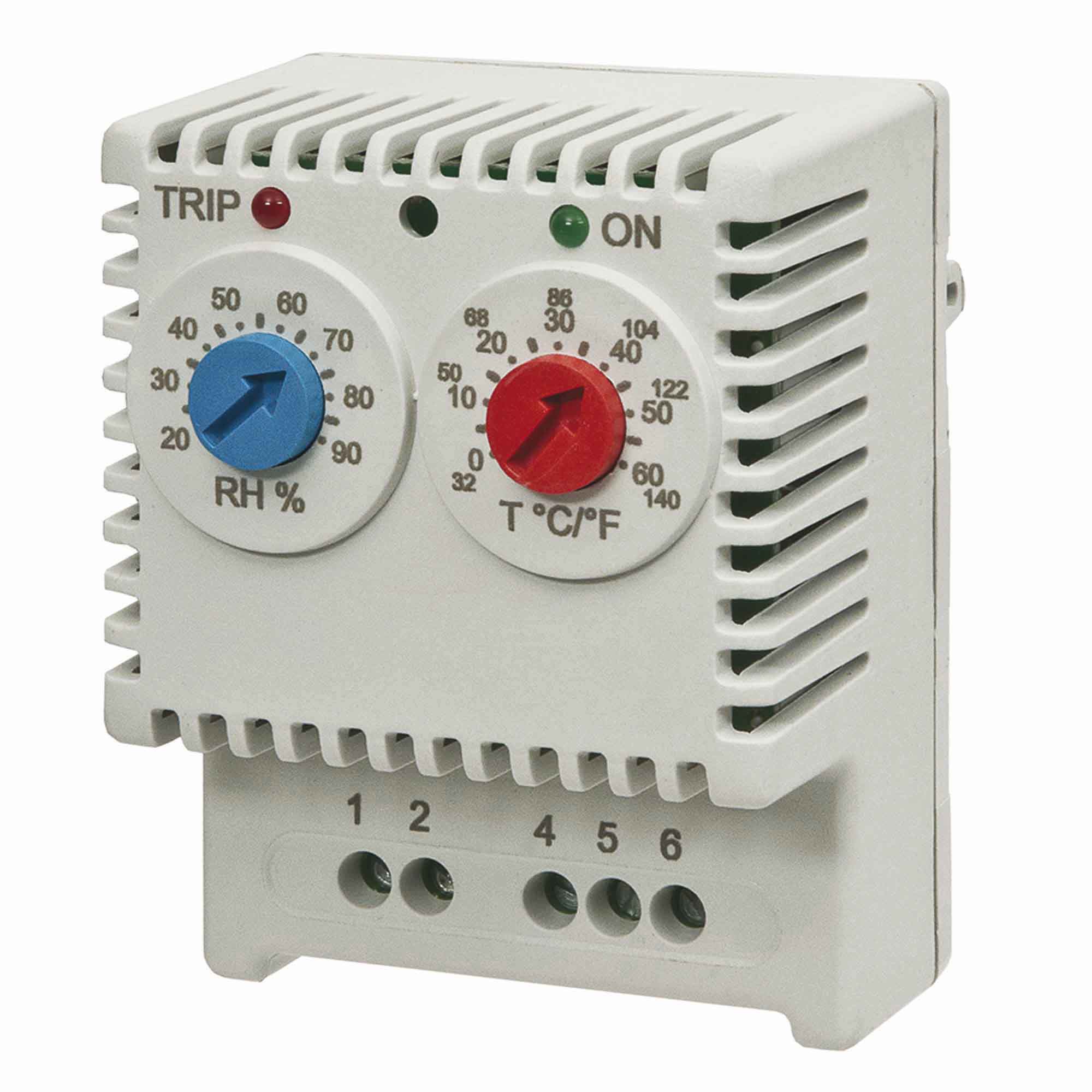

Hygrotherm electronic, 230 V, setting temperature range 0…+60°C, setting relative humidity range 20...90%, switching contact
Code: R5ETUH22
Hygrotherm electronic, 230 V, setting temperature range 0…+60°C, setting relative humidity range 20...90%, switching contact
Code: R5ETUH22
Mounting method | DRA (DIN-rail adapter) |
Rated voltage, V | 230 |
With digital indication | Нет |
Type of switch function | Change-over contact |
With hygrostat | Да |
Adjustment range temperature, °C | 0…+60 |
Product type | Control and Regulation |
External dimensions (W x H x D), mm | 53 x 50 x 69 |
Temperature setting range, °С | from 0 to +60 |
Relative Humidity setting range, % | from 20 to 90 |
Contact type | Change over |
Precision, °С | ±1 |
Precision, % | ±1 |
Hysteresis, °С | 2 |
Hysteresis, % | 5 |

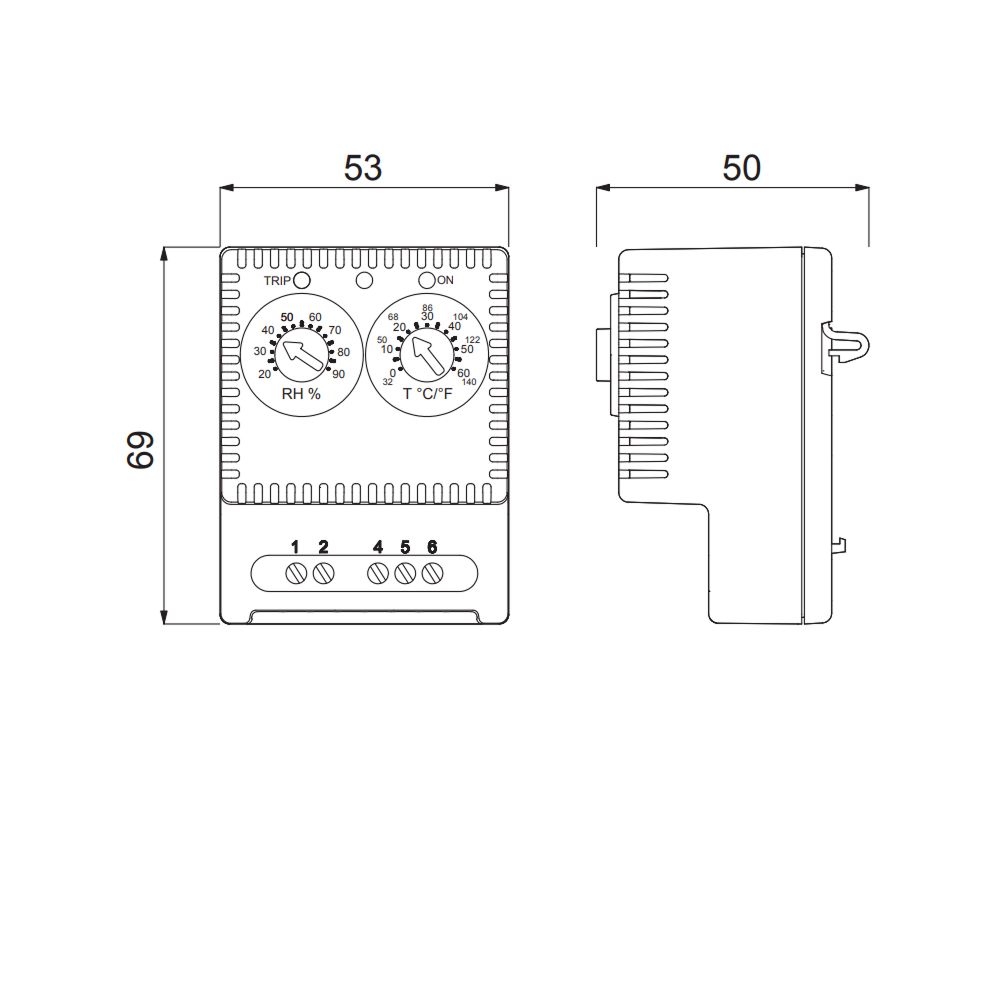

Drawings
Seria | Name | DWG (dynamic.) | Eplan |
---|---|---|---|
