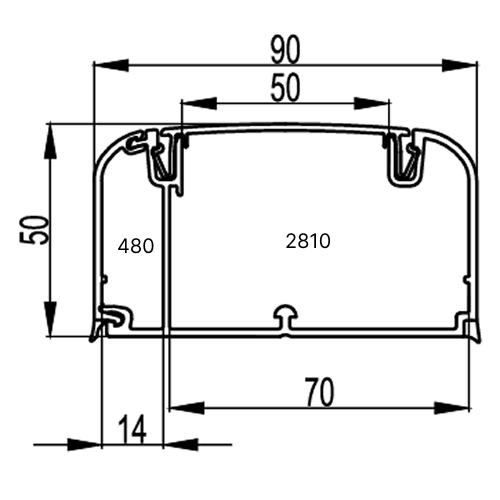

Cable trunking 90x50 mm with cover and separator, white

Code: 09500
  • To ask a question
Colour Pure white
Width, mm 90
Depth, mm 50
Material quality Polyvinyl chloride (PVC)
Length, mm 2000
Material Plastic
Mounting method cover Inner lying
Number of covers 1
Number of plug-in partitions 1
Mounting perforation in bottom Yes
With cable fixing clip Yes
With duct connector Yes
Useful cross section, mm² 3282
Cover width 1, mm 90
With protection film Yes
Symmetric Yes
Construction type rectangular Yes
Covers supplied with the product Yes
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 90
Ingress Protection rating, IP IP40
Average filled area, 2802+480
Summarized profile area (max), 3282
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Shock resistance, J 6
Climate version UHL4
Voltage of disruption, V More 2500
Height (nominal), mm 50
Self-glueing base false
Product type Cable duct
