No name
Code: CM461065HDZ
No name
Code: CM461065HDZ
| Model | Impact |
| Surface protection | Galvanic/electrolytic zinc plated |
| Min. drill hole depth, mm | 58 |
| Material sleeve | Steel |
| Length, mm | 80 |
| Thread size (metric) | 10 |
| Drill hole diameter, mm | 16 |
| Self boring | Yes |
| App. load pull zone, kN | 24.6 |
| With approval | Yes |
| Fastening provision | L-hook screw |
| Material | Steel |
| Threading | M10 |
| Length | 80 mm |

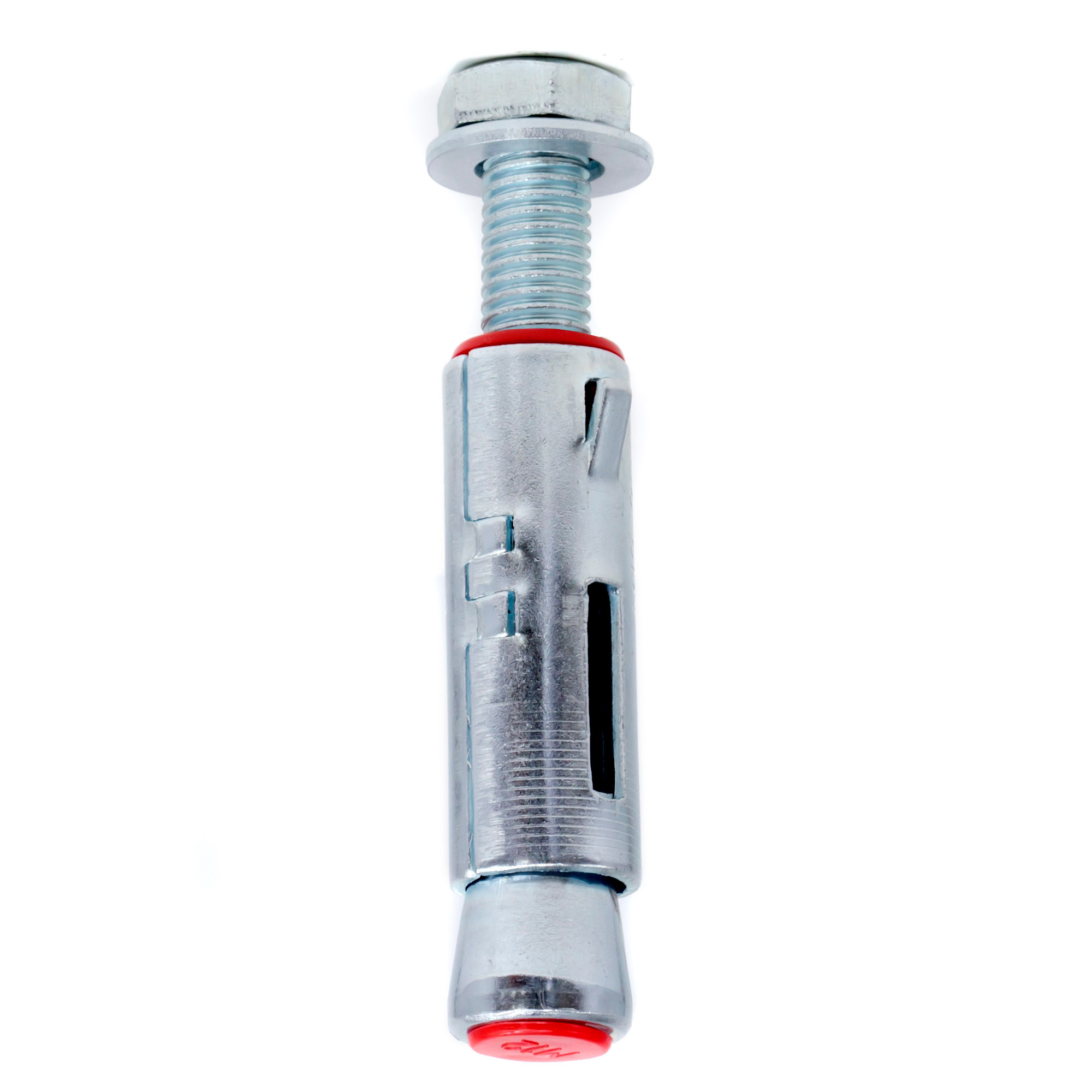

| Type | Anchor with bolt |
Certificates
| Name | Document |
|---|---|
