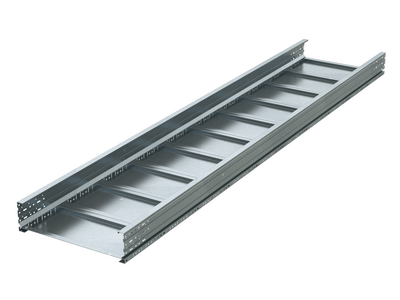

Sheet tray non-perforated 150х400, side rail thickness 1,5 mm, L 3 m ZL
Code:
UNM354ZL
Sheet tray non-perforated 150х400, side rail thickness 1,5 mm, L 3 m ZL
Code:
UNM354ZL
Colour | Light grey |
Width, mm | 400 |
Model | Without connector |
Height, mm | 150 |
Surface protection | Zinc lamellar coating |
Material thickness, mm | 1.5 |
Side wall perforation | Yes |
Material quality | Steel |
Length, mm | 3000 |
Material | Steel |
Mounting perforation in bottom | No |
Useful cross section, mm² | 52000 |
NATO-mounting holes | Yes |
Wide span model | Yes |
Suitable for circuit integrity | Yes |
Product type | Non perforated straight elements |
Type | Heavy metal trays - " U5 Combitech" |
Height | 150 mm |
Side rail thickness | 1.5 mm |
Length | 3000 mm |
Material | Zinc-lamellated steel |
Width | 400 mm |
Accessories
Analogs

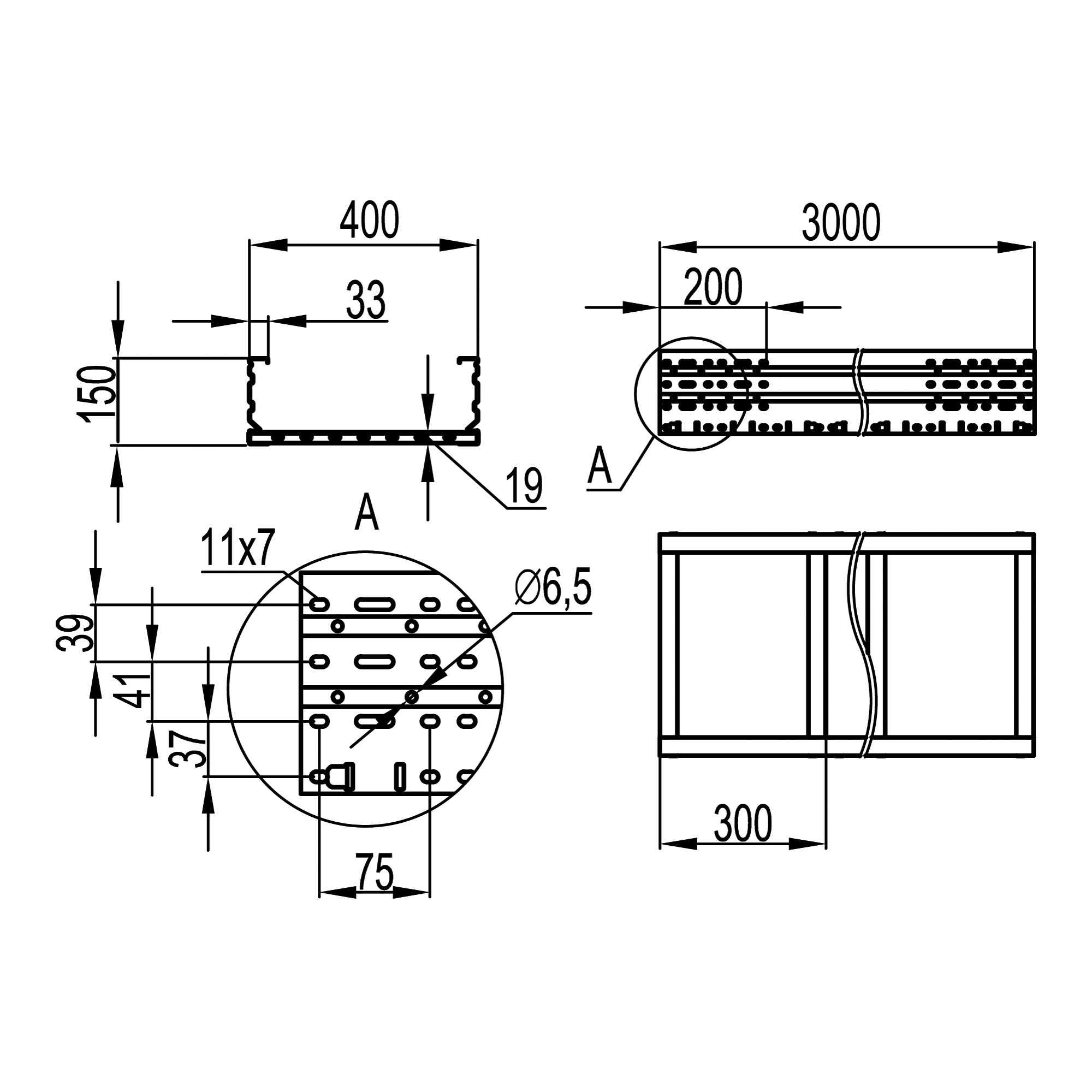

Drawings
Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
---|---|---|---|---|---|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
Certificates
Name | Document |
---|---|
