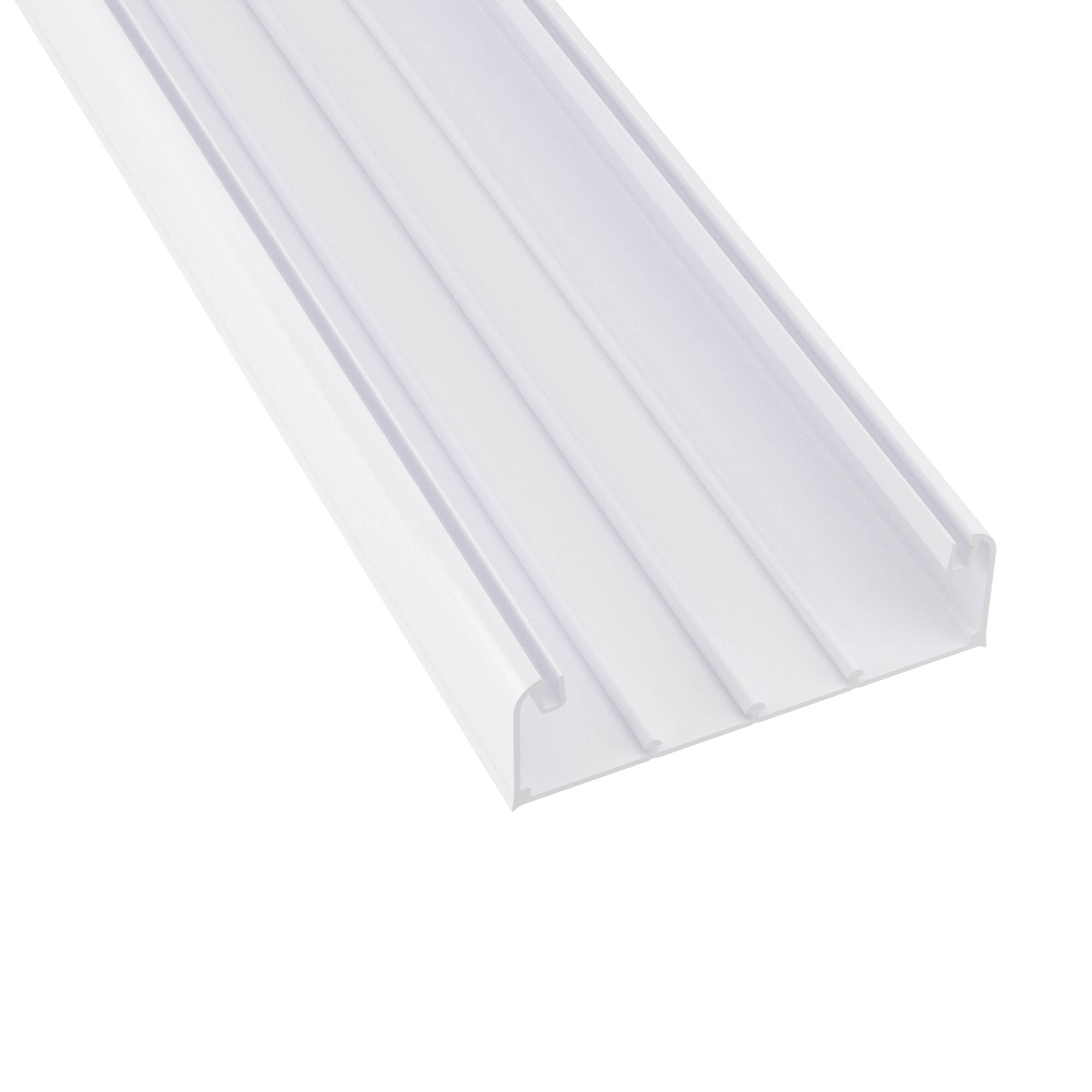

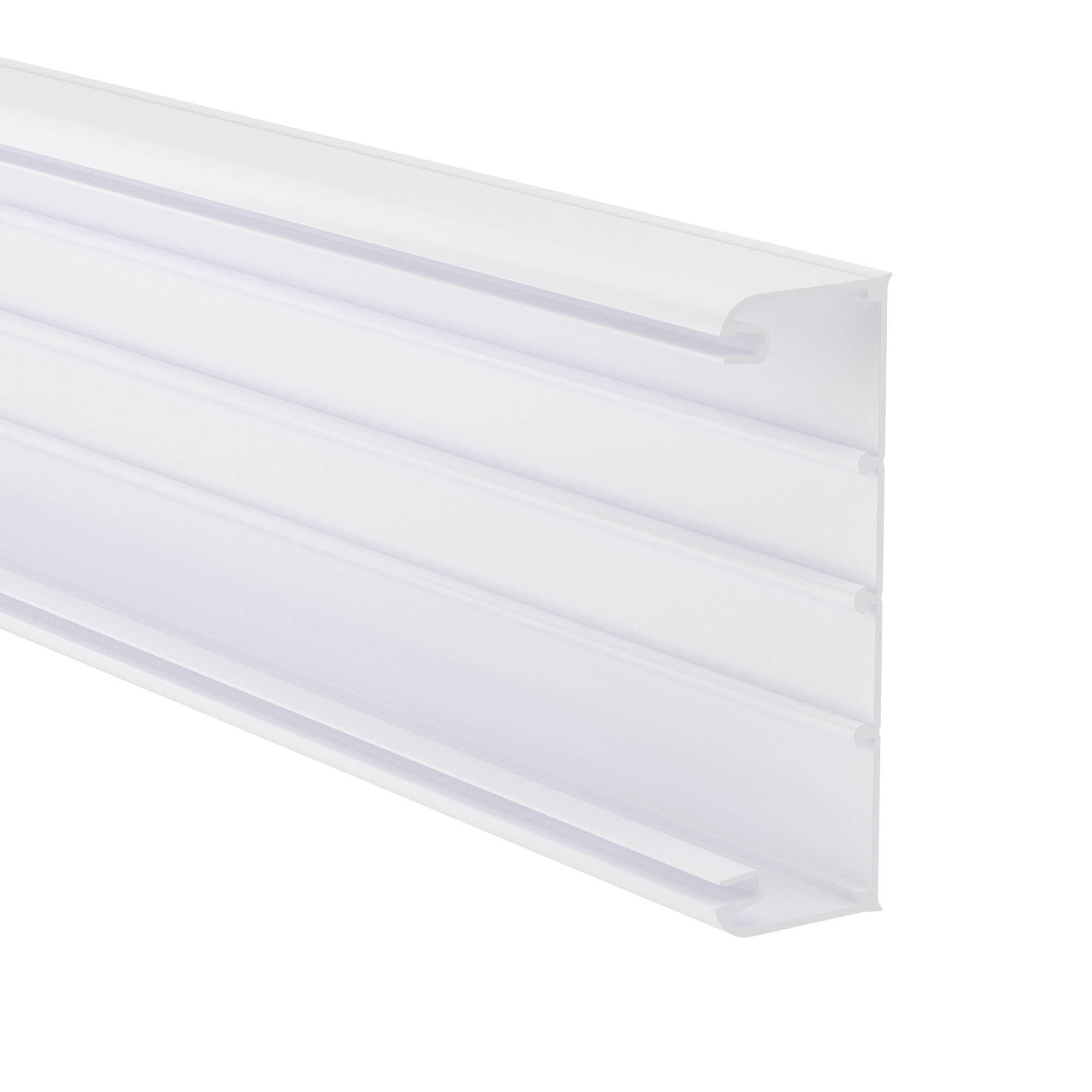

Cable trunking 140x50 mm, tray without cover, white

Code: 01400
  • To ask a question
Colour Pure white
Width, mm 140
Depth, mm 50
Material quality Polyvinyl chloride (PVC)
Length, mm 2000
Material Plastic
Mounting method cover Inner lying
Number of plug-in partitions 1
Mounting perforation in bottom Yes
With cable fixing clip Yes
With duct connector Yes
Useful cross section, mm² 5753
Cover width 1, mm 140
With protection film Yes
Symmetric Yes
Construction type rectangular Yes
Covers supplied with the product Yes
Material PVC
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 140
Ingress Protection rating, IP IP40
Average filled area, sq.mm 5753
Summarized profile area (max), sq.mm 5753
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Shock resistance, J 6
Climate version UHL4
Voltage of disruption, V More 2500
Height (nominal), mm 50
Self-glueing base false
Product type Cable duct
