| Width, mm | 570 |
| Model | Air/air |
| Height, mm | 310 |
| Depth, mm | 300 |
| Voltage type | AC |
| With heating function | Yes |
| With temperature control | Yes |
| Function master/slave | Yes |
| Ambient temperature during operating, °C | 20...55 |
| Total cooling capacity according to EN 14511 at 35/35 °C, W | 500 |
| Speed-regulated | Yes |
| Operating voltage at AC 50 Hz, V | 230...230 |
| Operating voltage at AC 60 Hz, V | 230...230 |

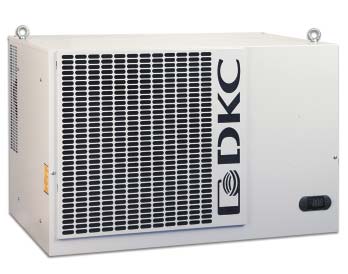

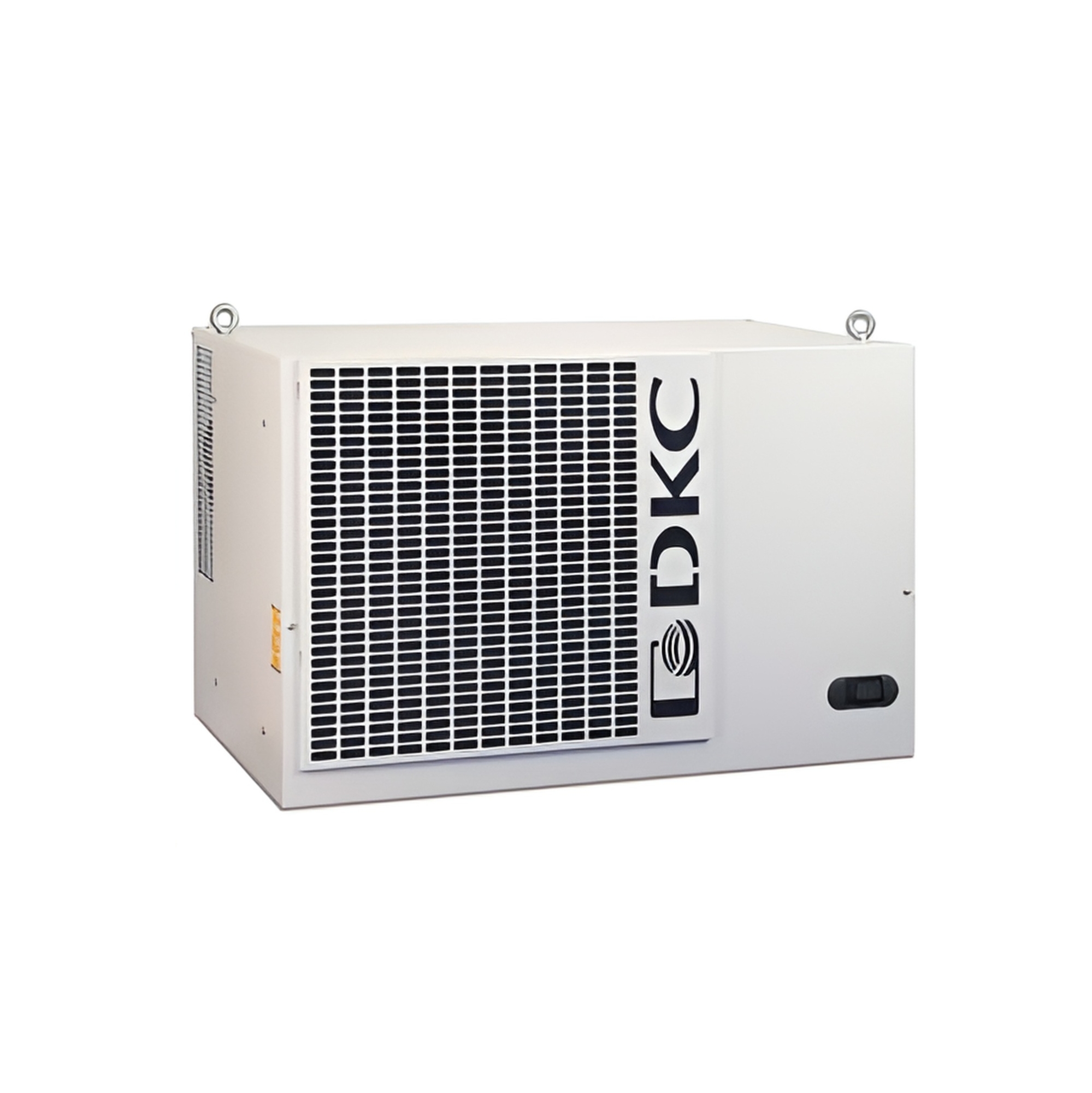

| Product type | Air conditioner |
| Class of cooling output, W | 500 |
| Rated operating voltage V, ~, Hz | 230 V, 1 p, 50/60 Hz |
| Version of cooler | Indoor |

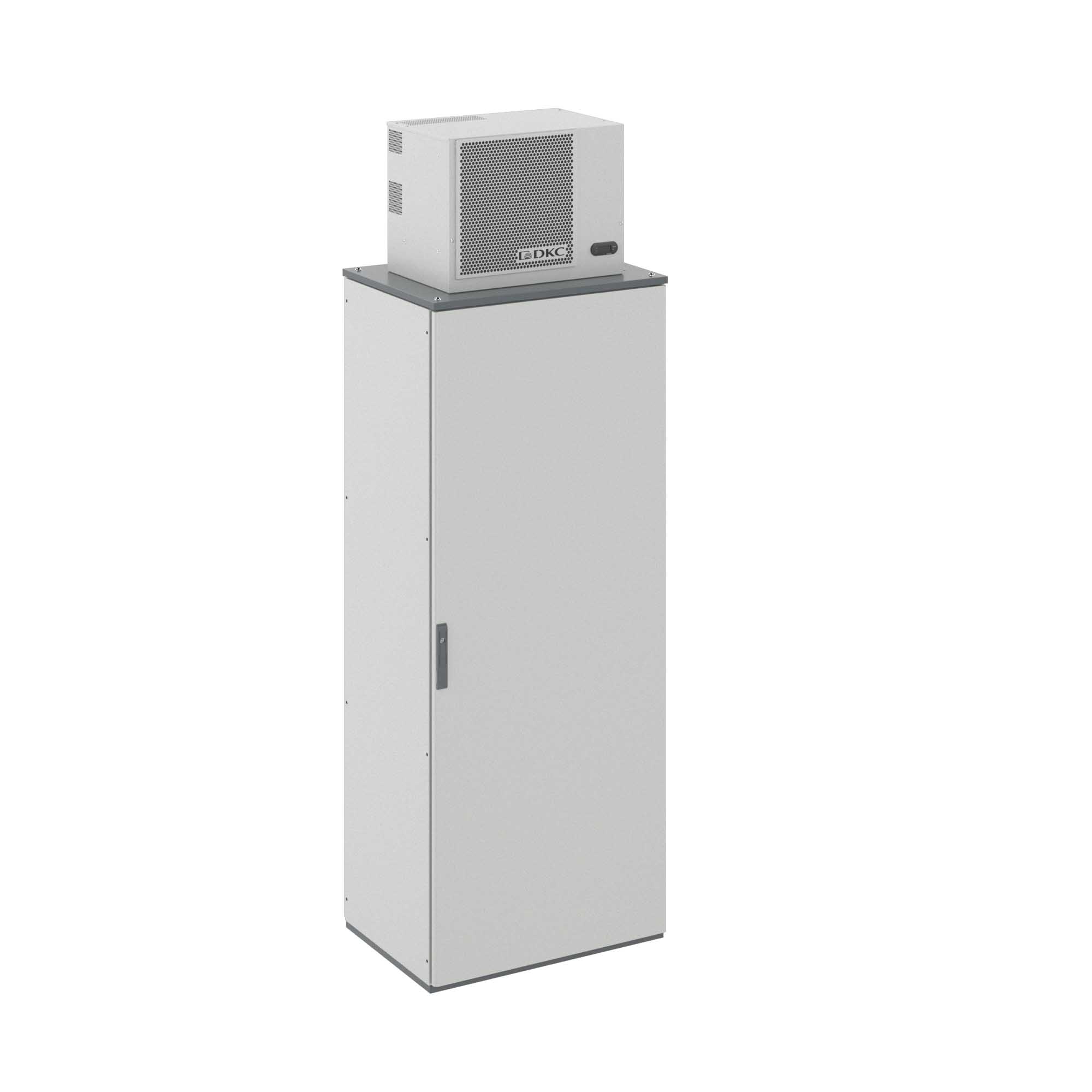

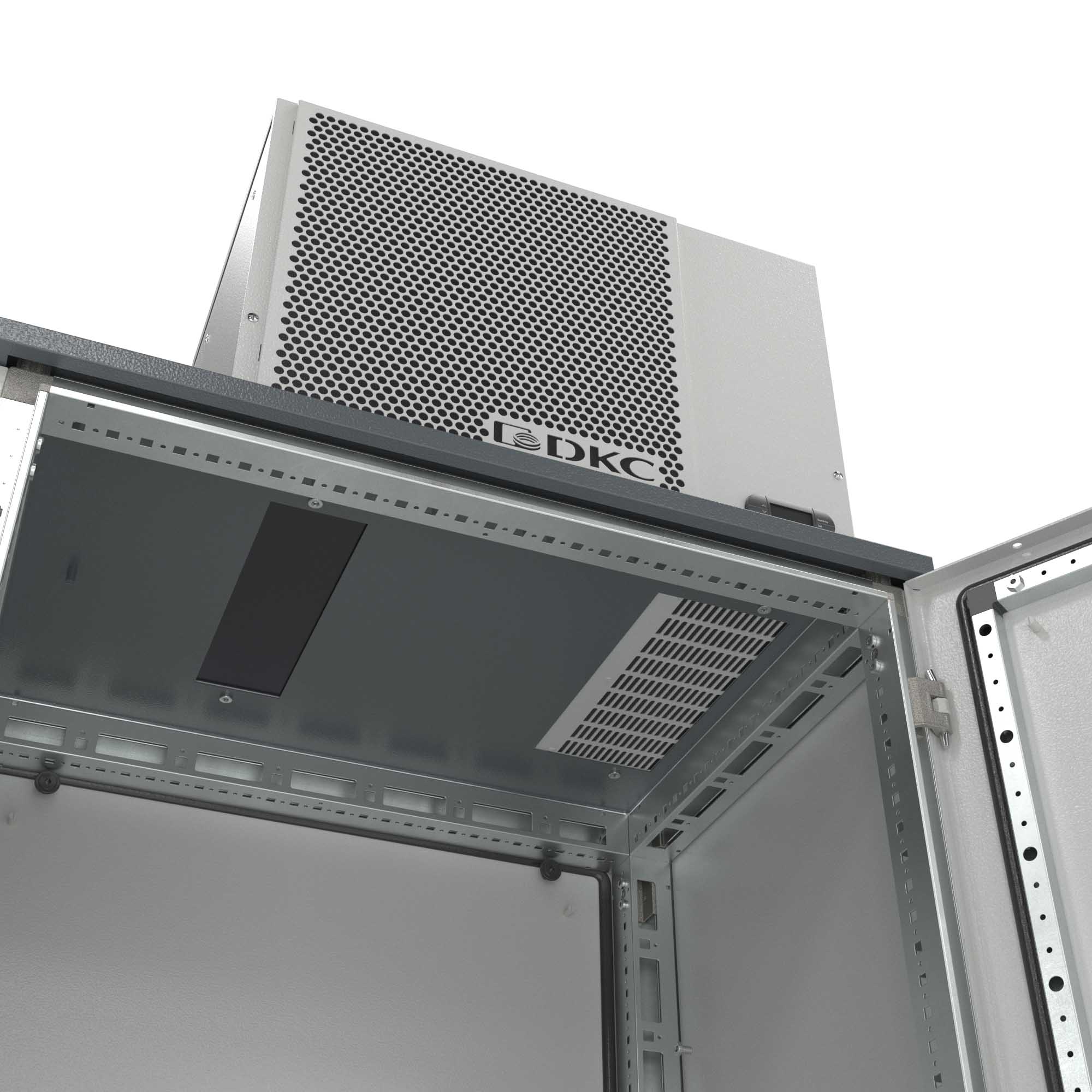

| Mounting type | Roof-mounted |
| External dimensions of cooler (W x H x D), mm | 570 x 310 x 300 |
| Temperature regulating range, ˚C | +25…+40 |
| Operating temperature range, ˚C | +20…+55 |
| Material | Steel sheet |
| Degree of protection, internal circuit | IP54 |
| Degree of protection, external circuit | IP34 |
| Weight, kg | 22 |
| Refrigeration power DIN 3168 (L35/L35), W | 530 |
| Refrigeration power DIN 3168 (L35/L50), W | 410 |
| Rated power consumption (L35/L35), kW | 280 |
| Rated current, A | 2 |
| Protective device, A | 6 |
| Start-up current, A | 11 |
| Noise level, dB(A) | 69 |
| Coolant type | R134a |
Drawings
| Seria | Name | DWG (dynamic.) | Eplan |
|---|---|---|---|
|
