| Width, mm | 41 |
| Height, mm | 125 |
| Depth, mm | 41 |
| With room temperature controller | Нет |
| With fan | Нет |
| Degree of protection (IP) | IP20 |
| Rated power, W | 50 |
| Operating voltage at AC 50 Hz, V | 110…250 |
| Operating voltage at AC 60 Hz, V | 110…250 |
| Operating voltage at DC, V | 110…250 |
| Voltage type | AC/DC |
| With digital indication | Нет |
| With hygrostat | Нет |
| Heating capacity, W | 50 |
| Rated operating voltage V, ~, Hz | 110…250 V, 1 p, 50/60 Hz; 110…250 V, DC |
| With blower | No |
| With plastic protective case | Yes |
| External dimensions of heater (W x H x D), mm | 41 x 125 x 41 |
| Operating temperature range, ˚C | –45...+70 |
| Storage temperature range, ˚C | –45...+80 |
| Heating element type | PTC |
| Degree of protection | IP20 |
| Weight, kg | 0.16 |
| Product type | Heater |
Accessories

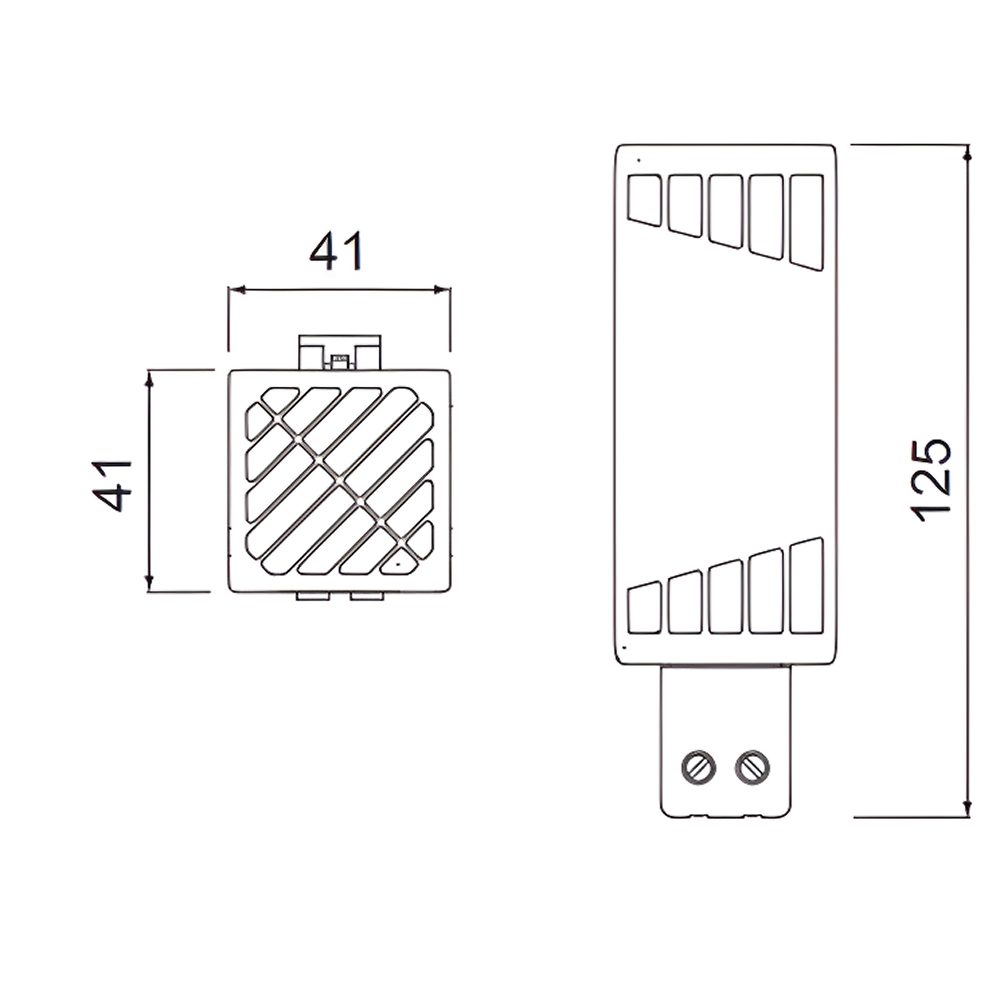

Drawings
| Seria | Name | DWG (dynamic.) | Eplan |
|---|---|---|---|
|
Climate Control System - "RAM klima"
|
|
||
|
Climate Control System - "RAM klima"
|
|
||
|
Climate Control System - "RAM klima"
|
|
Certificates
| Name | Document |
|---|---|
