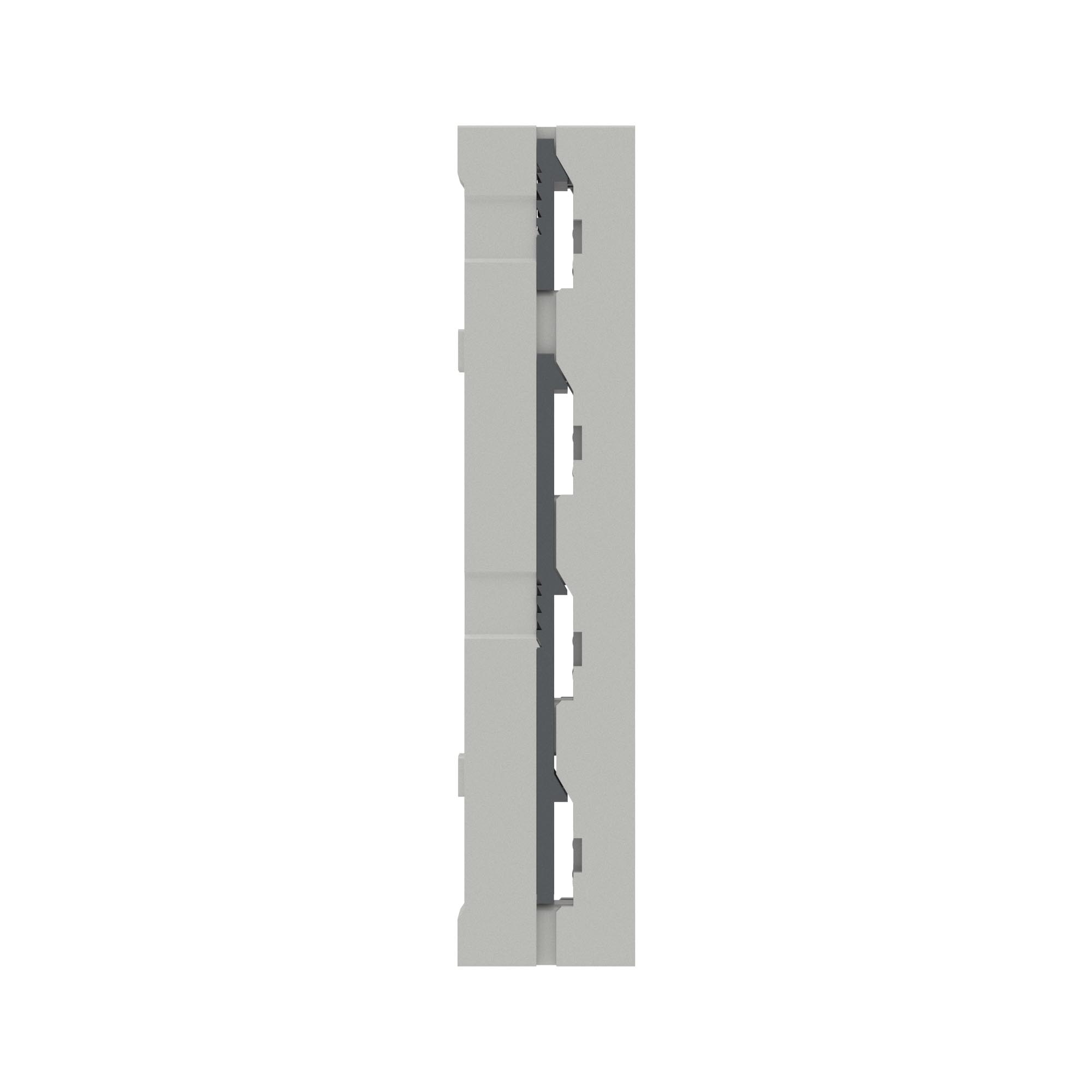

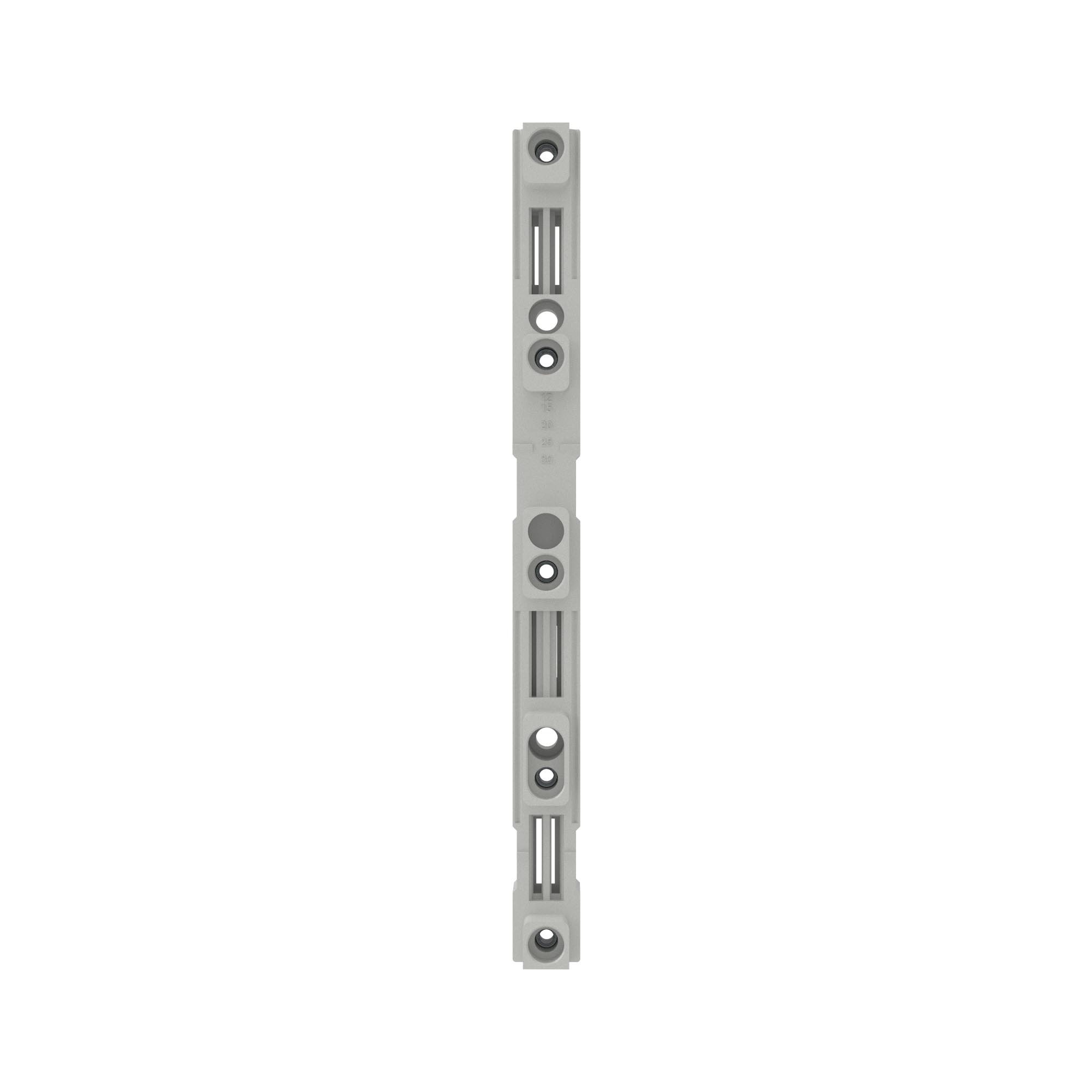

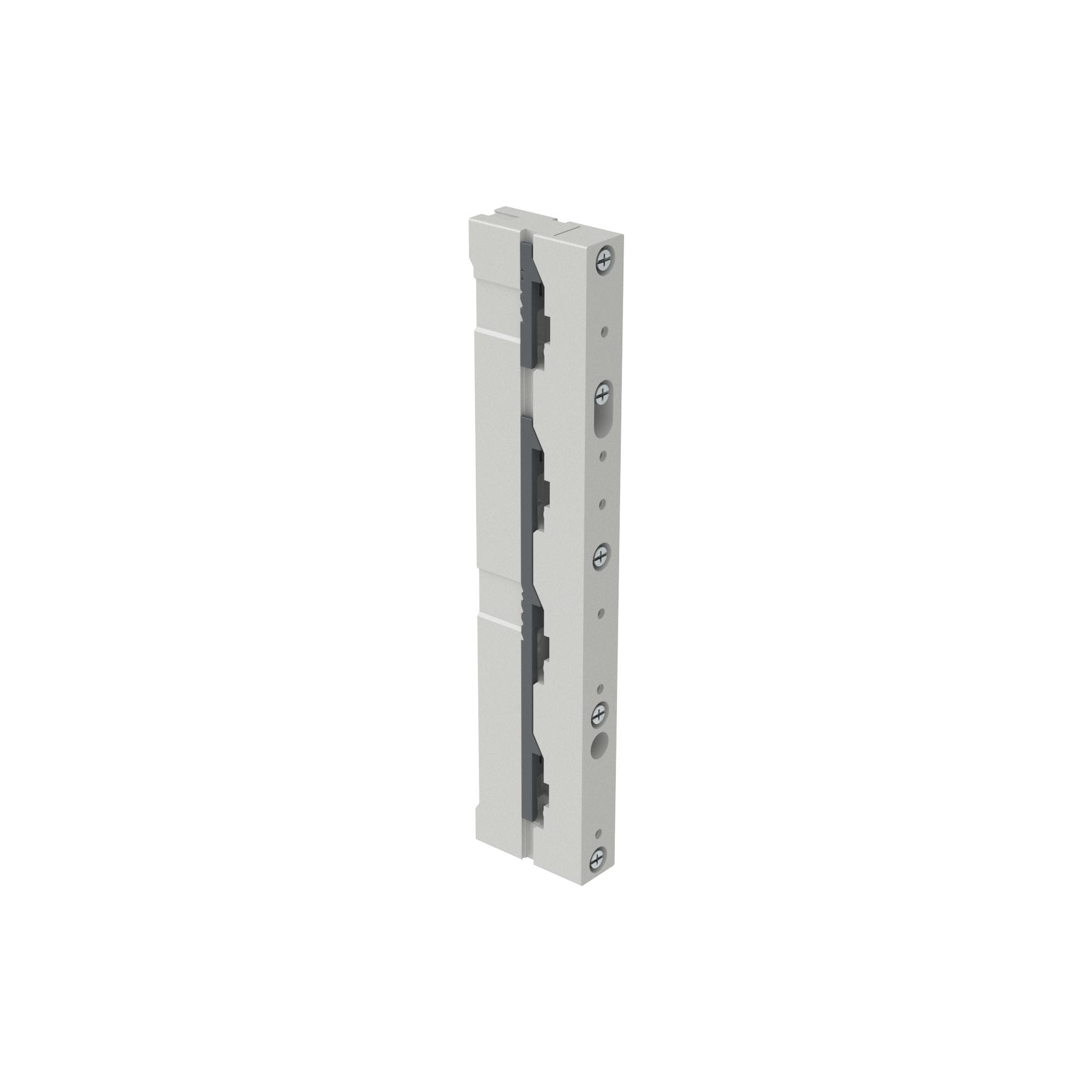

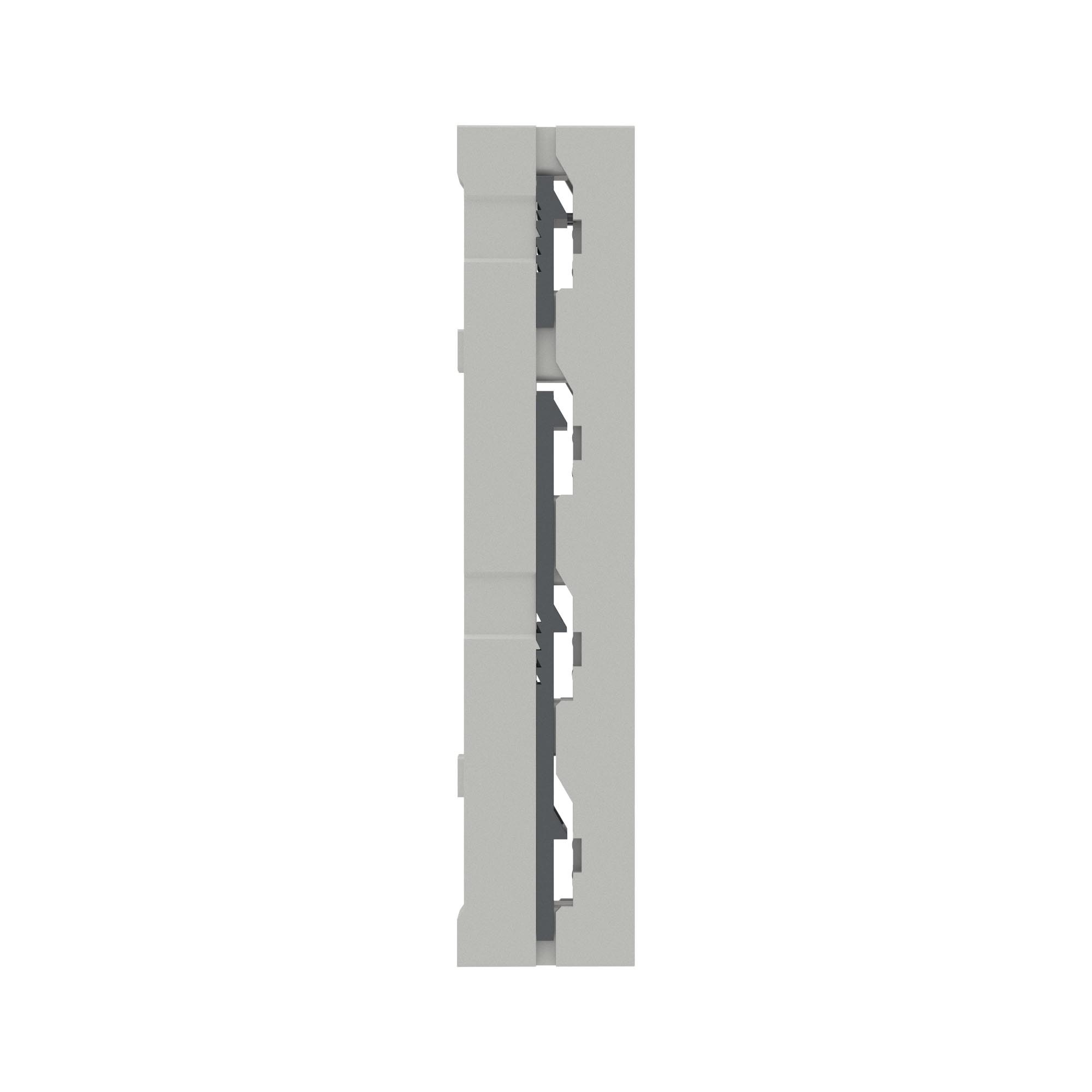

Busbar holder 12,15,20,25,30x5,10 4P 60mm
Code: R5BBH060154P
Busbar holder 12,15,20,25,30x5,10 4P 60mm
Code: R5BBH060154P
| Number of poles | 4 |
| Busbar distance, mm | 60 |
| Max. rated current, A | 630 |
| Product type | Main bus system insulator |
| Q'ty of busbars for poles | 1 |
| Number of poles | 4 |
| Distance between poles | 60 mm |
| Length | 246 mm |
| Width | 20,5 mm |
| Height | 51 mm |
| Material | PA66, GV30, V0 |
| Bolt width | 12, 15, 20, 25, 30 mm |
| Bus thickness | 5, 10 mm |
