Perforated ducts, blue RL6 80x60

Code: 01239RL
Perforated ducts, blue RL6 80x60
Perforated ducts, blue RL6 80x60

Perforated ducts, blue RL6 80x60

Code: 01239RL
Colour Blue
Width, mm 80
Halogen free No
Height, mm 60
Flexible No
Type of side wall Hole-/slot punching
Self-extinguishing Yes
Length, mm 2000
Type of fastening Bottom perforation
Current leak stable Yes
Useful cross section, mm² 4155
Distance of slots, mm 10
Slit width, mm 4
With cover Yes
Product type Perforated ducts series RL6, RL12,RL75
Accessories
Analogs
The accompanying goods

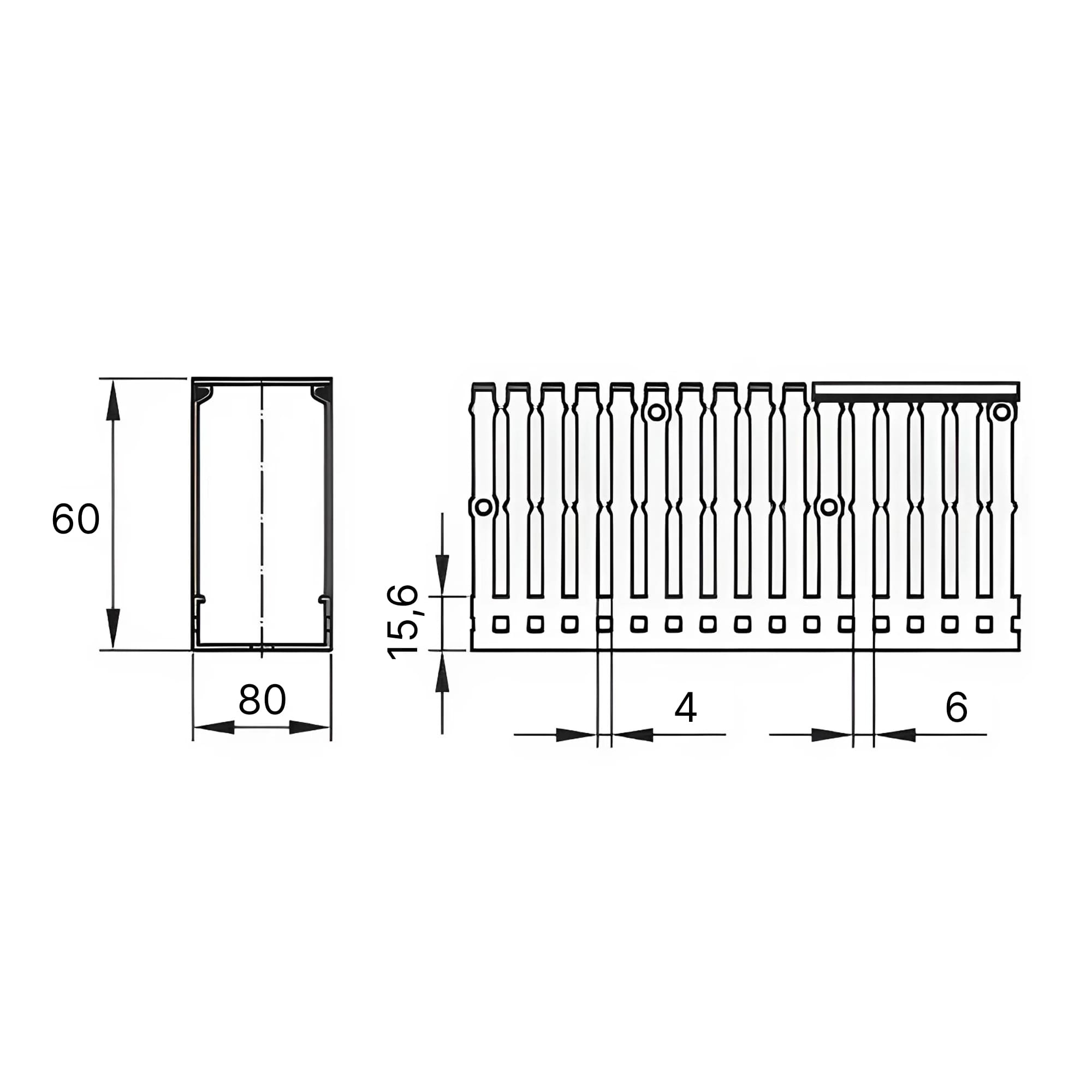

Drawings
Seria Name Eplan DWG STEP
Perforated ducts - "Quadro"
The System "Quadro"
RAR
27.23 Mb
Perforated ducts - "Quadro"
Perforated ducts, blue RL6 80x60
ZIP
245.74 Kb
ZIP
2.15 Mb
Certificates
Name Document
Quadro_Perforated straight elements - Exemption letter for fire safety certificates for accessories_1
PDF
1.22 MB
Quadro_Perforated ducts - Fire safety certificates for plastic ducts series Т1,Т1-Е,Т1-F,T1-EF,TD,TPD,DN-A,T1-N,T1-EN_1
PDF
3.87 MB
Quadro_Perforated ducts - Exemption letter Tool AN и 4I for electrical boxes
PDF
6.87 MB
Quadro_Perforated ducts - Fire safety certificates for electrical boxes
PDF
3.87 MB
Quadro_Perforated ducts - Certificate of conformity to GOST R for perforated duct seria RL
PDF
1.13 MB
Perforated ducts - Fire safety certificates for plastic ducts series RL6, RL12, RL75
PDF
2.39 MB
"Quadro"_Perforated ducts - Certificate of conformity to TÜV for perforated duct series RL6, RL12, RL75
PDF
1.59 MB
“Quadro”_Perforated ducts - EC Declaration of conformity signed for perforated duct series RL6, RL12, RL75
PDF
409.18 kB
“Quadro”_Perforated ducts - Certificate of conformity to EN for perforated duct series RL6, RL12, RL75
PDF
1.04 MB
“Quadro”_ Exemption Letter for perforated boxes
PDF
833.29 kB
