| Model | Rigid non-threaded |
| Outer diameter, mm | 25 |
| Inner diameter, mm | 22.6 |
| Material | Stainless steel |
| Surface mounted | Yes |
| Suitable for subsurface installation (screed) | Yes |
| Outdoor installation | Yes |

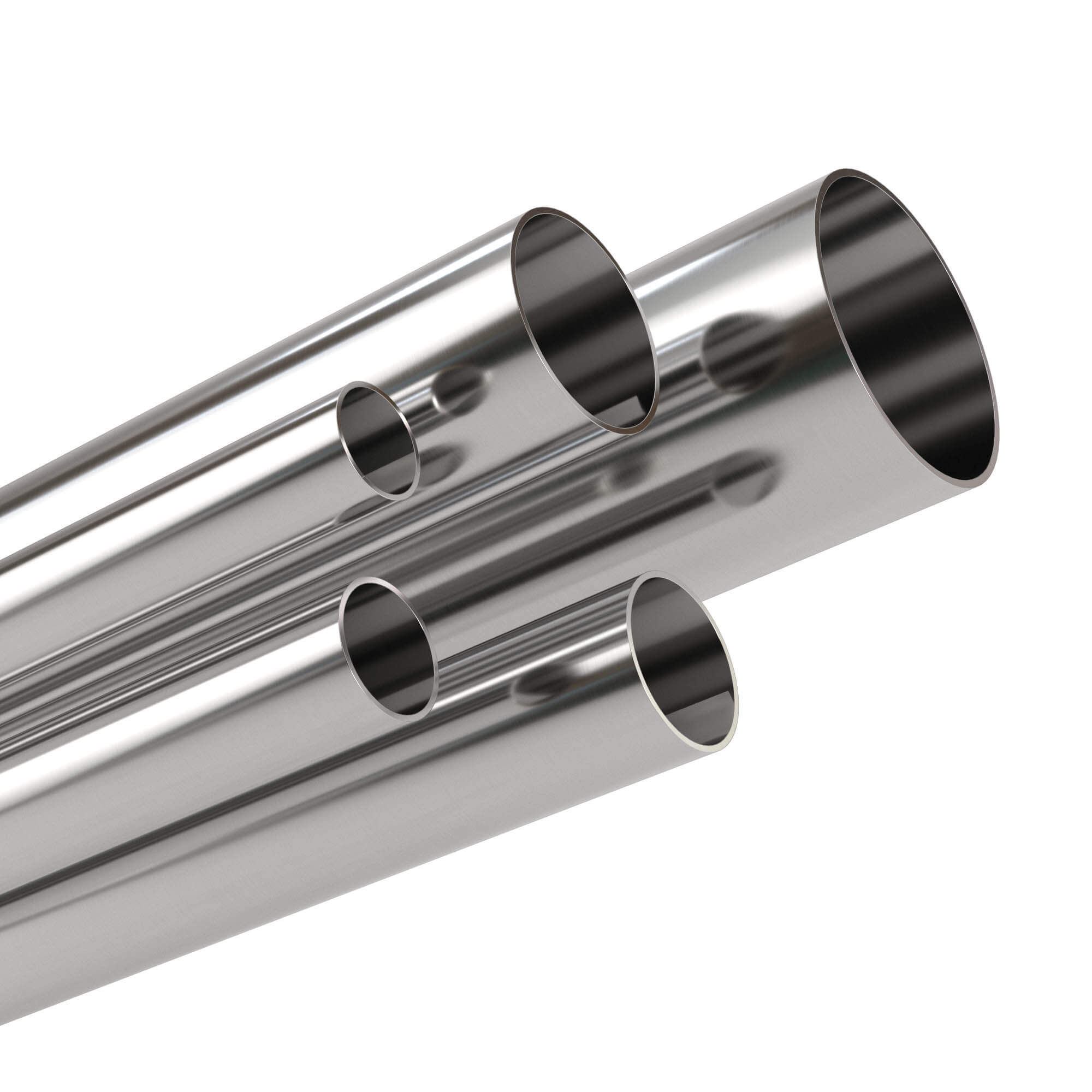

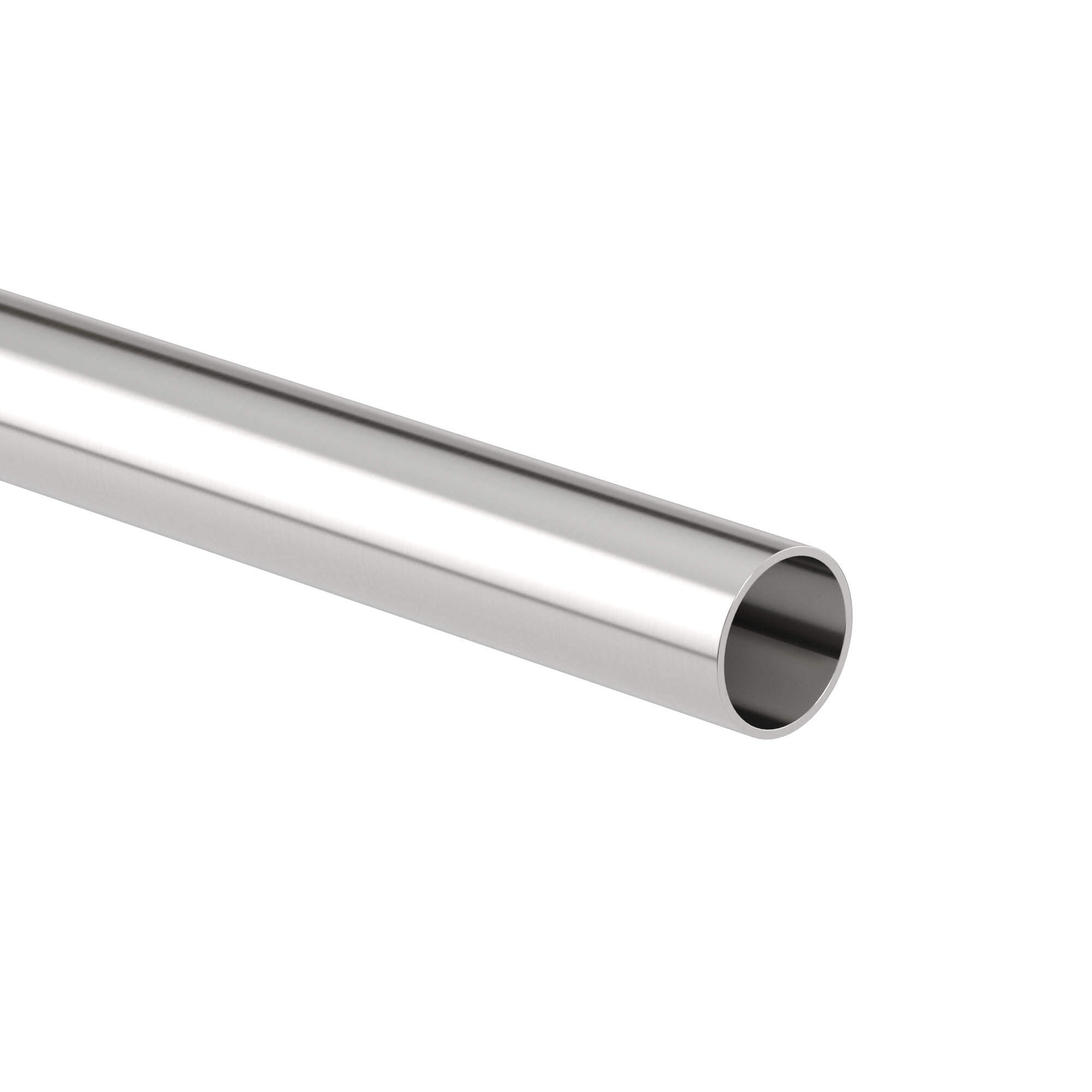

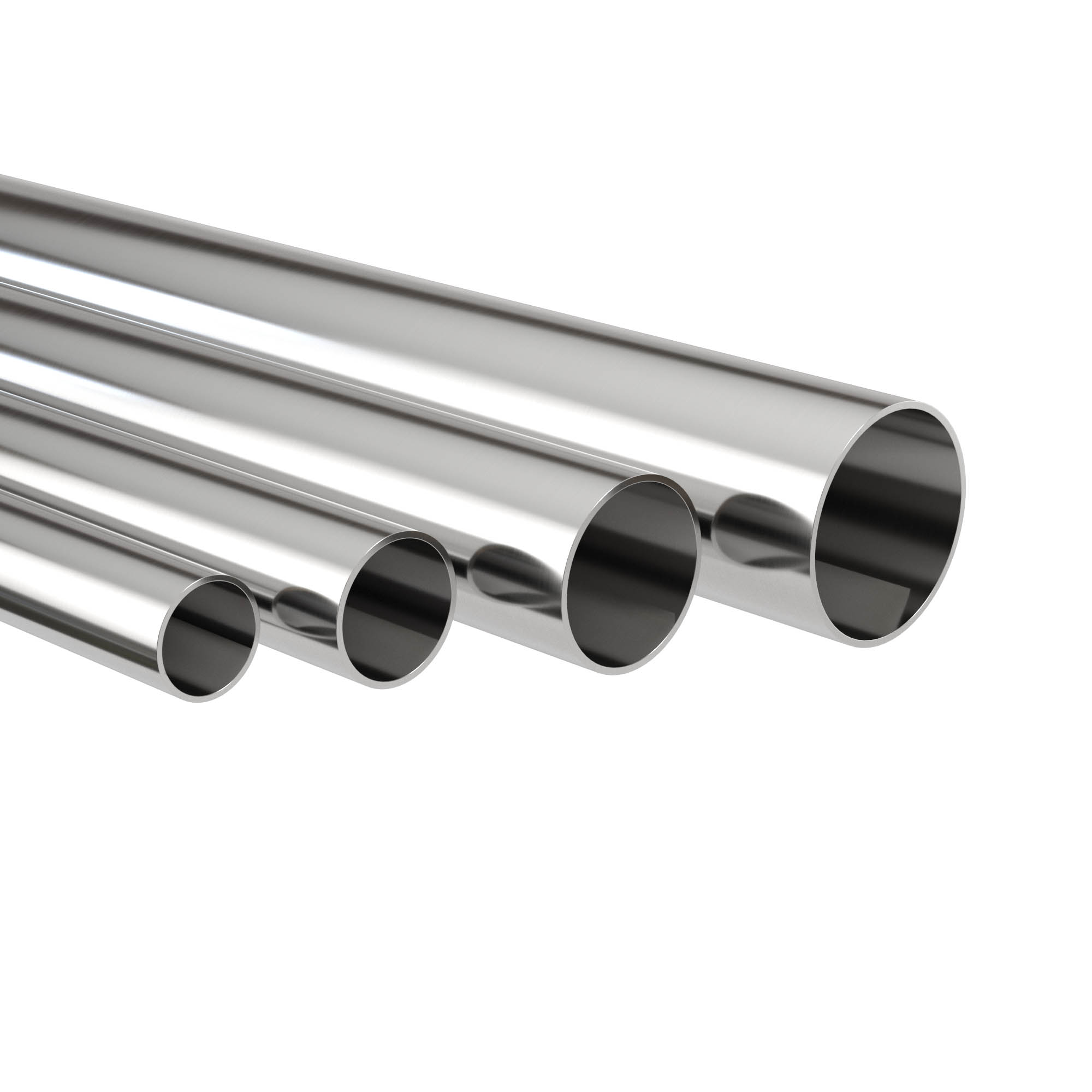

| Product type | Rigid stainless steel pipe AISI 304 |
| Material | Stainless steel AISI 304 |
| Length, mm | 3000 |
| Thickness, mm | 1,2 |
| Temperature of mounting, °C | -45 ... +150 °С |
| Ingress Protection rating, IP | IP66/IP67 |
| Temperature of operation, °C | -60 to +150 °С |
| Shock resistance, J | > 20 J at -25 °С |
| Climate version | U1, HL1, UHL1, UHL5, OM1 |
| Fire protection | non-combustible material |
| ТУ 2248-012-47022248-2009 | Technical specifications 4833-041-47022248-2014 |
| 3 года | 3 years |
| 15 лет | 3 years |
