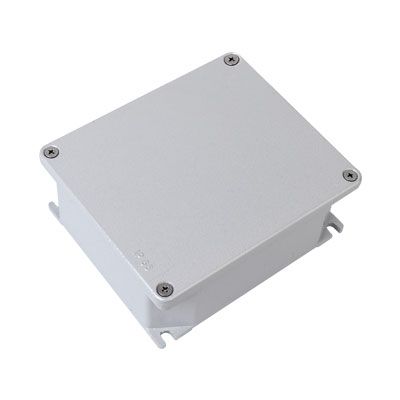

Aluminum alloy painted junction box with silicone seal , IP66/67, RAL9006, 154х129х58 3mm, t = -60

Code: 653S02

Aluminum alloy painted junction box with silicone seal , IP66/67, RAL9006, 154х129х58 3mm, t = -60

Code: 653S02
Mounting method Universal
Colour Grey
Width, mm 129
Depth, mm 58
Length, mm 154
Material Aluminium
Cover attachment Screwed
Degree of protection (IP) IP67
Shape Rectangular
Type of housing feed-through None
Surface protection Untreated
Product type Junction box with silicone seal
Material Aluminum Alloy UNI 5076
Color gray
Height, mm 142
Width, mm 166
Depth, mm 64
Temperature of mounting, °C -60 ... +70 °С
Temperature of operation, °C -60 ... +70 °С
Width (nominal), mm 154
Height (nominal), mm 129
Depth (nominal), mm 58
Ingress Protection rating, IP IP66/IP67
