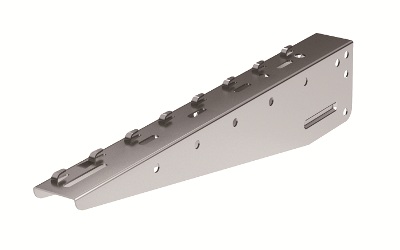

Bracket base for mesh trays BM 600 mm
Code: FC34186
Bracket base for mesh trays BM 600 mm
Code: FC34186
Colour | Light grey |
Width, mm | 44 |
Model | Profile console |
Height, mm | 80 |
Surface protection | Galvanic/electrolytic zinc plated |
Length, mm | 600 |
Material | Steel |
Load bearing capacity, kN | 1470 |
Stainless steel, pickled | Yes |
Suitable for circuit integrity | Yes |
Material quality | Steel galvanised |
Product type | Brackets |
For trays width (max.) | 600 mm |
Material | Pre-galvanized |
Thickness | 1.5 mm |

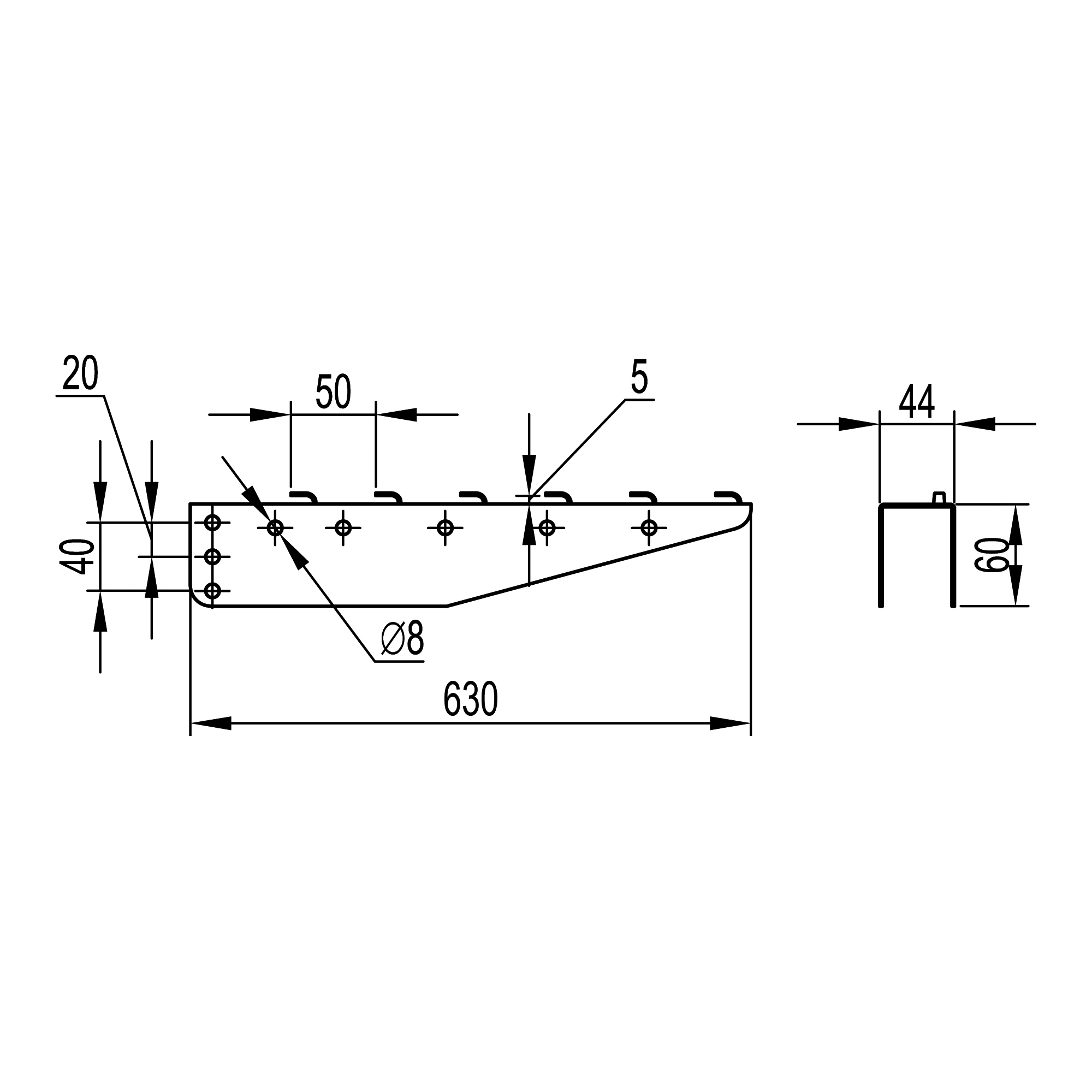

Drawings
Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit |
---|---|---|---|---|
Metal wire mesh trays - "F5 Combitech"
|
|
|
||
Metal wire mesh trays - "F5 Combitech"
|
|
|
||
Metal wire mesh trays - "F5 Combitech"
|
|
|
