| Colour | Grey |
| Width, mm | 24.75 |
| Model | Single |
| Height, mm | 83.5 |
| Flexible | No |
| Number of conductors (without earthing) | 2 |
| Number of poles | 2 |
| Length, mm | 3000 |
| Degree of protection (IP) | IP55 |
| Rated voltage at AC 50 Hz, V | 400 |
| Number of tap-off units | 1 |
| Rated current at AC 50 Hz, A | 25 |
| Length busbar trunk, mm | 3000 |
| Series | Lightech |
| Color | gray |
| Modification | Single |
| Degree of protection | IP55 |
| Rated voltage | 400V |
| Phase conductor material | copper |
| In | 25A |
| Element type | Straight element |
| Busbar's number of conductors | 2P |
| Tap-off units quantity | 1+0 |
| Height | 60 mm |
| Width | 20 mm |
| Length | 3000 mm |
Accessories

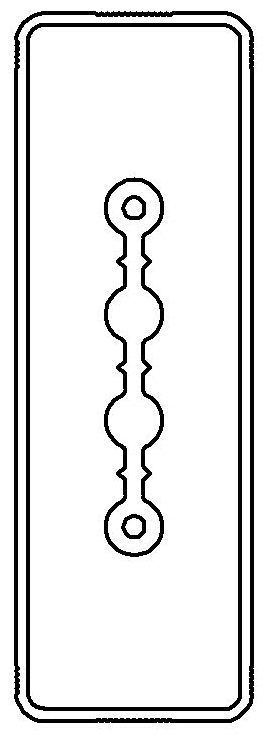

Drawings
| Seria | Name | DWG (dynamic.) | DWG |
|---|---|---|---|
|
Busbars - «Hercules»
|
|
||
|
Busbars - «Hercules»
|
|
Certificates
| Name | Document |
|---|---|
