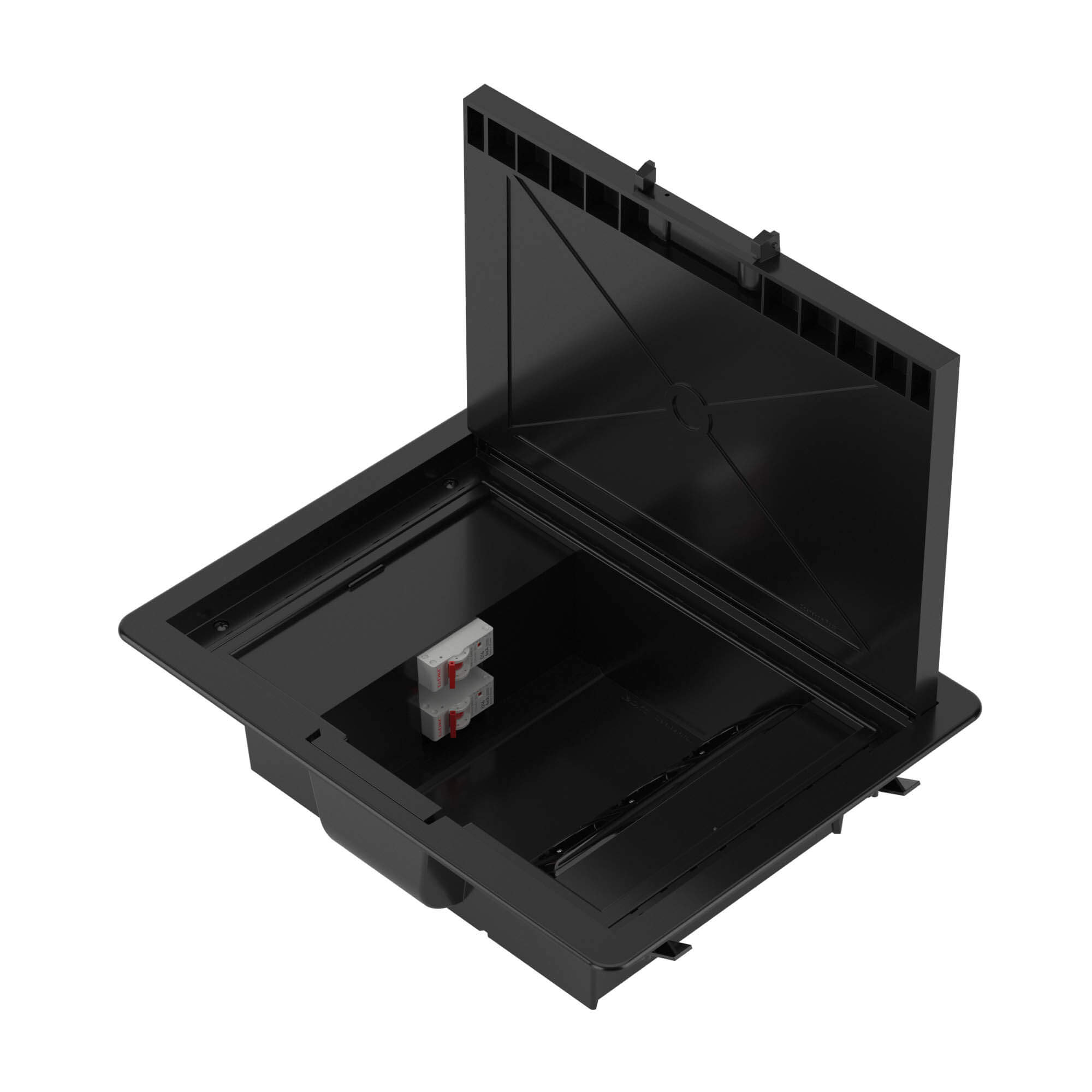

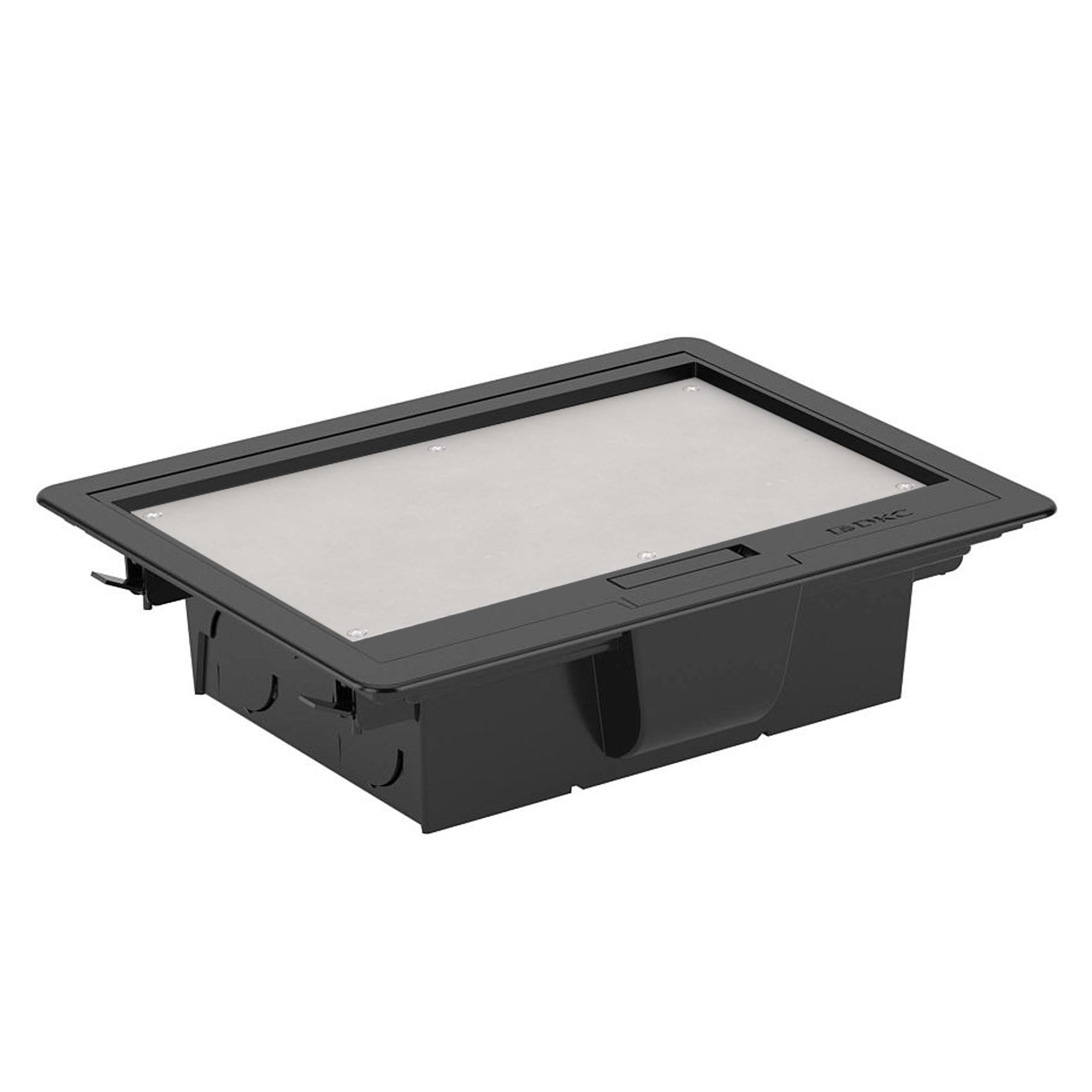

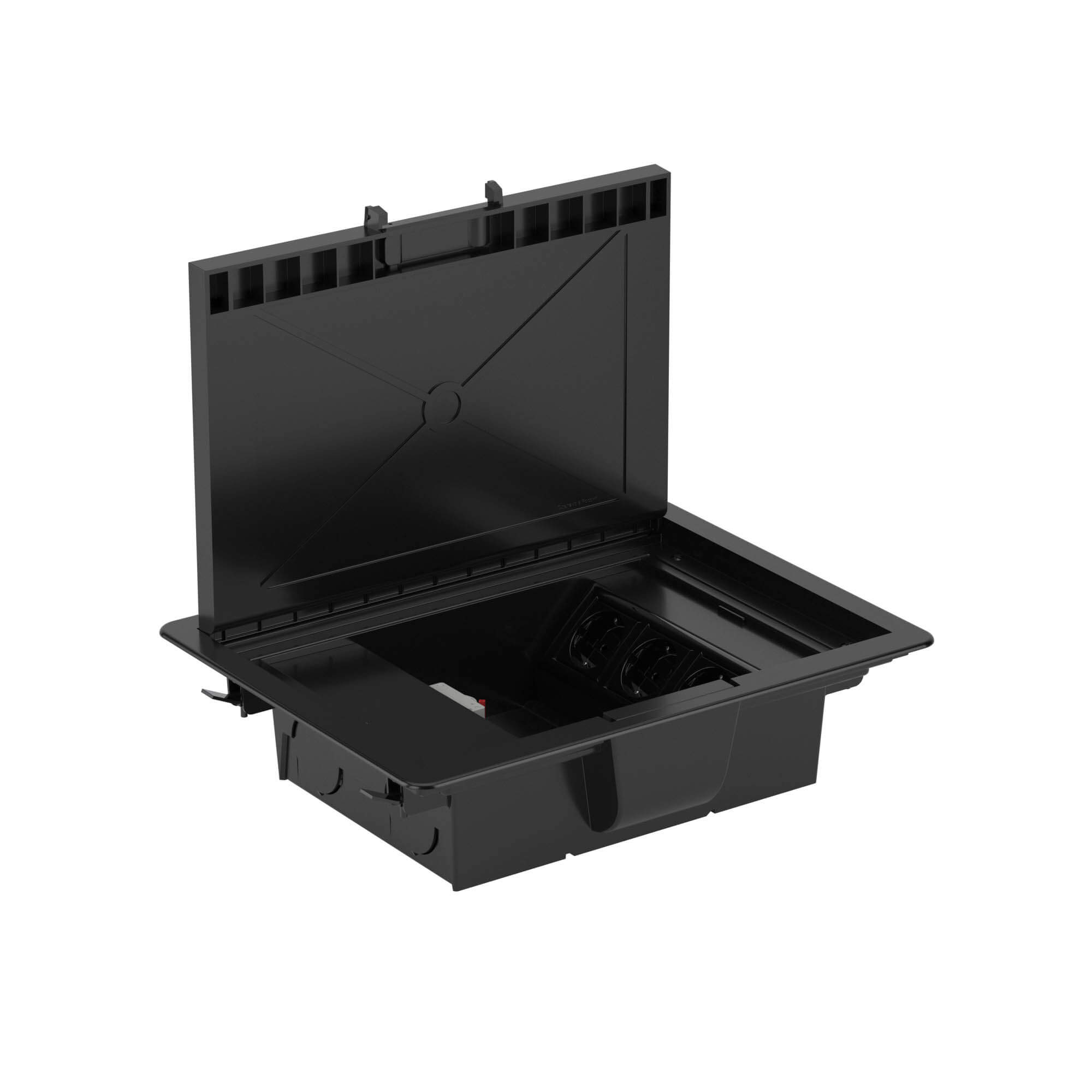

Underfloor box 12 mod., black RAL 9005

Code: 88012
Underfloor box 12 mod., black RAL 9005
  • To ask a question
Colour Black

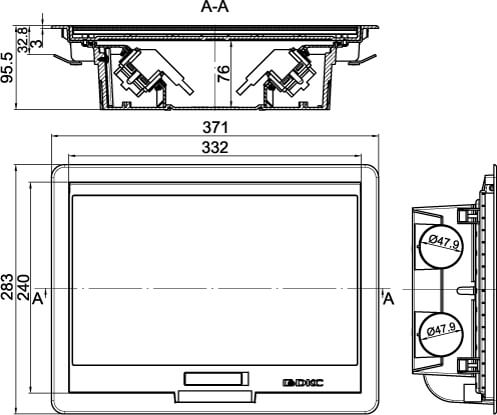

Width outside dimension, mm 284
Width built-in dimension, mm 255
Length external dimension, mm 372
Length built-in dimension, mm 345
Suitable for wet cleaning Yes
Depth of flooring recess, mm 95.5
Suitable for sub-floor duct Yes
Suitable for hollow floor Yes
Suitable for double floor build in Yes
RAL-number 9005
Temperature of mounting, °C -25°С ° +60°С
Ingress Protection rating, IP IP40
Temperature of operation, °C -5°С ° +60°С
Temperature of operation, °C +60°С
Climate version UHL4
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type Under floor box
