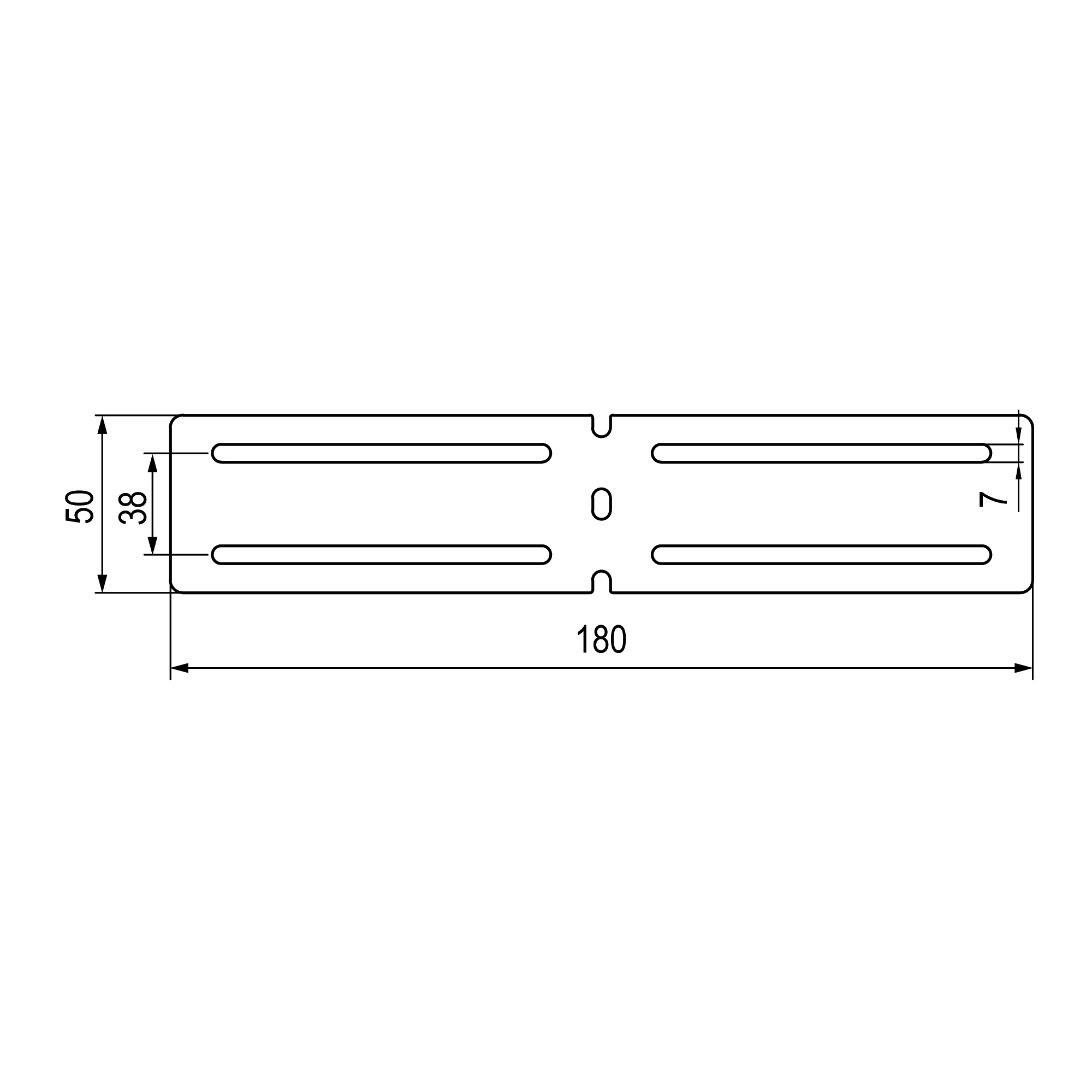

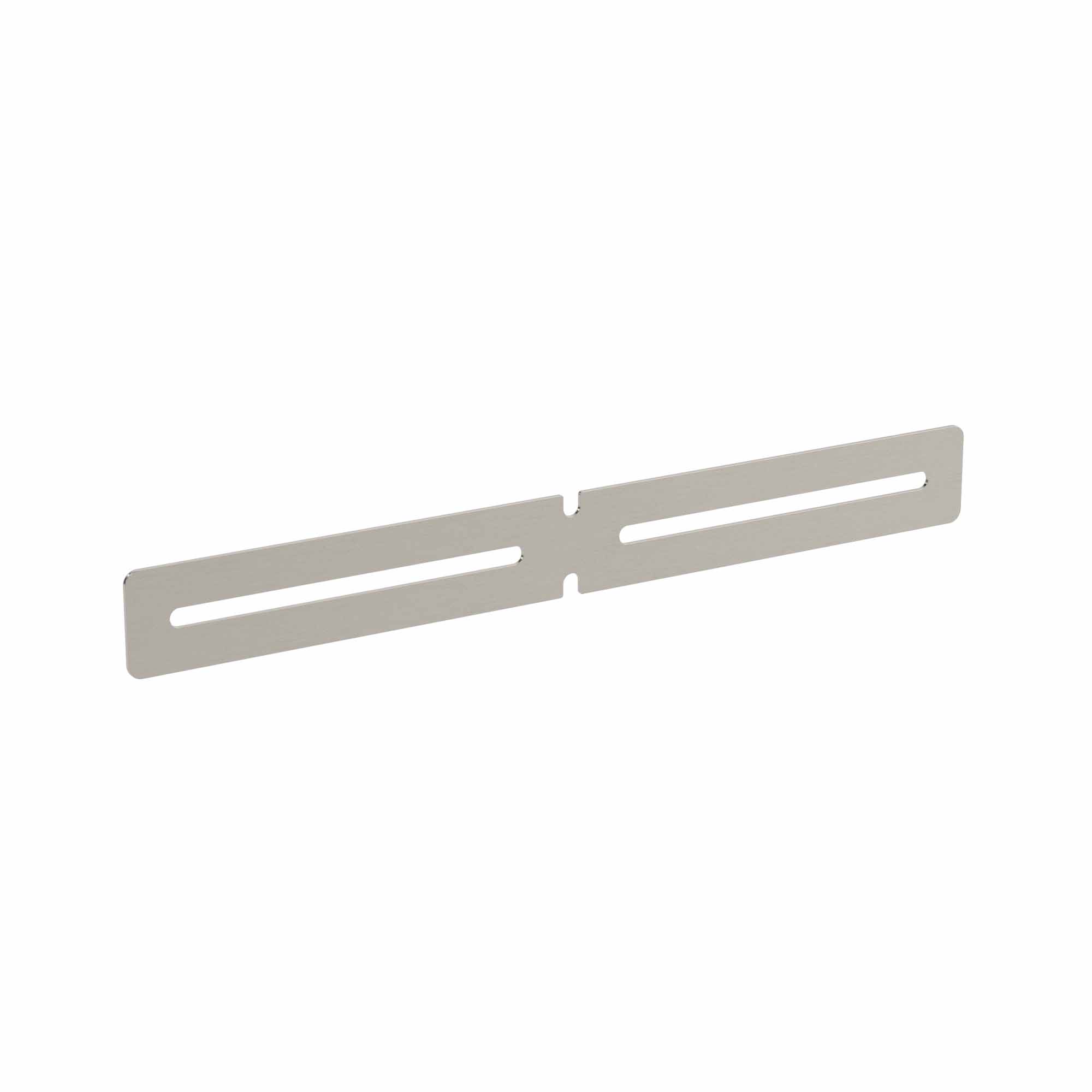

Splice angle horizontal H - 50, INOX 316L

Code: GPH00500I
Splice angle horizontal H - 50, INOX 316L
Splice angle horizontal H - 50, INOX 316L

Splice angle horizontal H - 50, INOX 316L

Code: GPH00500I
Model Horizontal
Surface protection Bare
Material quality GRP (Glass fiber reinforced plastic)
Material Plastic
Type of fastening Screw mounting
Plate height, mm 50
Stainless steel, pickled Yes
Drawings
Seria Name DWG (dynamic.) Autodesk Revit
Fiberglass trays - " G5 Combitech"
The system of GRP cable trays "G5 Combitech"
ZIP
16.42 Mb
Fiberglass trays - " G5 Combitech"
The system of GRP cable trays "G5 Combitech"
ZIP
11.67 Mb
Certificates
Name Document
Certificate of conformity to seismic impact resistance for system of cable trays "G5 Combitech" and fastening system "M5 Combitech"
PDF
907.21 kB
Certificate of conformity for fiberglass tray system "G5 Combitech" (TU 049)
PDF
730.70 kB
Certificate of conformity to seismic resistance for fiberglass tray system "G5 Combitech"
PDF
506.02 kB
Certificate of conformity to fire safety to GOST R 53313-2009 for the Fiberglass tray system
PDF
331.97 kB
