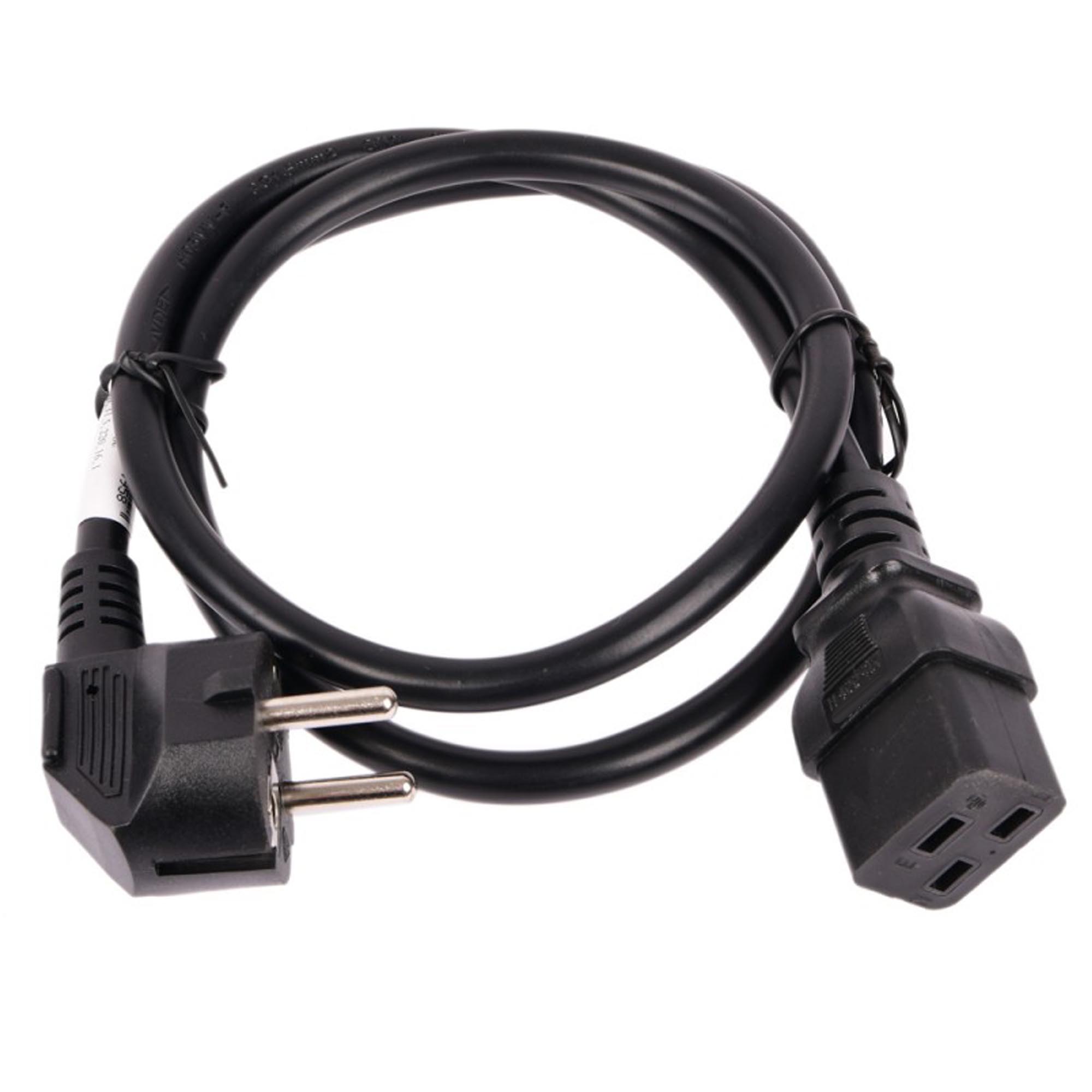

Power cord DKC, Schuko - IEC320 C19, 3.0m, 3x2.5mm
Code:
R5CORDS930
Power cord DKC, Schuko - IEC320 C19, 3.0m, 3x2.5mm
Code:
R5CORDS930
Connection 1 | CEE plug |
Outer diameter approx., mm | 8.3 |
Nominal cross section conductor, mm² | 2.5 |
Connection 2 | Cold device plug (IEC 320) |
Length, m | 3 |
Material outer sheath | Polyvinyl chloride (PVC) |
Protective conductor | Yes |
Number of cores | 3 |
Spiralized cable | No |
Nominal current, A | 20 |
Frequency, Hz | 50 |
Colour outer sheath | Black |
Nominal voltage, V | 230 |
Degree of protection (IP) | IP20 |
Product type | Power Cable |
Sockets type | IEC 320 C19 |
Plug type | Schuko |
Cable Length | 3.0m |
Cross-sectional area of the wire | 3x2.5 mm² |
Amperage | 16A |
Certificates
Name | Document |
---|---|
