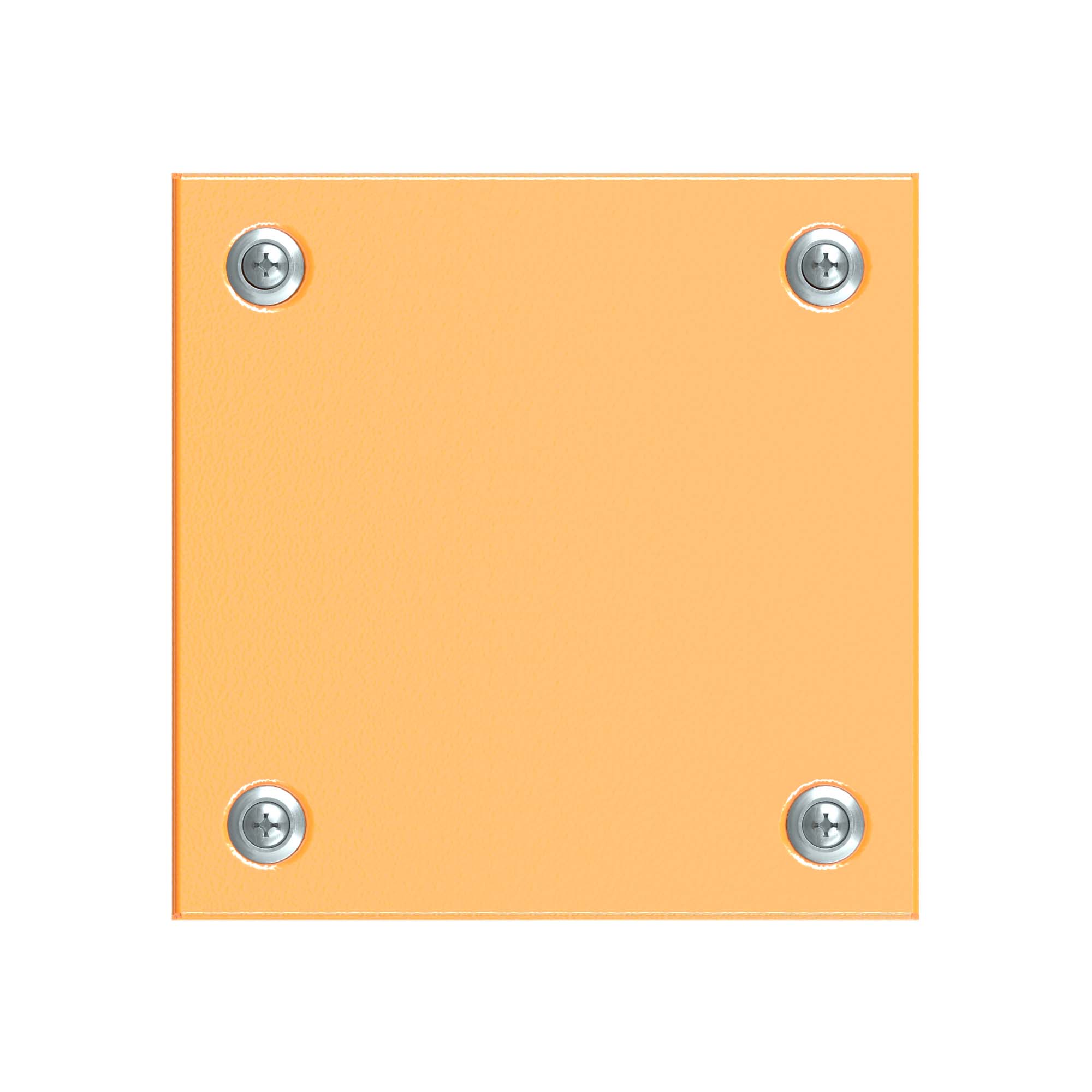

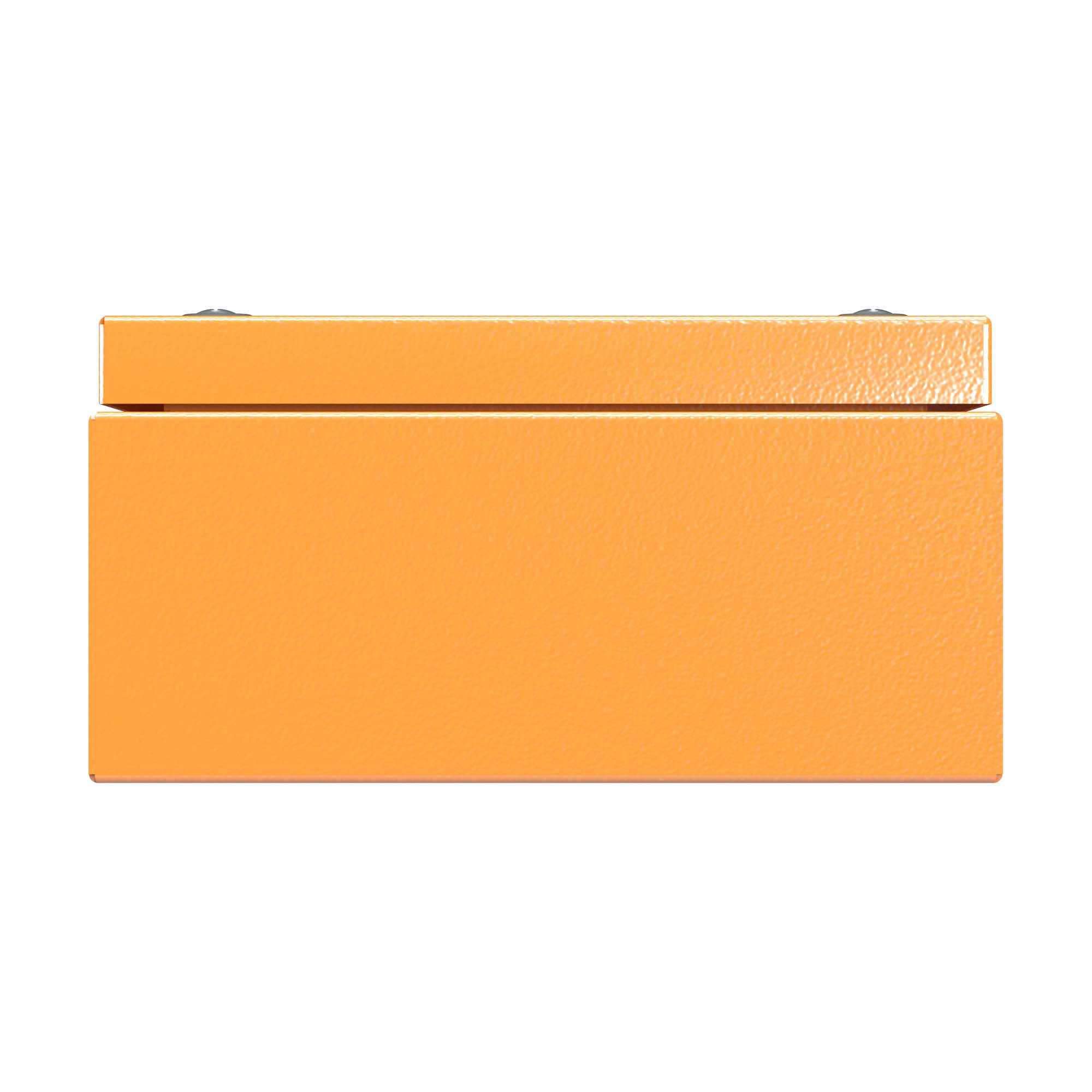

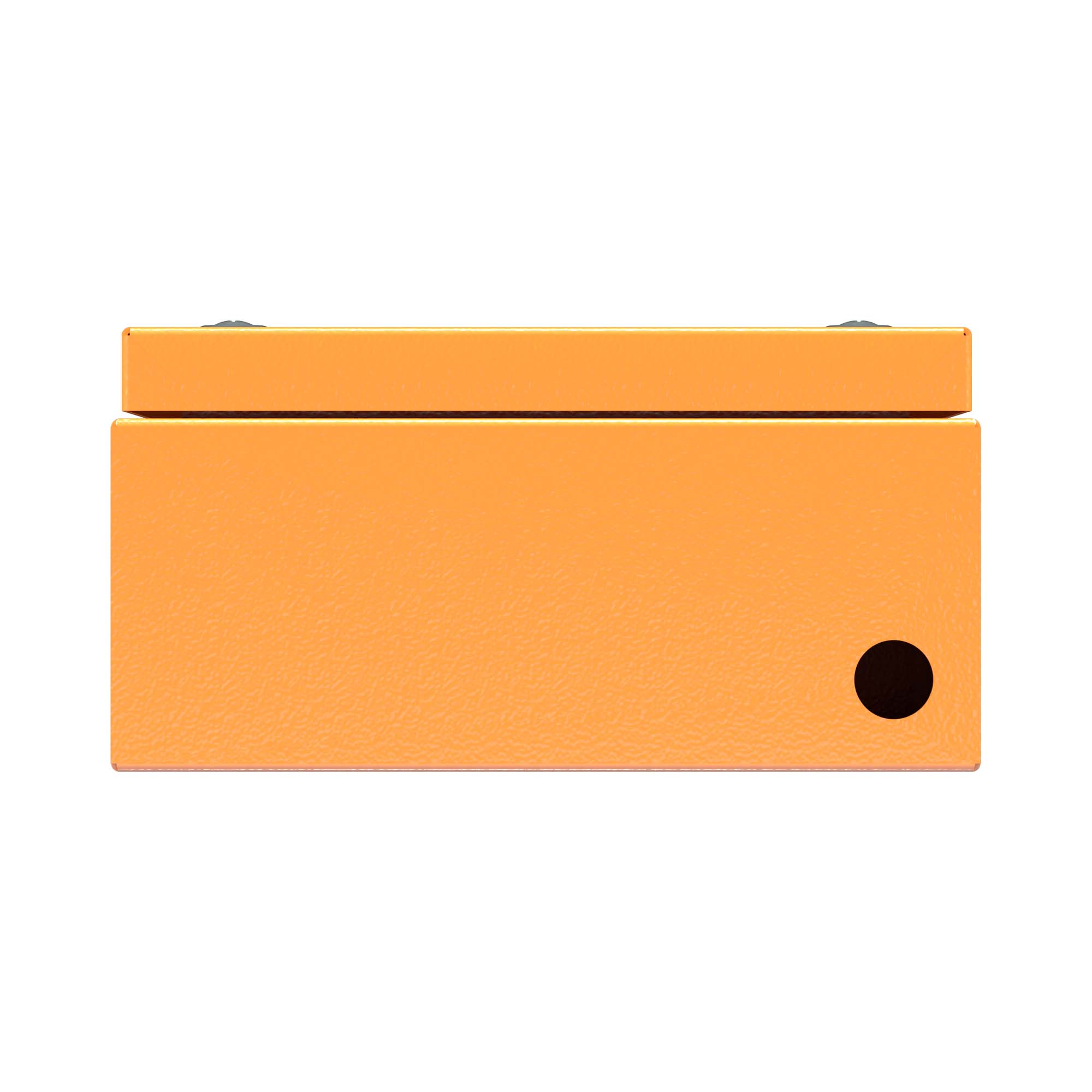

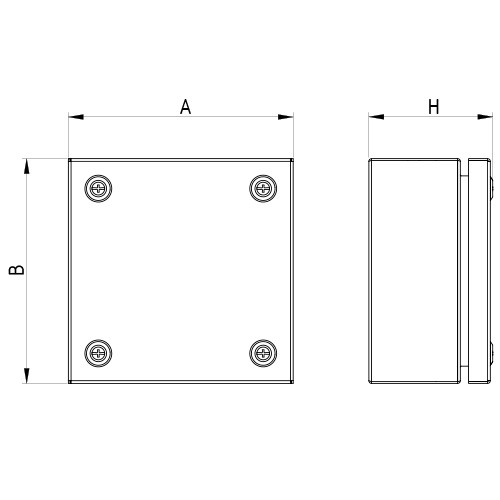

FS FireBox 150х150х80 mm, IP66, smooth walls, steel, 6p, 450V, 32A, 10 mm2
Code: FSK30610
FS FireBox 150х150х80 mm, IP66, smooth walls, steel, 6p, 450V, 32A, 10 mm2
Code: FSK30610
Mounting method | Universal |
Colour | Orange |
Width, mm | 150 |
Halogen free | Yes |
Depth, mm | 80 |
Surface protection | Untreated |
Rated insulation voltage Ui, V | 450 |
Length, mm | 150 |
Sealable | Yes |
Material | Steel |
Explosion-tested version | Yes |
Cover attachment | Screwed |
Max. conductor cross section, mm² | 10 |
With screening | Yes |
Weatherproof | Yes |
Degree of protection (IP) | IP66 |
Inlet from the rear | Yes |
For Ex-zone gas | None |
Tackable | Yes |
For Ex-Zone dust | None |
Shape | Rectangular |
Type of housing feed-through | Thread |
Equipped with | Mounting plate |
Number of inlets | 8 |
Circuit integrity | None |
Operational temperature, °C | -60...40 |
Material | Steel |
Q'ty of poles | 6p |
Wire cross section | 0,5–10,0 sq. mm |
Availability of cable entries | No |
Diameter of the inputs | 32 mm |
Q'ty of inners | 6 pcs |
Current | 32А |
от -25°С до +60°С | From - 60 to +40 |
Degree of protection | IP66 |
Functionality | 90 min |
