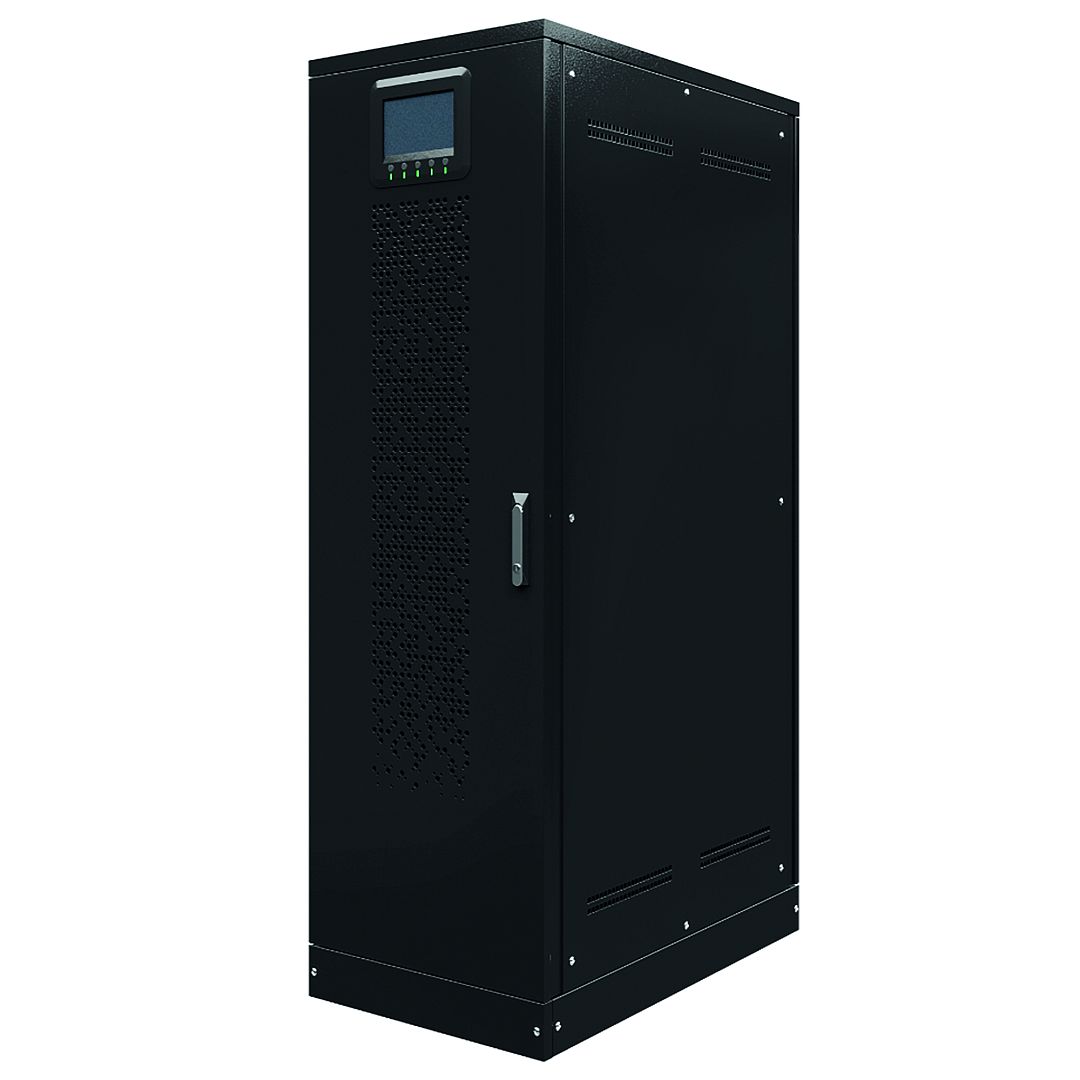

3-phase UPS, 100 kVA, without batteries, inbuilt SNMP adapter
Code: EXTRATT100A0S
3-phase UPS, 100 kVA, without batteries, inbuilt SNMP adapter
Code: EXTRATT100A0S
Removed from the product range
| Width, mm | 560 |
| Height, mm | 1800 |
| Depth, mm | 940 |
| Weight, kg | 320 |
| Construction type | Free standing model |
| Input voltage, V | 320...460 |
| USV- technology | Online |
| Output effective power, W | 100000 |
| SNMP | Yes |
| Number of phases secondary | 3 |
| Output power factor | 1 |
| Overall efficiency, % | 96.5 |
| Efficiency in eco-mode, % | 98 |
| Output apparent power, VA | 100000 |
| Phase | Three-Phase |
| Modifications of Output sockets | Terminals |
| Parallel mode | max. 6 |
| Cold start | Yes |
| Auto-restart | Yes |
| Interface | EPO, RS-232, AS400, SNMP, RS-485 (Modbus) |
| External Battery | Yes |
| Service Bypass | Yes |
| Rated output power | 100 kVA |
