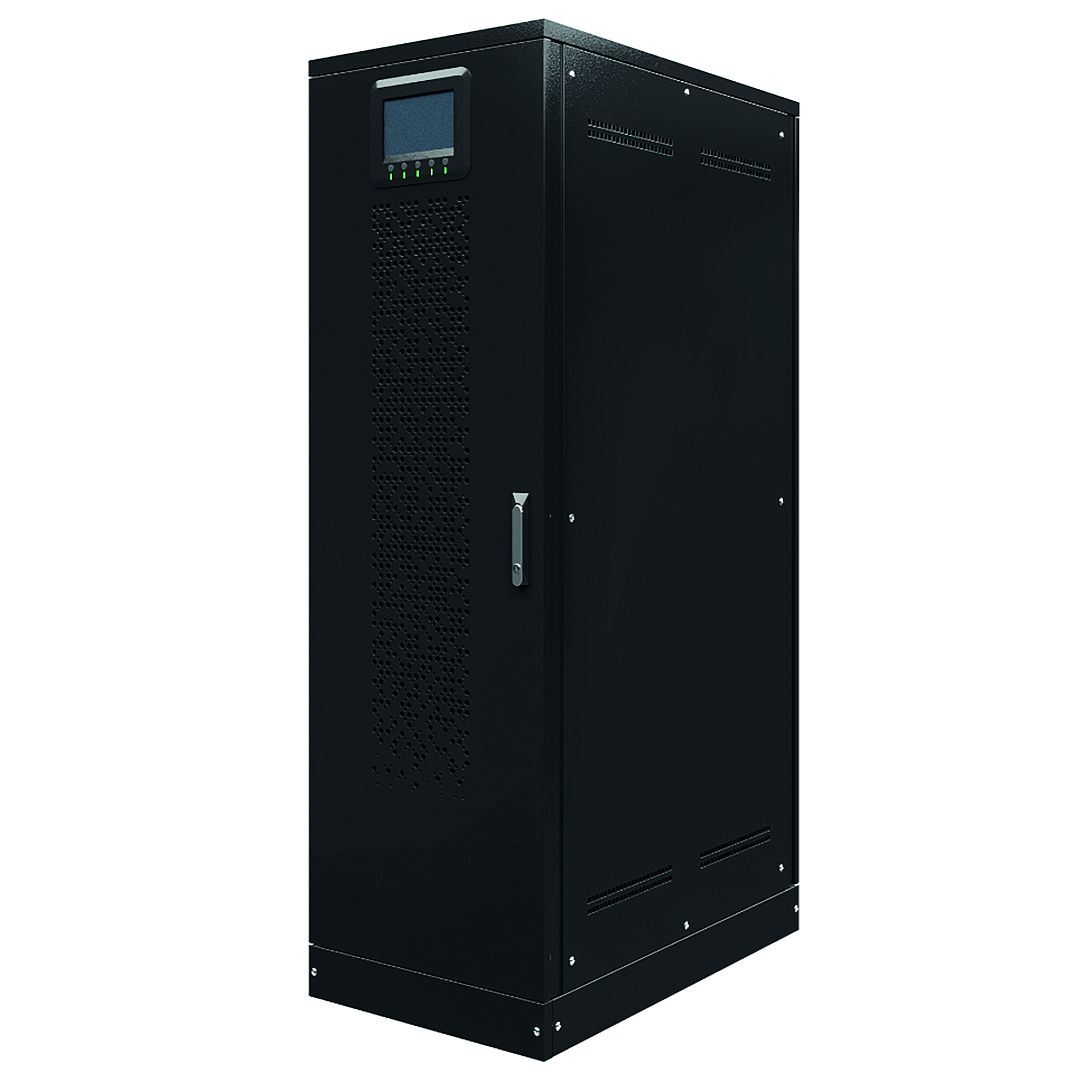

Tri-phase UPS, 125 kVA, w/o battery

Code: EXTRATT125A0
  • To ask a question
Width, mm 560
Height, mm 1800
Depth, mm 940
Weight, kg 360
Construction type Free standing model
Input voltage, V 320...460
USV- technology Online
Output effective power, W 125000
Standard for interfaces RS-232
Built-in battery No
Number of phases secondary 3
Output power factor 1
Overall efficiency, % 96.5
Efficiency in eco-mode, % 98
Output apparent power, VA 125000
Phase Three-Phase
Modifications of Output sockets Terminals
Parallel mode max. 6
Cold start Yes
Auto-restart Yes
Interface EPO, RS-232, AS400, SNMP, RS-485 (Modbus)
External Battery Yes
Service Bypass Yes
