Tube PP flexible corrugated, Ø 50 mm, heavy version without pull, 15 m,blue color
Code: 10550
Tube PP flexible corrugated, Ø 50 mm, heavy version without pull, 15 m,blue color
Code: 10550
Colour | Blue |

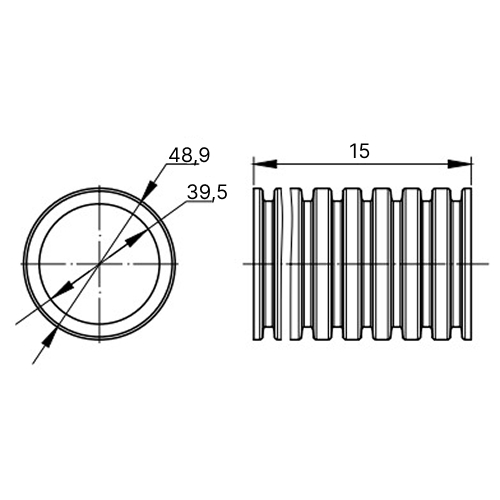

Outer diameter, mm | 48.9 |
Inner diameter, mm | 39.5 |
Compressive strength, N | 320 |
Operational temperature, °C | -40...105 |
Bending radius, static, mm | 150 |
Flame accelerating | No |
Material | Polypropylene (PP) |
Tensile strength, N | 200 |
Nominal diameter, mm | 50 |
Nominal size in inch | 2 inch |
Degree of protection (IP) | IP55 |
Bending strength | Flexible |
Sheathing material | Not sheathed |
UV resistant | No |
With draw wire | No |
Length | 15000 mm |
8 диаметров мм | 150 mm |
-5°С ... +60°С | -25°С ... +60°С |
Ingress Protection rating, IP | IP55 |
от -25°С до +60°С | from -40°С to +105°С |
Shock resistance, J | >1 |
Cord for wires | No |
Fire protection | It is not spread combustion (GOST R 53313-2009) |
Series | Heavy |
ТУ 2248-012-47022248-2009 | Technical specifications 3491-010-47022248-2003 |
3 года | 2 years |
15 лет | 15 years |
Product type | Tube PP flexible corrugated |
