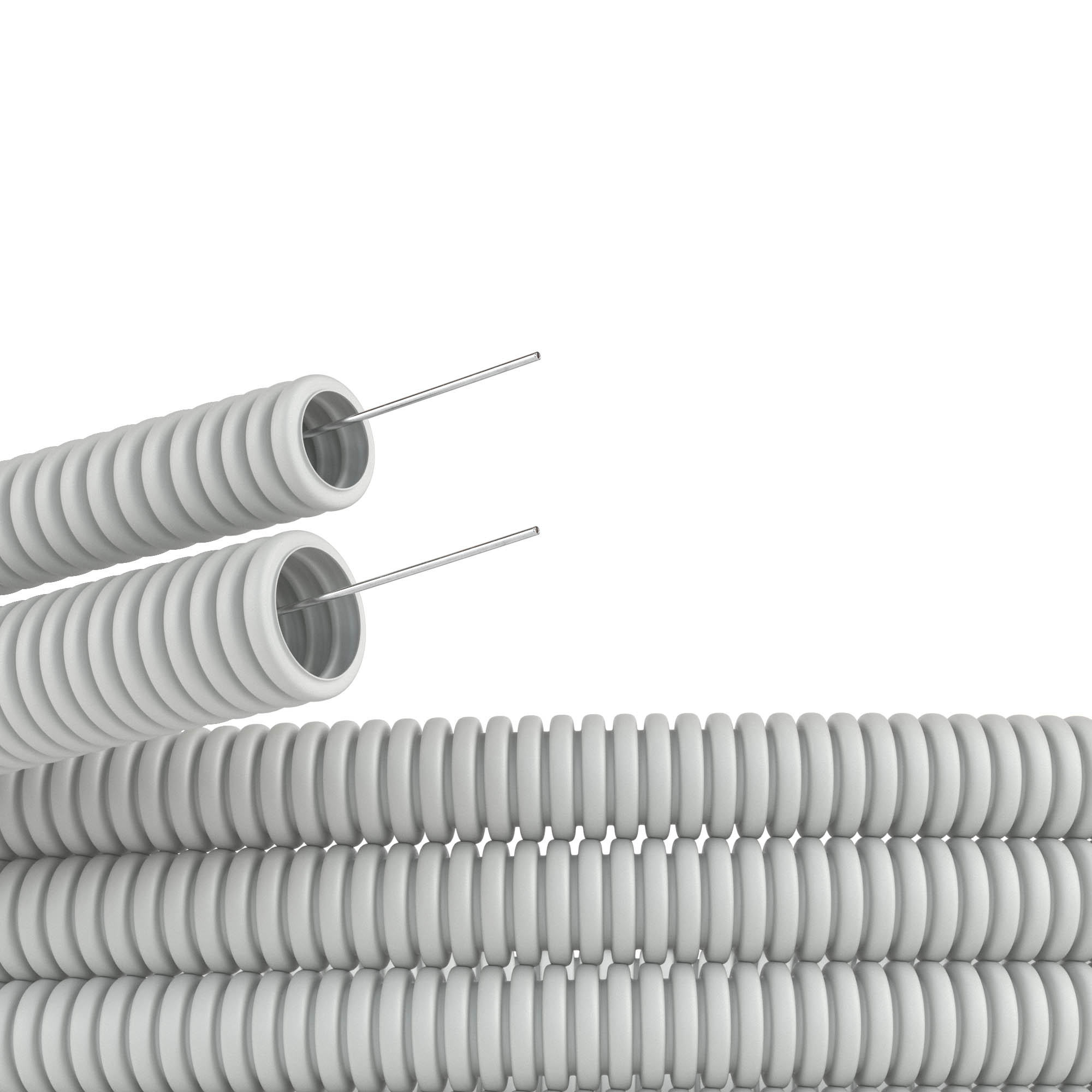

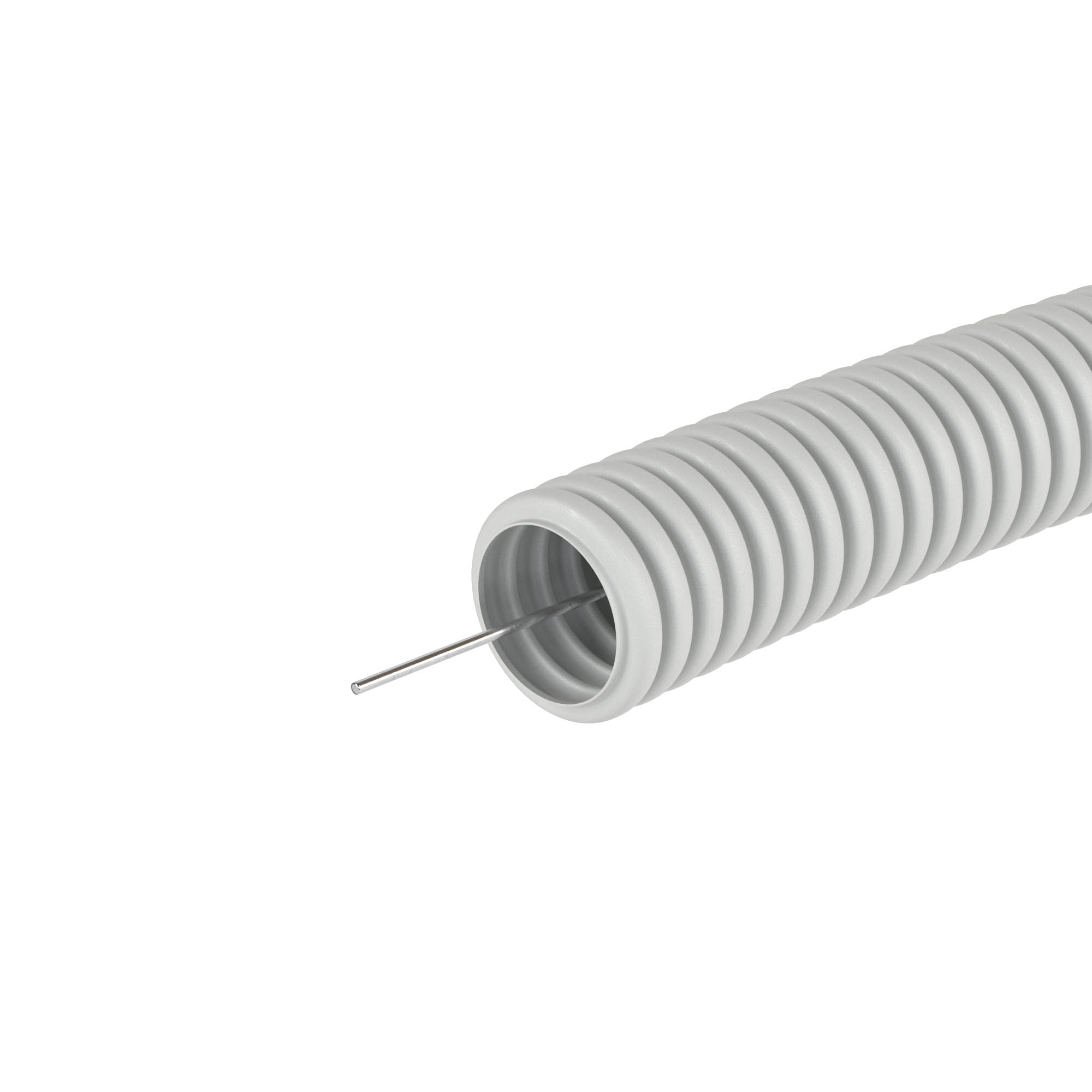

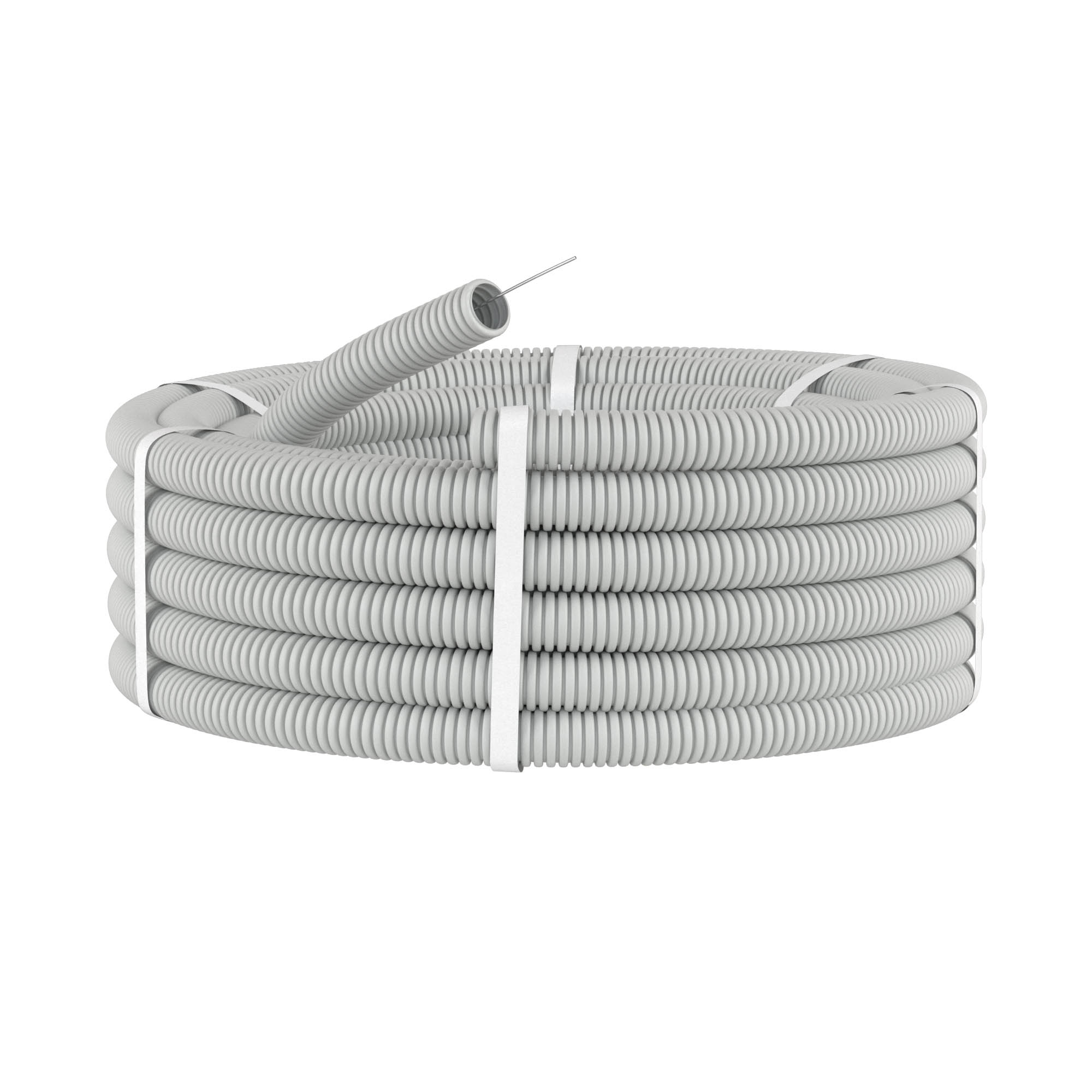

Tube PVC flexible corrugated, Ø 50 mm, light version with pull, 15 m, grey color

Code: 91950
  • To ask a question
Colour Grey
Outer diameter, mm 50
UV resistant No
Inner diameter, mm 40.2
Compressive strength, N 350
Operational temperature, °C - 25…60
Bending radius, static, mm 150
Flame accelerating No
Material Polyvinyl chloride (PVC)
Tensile strength, N 100
Nominal diameter, mm 50
Nominal size in inch 2 inch
Degree of protection (IP) IP55
Bending strength Flexible
Lengthwise slotted No
Sheathing material Not sheathed
Length 15000 mm
8 диаметров мм 150 mm
-5°С ... +60°С -5°С ... +60°С
Ingress Protection rating, IP IP55
от -25°С до +60°С from -25°С to +60°С
Shock resistance, J >0,5 at -25°С
Cord for wires Yes
Fire protection It is not spread combustion (GOST R 53313-2009)
Series Light
ТУ 2248-012-47022248-2009 Technical specifications 2247-008-47022248-2002
3 года 3 years
15 лет 15 years
Product type Tube PVC flexible corrugated
