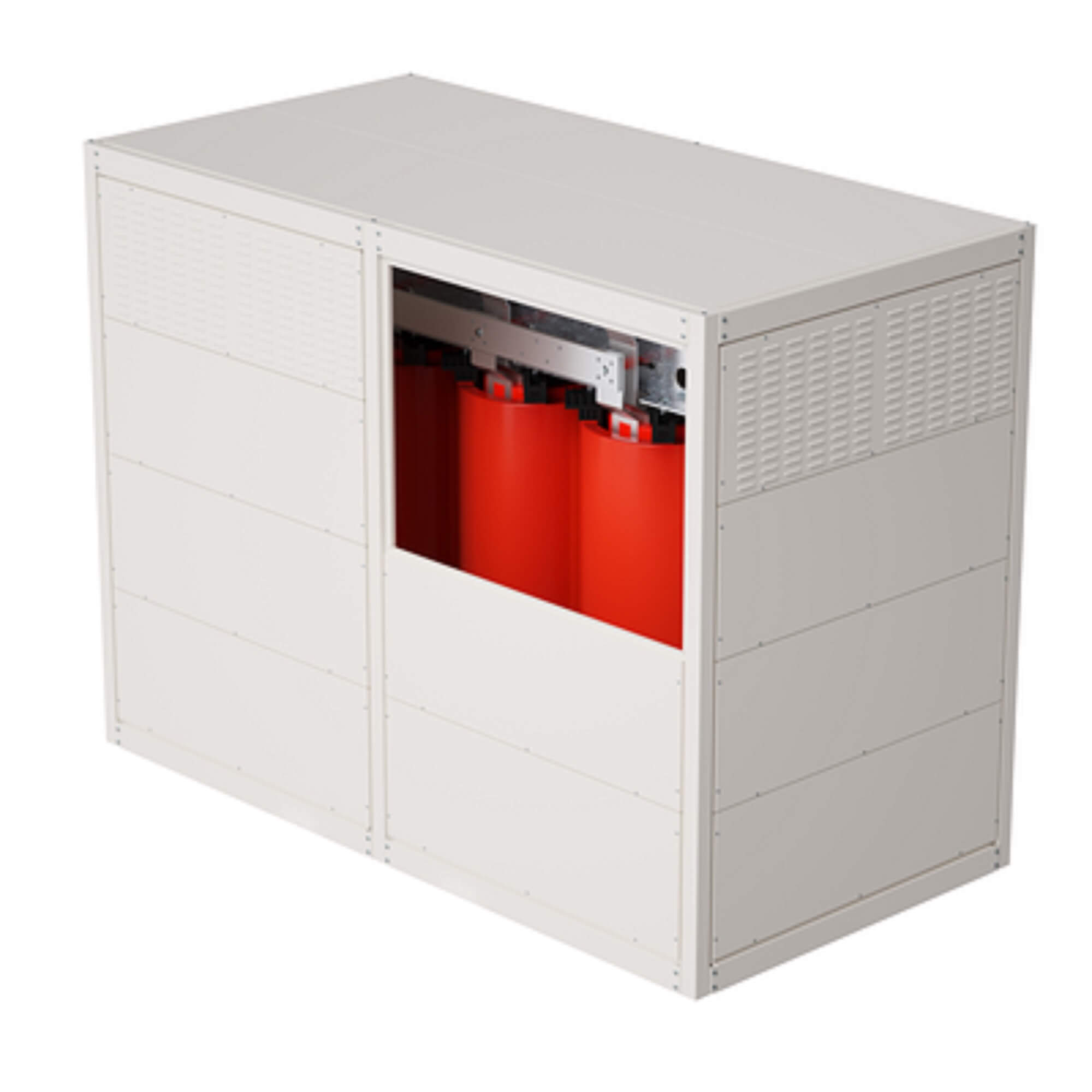

No name

Code: TDA08BDYN5BF000
  • To ask a question
Width, mm 2250
Height, mm 2200
Depth, mm 1550
Wiring system DY
Degree of protection (IP) IP31
Built as energy saving transformer No
Rated power, VA 800
Type of insulation material according to IEC 85 F
Primary voltage, kV 6
Secondary voltage, kV 0.4
Uk 0.06
Po 1550 W
Pk 120ºC 8500 W
Sound preassure level 57 dB
