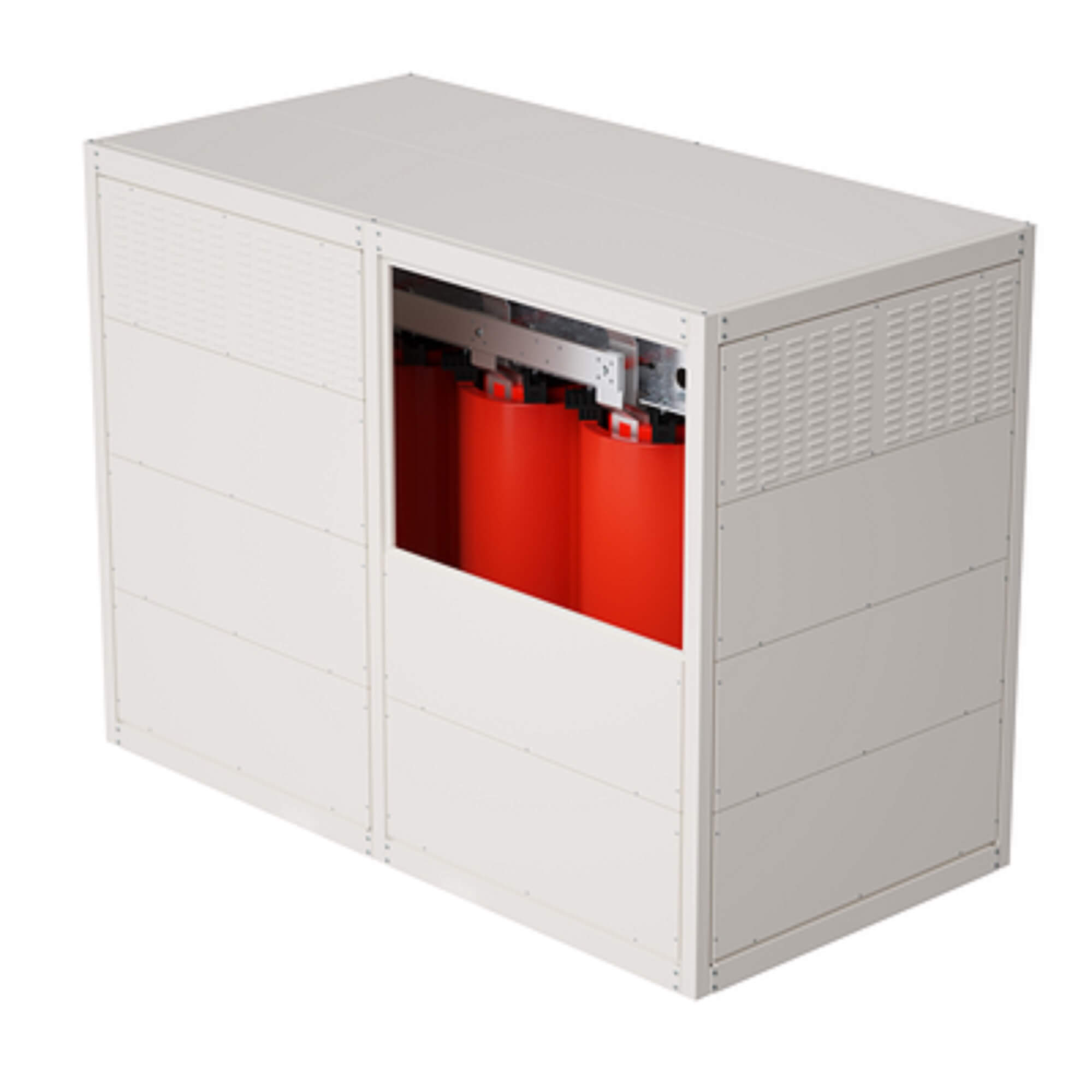

No name
Code:
TDA16BDYN5BF000
No name
Code:
TDA16BDYN5BF000
| Width, mm | 2500 |
| Height, mm | 2450 |
| Depth, mm | 1550 |
| Wiring system | DY |
| Degree of protection (IP) | IP31 |
| Built as energy saving transformer | No |
| Rated power, VA | 1600 |
| Type of insulation material according to IEC 85 | F |
| Primary voltage, kV | 6 |
| Secondary voltage, kV | 0.4 |
| Uk | 0.06 |
| Po | 2350 W |
| Pk 120ºC | 14700 W |
| Sound preassure level | 60 dB |
| Option | Forced ventilation antivibration mounts |
