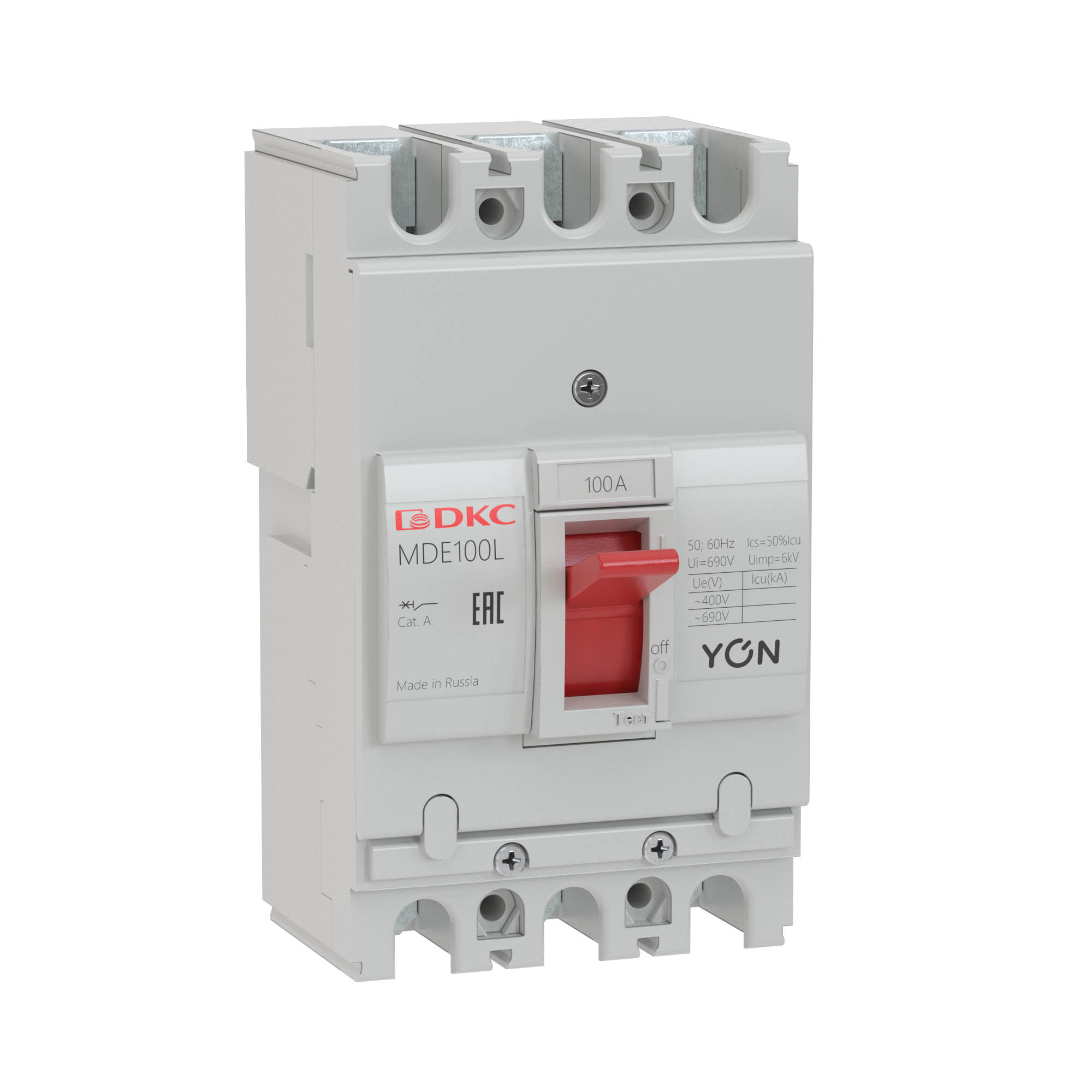

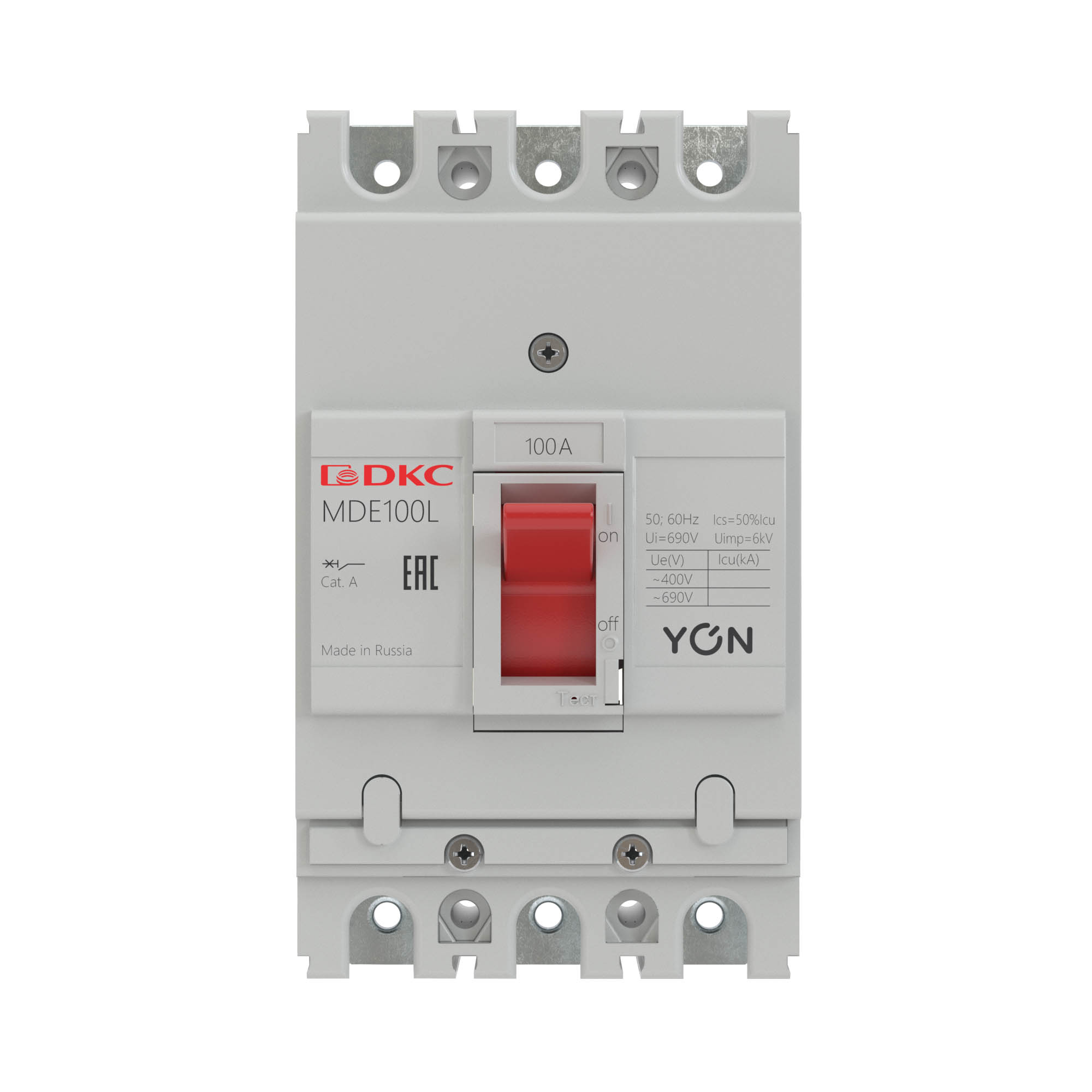

Molded case circuit breaker YON MDE100L020

Code: MDE100L020

Molded case circuit breaker YON MDE100L020

Code: MDE100L020
Rated permanent current Iu, A 20
Number of poles 3
Overload release current setting, A 20
Degree of protection (IP) IP20
Type of electrical connection of main circuit Screw connection
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz, kA 6
Suitable for DIN rail (top hat rail) mounting No
Motor drive optional No
With under voltage release No
Device construction Built-in device fixed built-in technique
Type of control element Rocker lever
DIN rail (top hat rail) mounting optional Yes
Rated current In 20 A
Q'ty of poles 3
Type release Thermal and electromagnetic
Breaking Capacity Limit Icu 6 kA
Regulation of currents in the overload zone No
Regulation of currents in the short-circuit zone No
