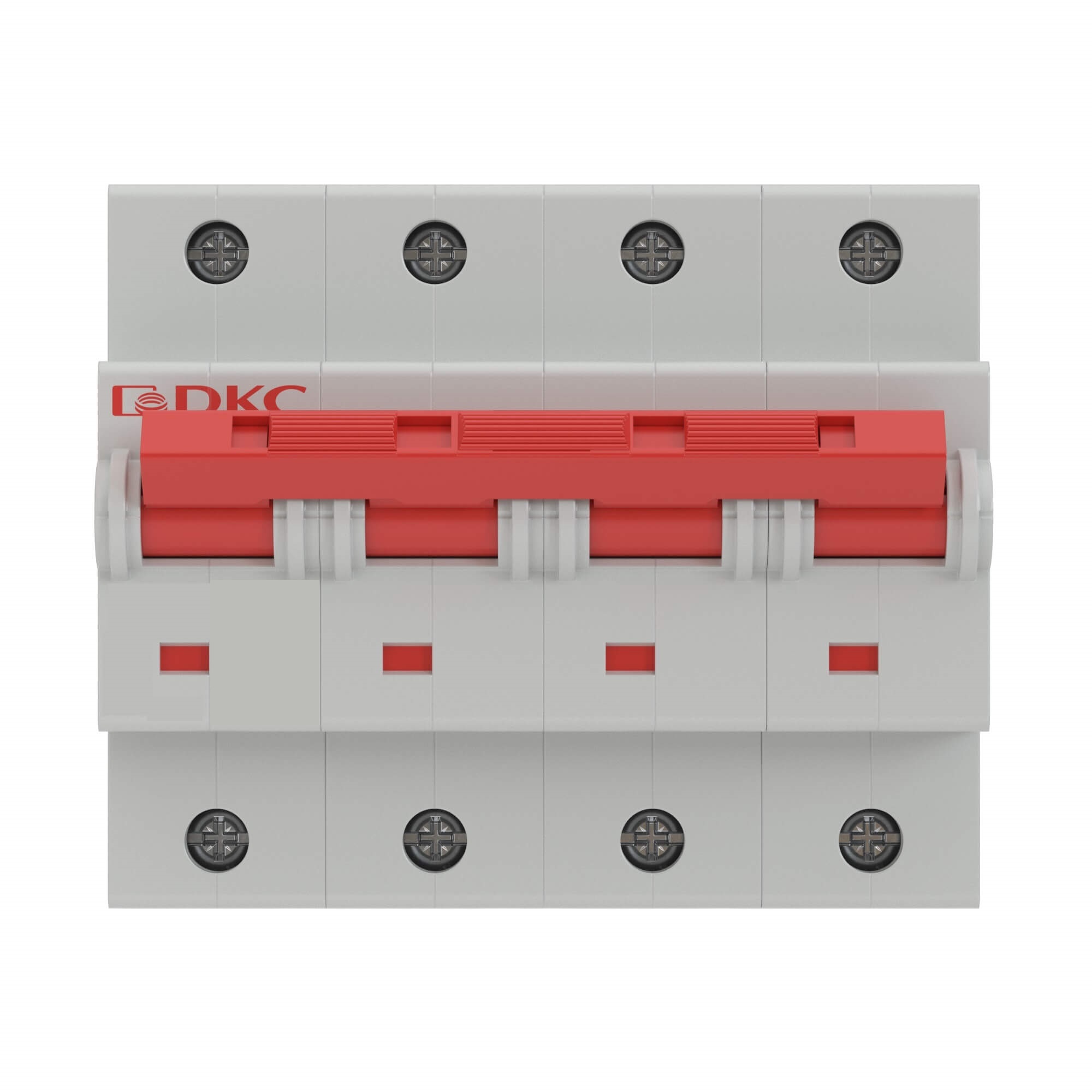

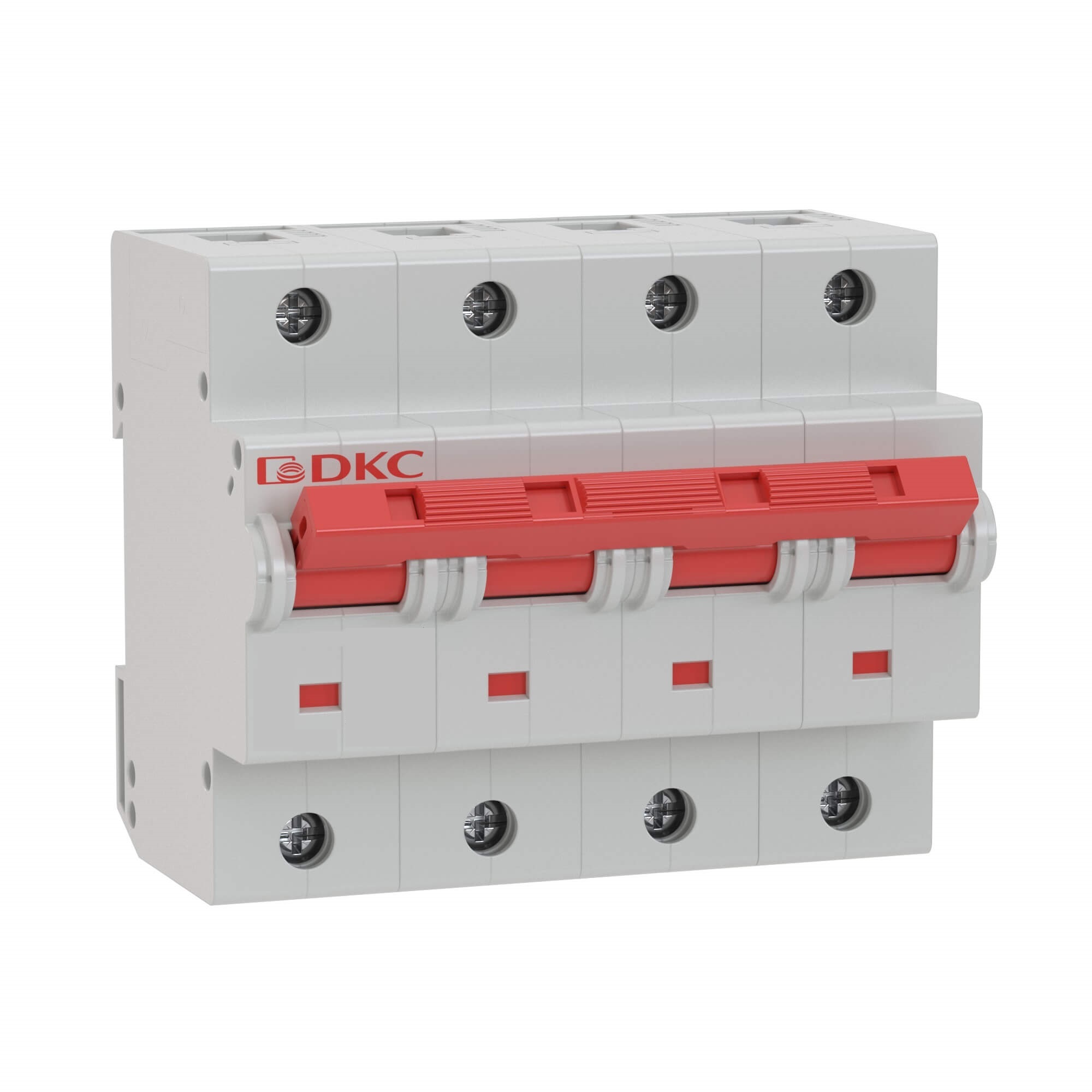

Modular circuit breaker YON MD125-4ND100-14ln
Code:
MD125-4ND100
Modular circuit breaker YON MD125-4ND100-14ln
Code:
MD125-4ND100
Rated current, A | 100 |
Rated voltage, V | 400 |
Release characteristic | D |
Degree of protection (IP) | IP20 |
Concurrently switching N-neutral | Yes |
Additional equipment possible | Yes |
Number of poles (total) | 4 |
Voltage type | AC |
Number of protected poles | 3 |
Connectable conductor cross section multi-wired, mm² | 25...25 |
Ambient temperature during operating, °C | -60...40 |
Rated insulation voltage Ui, V | 400 |
Over voltage category | 4 |
Pollution degree | 3 |
Connectable conductor cross section solid-core, mm² | 25...25 |
Rated short-circuit breaking capacity Icn EN 60898 at 400 V, kA | 15 |
Rated short-circuit breaking capacity Icn EN 60898 at 230 V, kA | 15 |
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V, kA | 15 |
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V, kA | 15 |
Rated impulse withstand voltage Uimp, kV | 4 |
