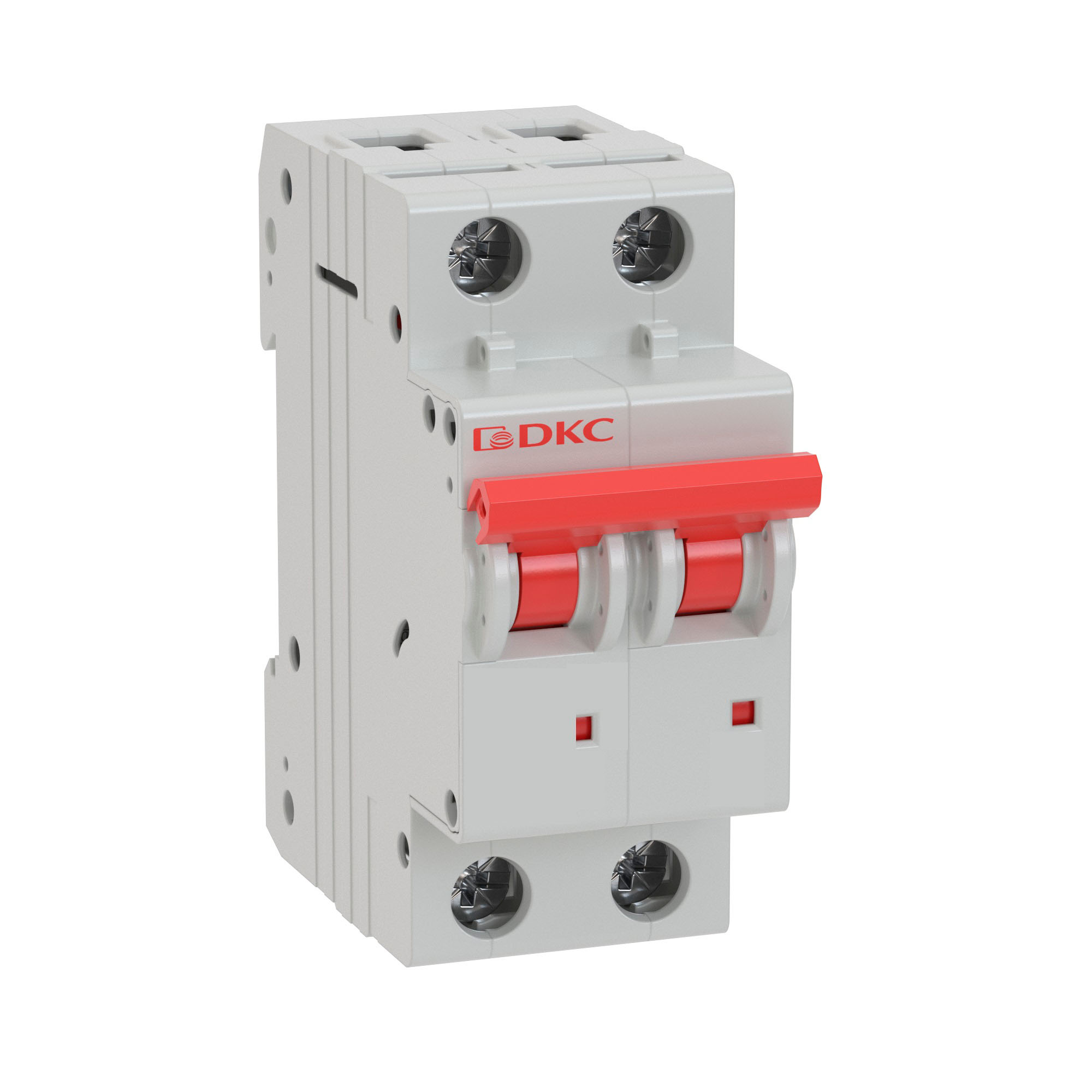

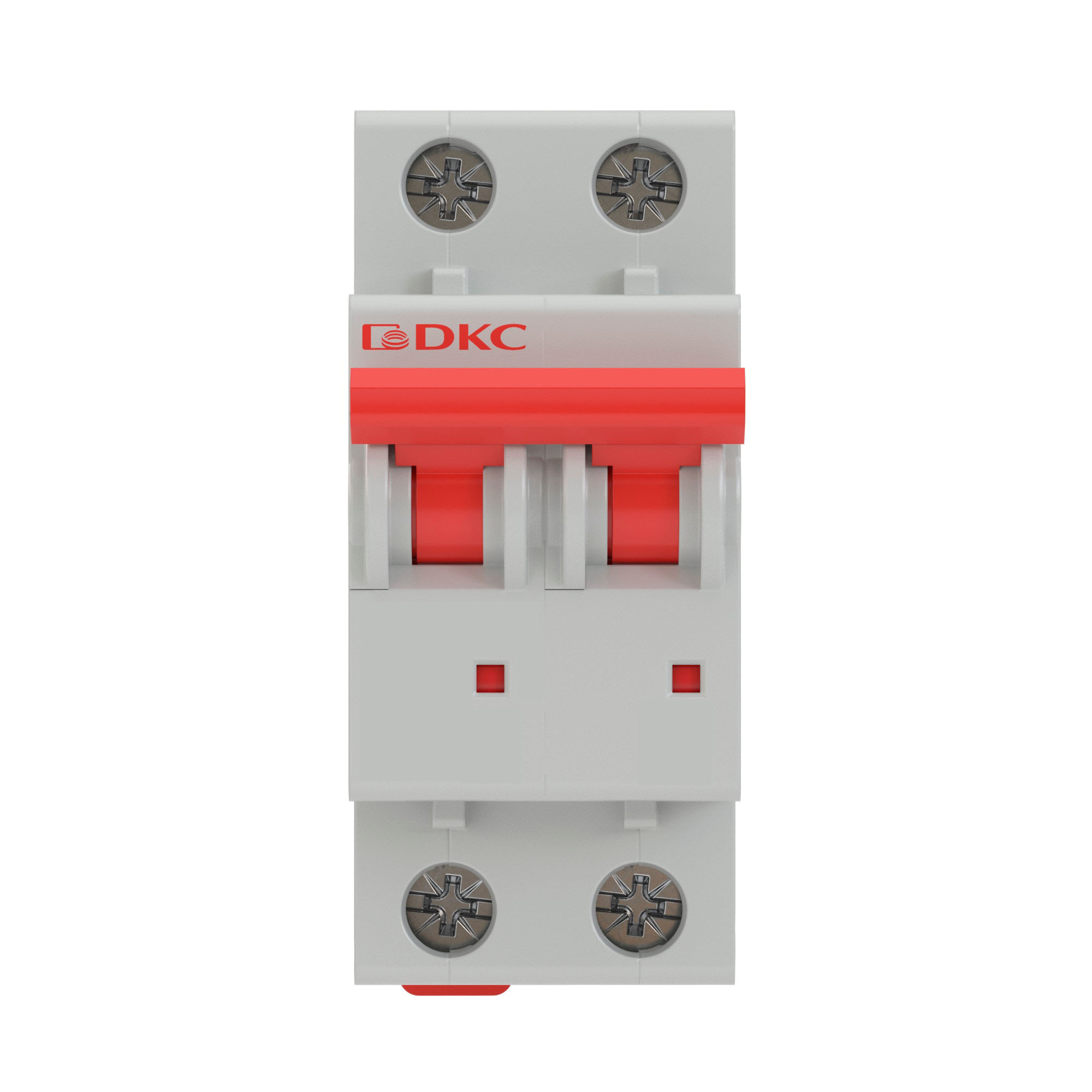

No name

Code: MD63-1NB4-10

No name

Code: MD63-1NB4-10
Removed from the product range
Release characteristic B
Number of poles (total) 2
Rated current, A 4
Rated voltage, V 400
Voltage type AC
Current limiting class 3
Concurrently switching N-neutral Yes
Width in number of modular spacings 2
Built-in depth, mm 75
Additional equipment possible Yes
Degree of protection (IP) IP20
Number of protected poles 1
Rated insulation voltage Ui, V 400
Rated impulse withstand voltage Uimp, kV 4
Ambient temperature during operating, °C -60...40
Connectable conductor cross section multi-wired, mm² 25...25
Over voltage category 4
Pollution degree 3
Connectable conductor cross section solid-core, mm² 25...25
Rated short-circuit breaking capacity Icn EN 60898 at 400 V, kA 10
Rated short-circuit breaking capacity Icn EN 60898 at 230 V, kA 10
