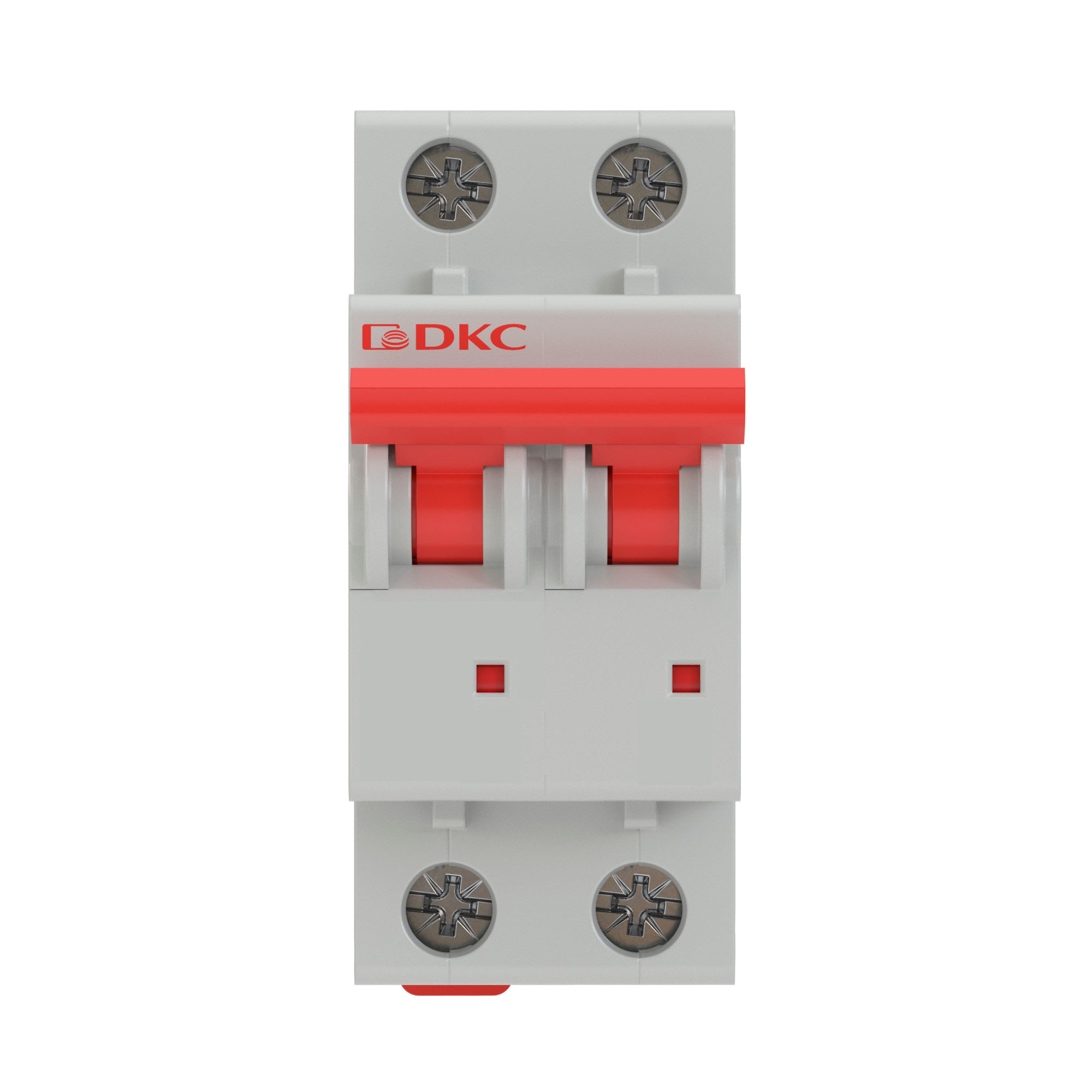

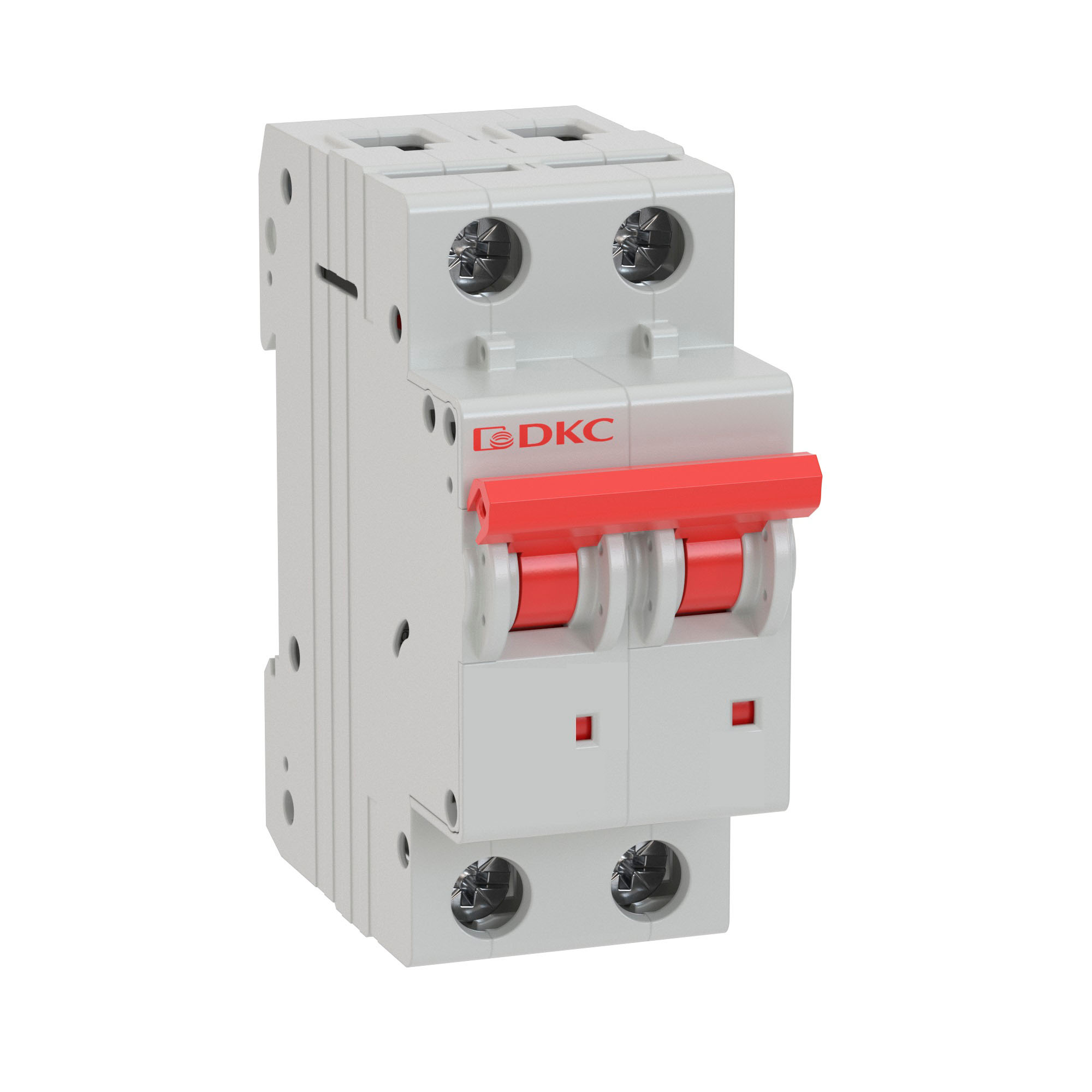

No name
Code:
MD63-1NC2-6
No name
Code:
MD63-1NC2-6
Release characteristic | C |
Number of poles (total) | 2 |
Rated current, A | 2 |
Rated voltage, V | 230 |
Voltage type | AC |
Current limiting class | 3 |
Concurrently switching N-neutral | Yes |
Width in number of modular spacings | 2 |
Built-in depth, mm | 75 |
Additional equipment possible | Yes |
Degree of protection (IP) | IP20 |
Number of protected poles | 1 |
Rated insulation voltage Ui, V | 230 |
Rated impulse withstand voltage Uimp, kV | 4 |
Ambient temperature during operating, °C | -60...40 |
Connectable conductor cross section multi-wired, mm² | 25...25 |
Over voltage category | 4 |
Pollution degree | 3 |
Connectable conductor cross section solid-core, mm² | 25...25 |
Rated short-circuit breaking capacity Icn EN 60898 at 400 V, kA | 6 |
Rated short-circuit breaking capacity Icn EN 60898 at 230 V, kA | 6 |
