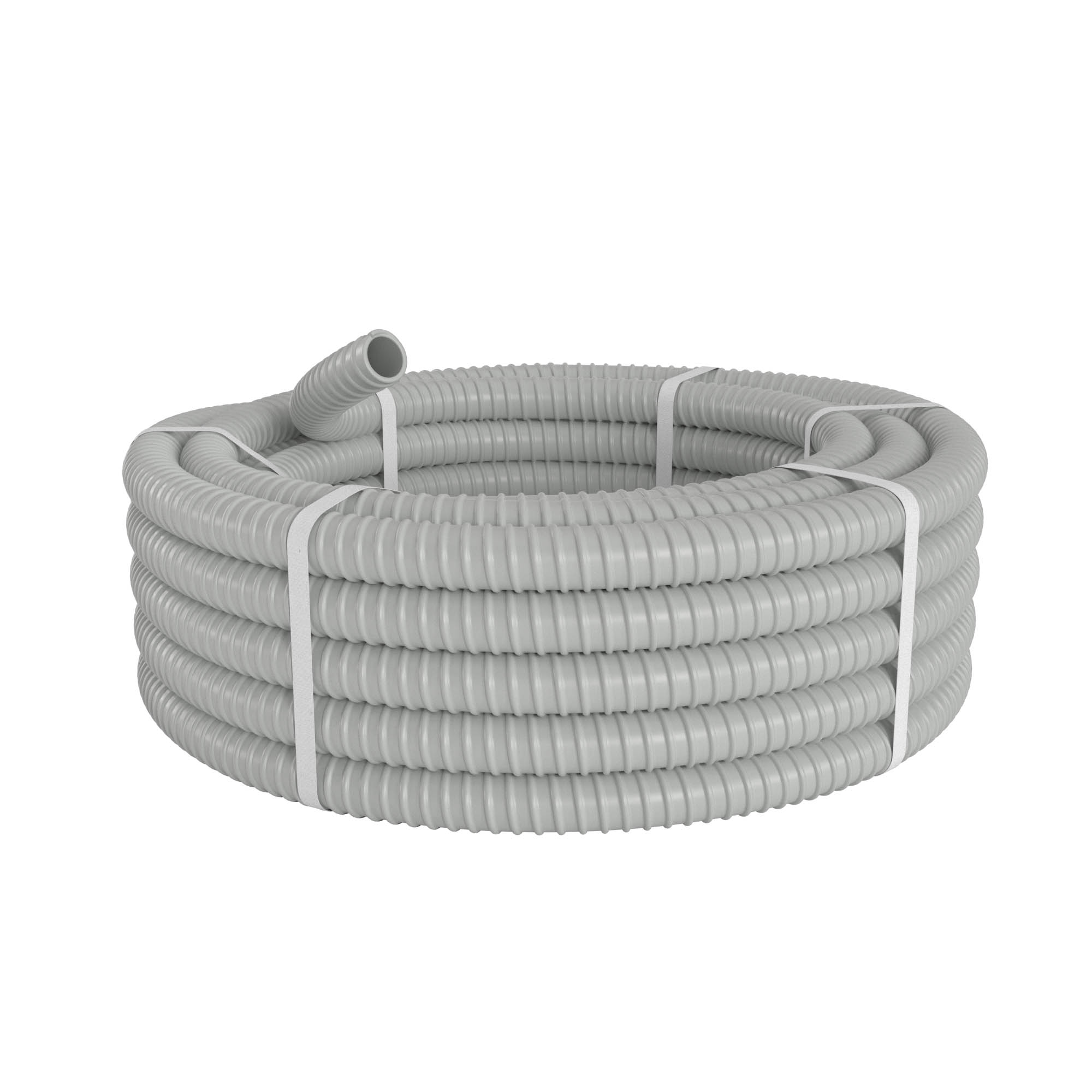

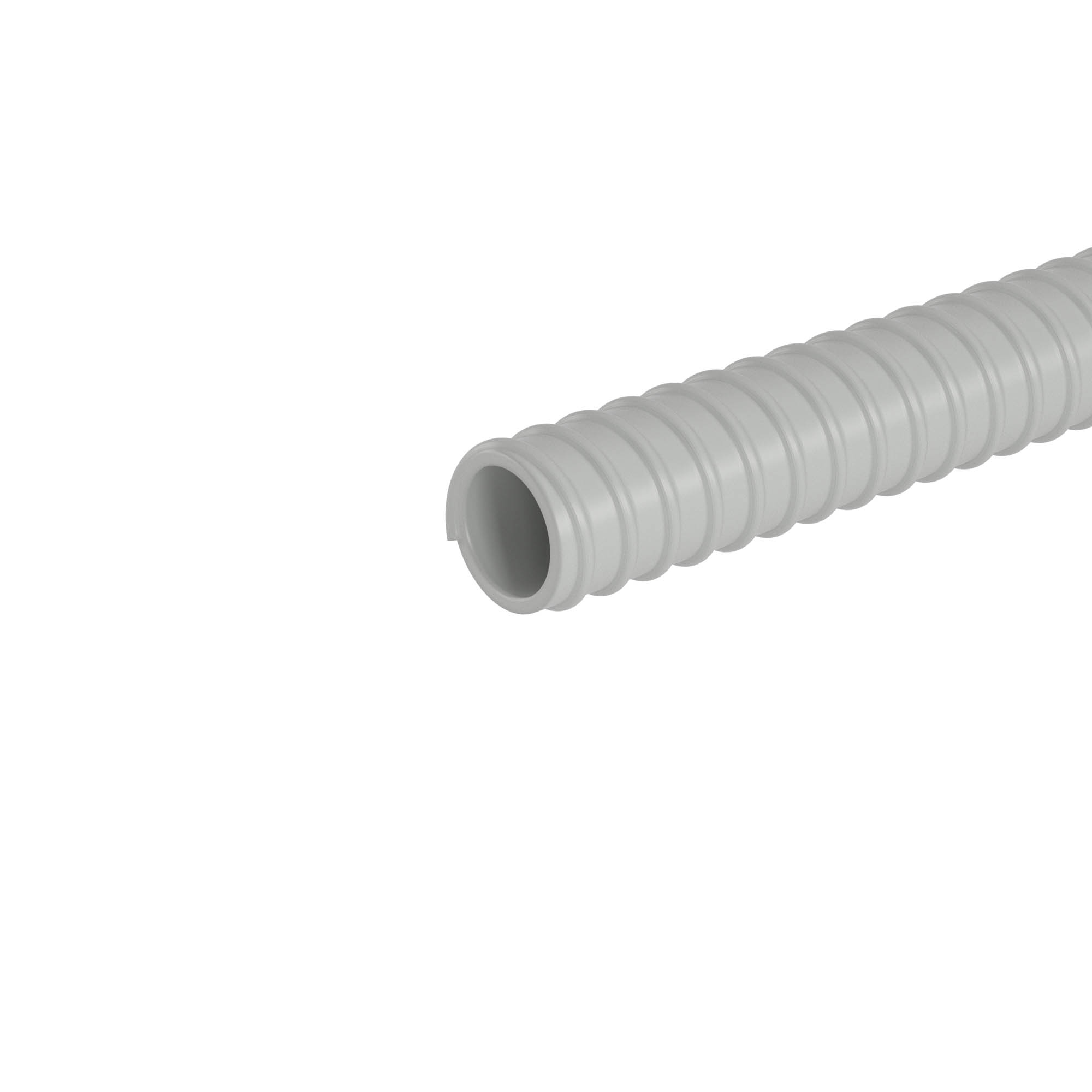

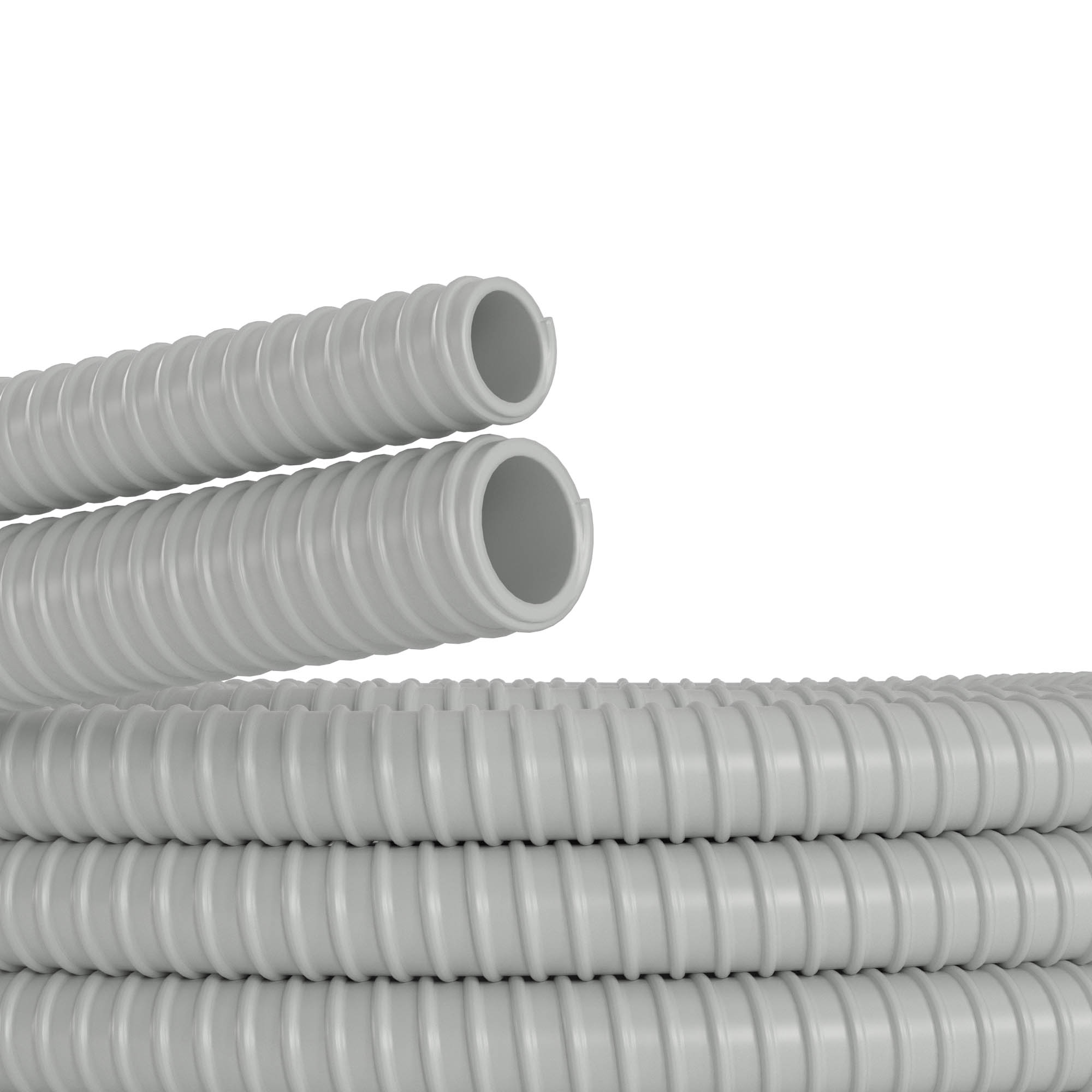

Spiralled sheath PVC, inside Ø 28 mm

Code: 57028

Spiralled sheath PVC, inside Ø 28 mm

Code: 57028
Colour Grey

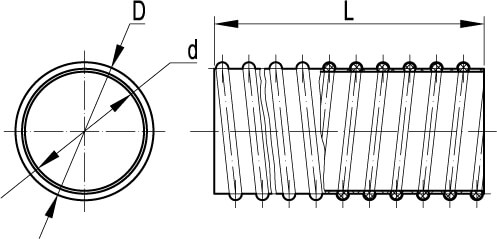

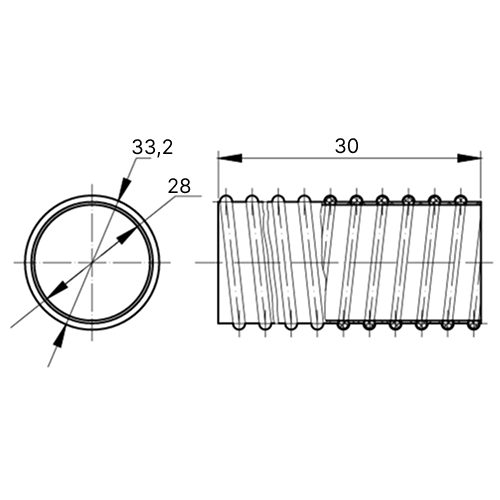

Outer diameter, mm 33.2
Inner diameter, mm 28
Operational temperature, °C -5...60
Bending radius, static, mm 56
Material filament Helix of rigid plastic
Plain interior Yes
Flexibility Flexible
Material Polyvinyl chloride (PVC)
Plain exterior No
Tensile strength, N 300
Nominal diameter, mm 28
Nominal size in inch 1 inch
Degree of protection (IP) IP65
-- No
Halogen free No
Color gray
-5°С ... +60°С +5°С ... +60°С
Ingress Protection rating, IP IP65
от -25°С до +60°С from -25°С to +60°С
Shock resistance, J >6 at +5°С; >2 at -25°С;
Cord for wires false
Fire protection Flame retardant (GOST R 53313-2009)
Product type Spiralled sheath PVC
ТУ 2248-012-47022248-2009 Technical specifications 2247-023-47022248-2009
3 года 3 years
15 лет 15 years
