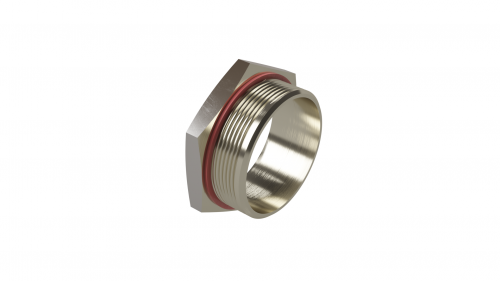

Explosion-proof adaptor Ex e, M50x1,5. Nickel-plated brass. IP66/67

Code: EX6052-50
  • To ask a question
Material Metal
Degree of protection (IP) IP66
For Ex-zone gas 1, 2
Explosion-tested version Yes
Colour Light grey
Model Straight
Halogen free Yes
Surface protection Nickel-plated
Material quality Brass
Thread type Metric
For Ex-Zone dust None
Shock resistant Yes
Material Nickel plated brass
Product type Сable line cut protection
External thread M50х1,5 Metric
Marking Ex e IIC Gb U/ Ex tb IIIC Db U
Inside diameter of the through hole 44 mm
Temperature range from - 45 to +85 °С
