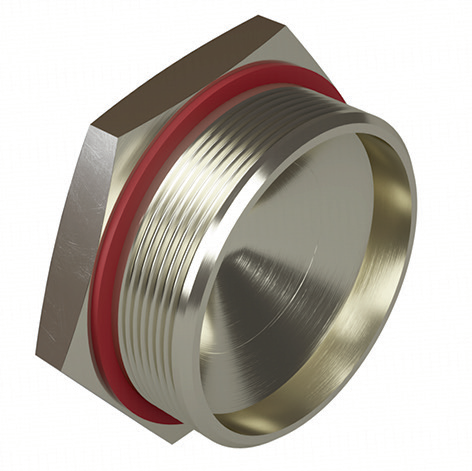

Explosion-proof plug Ex d e, GAS 1 1/4". Stainless steel AISI316L. IP66/67

Code: EXD6050-G114SX
Code: EXD6050-G114SX
  • To ask a question
Surface protection Nickel-plated
Glass-fibre reinforced No
Thread type Metric
Colour Light grey
Halogen free Yes
Shock resistant Yes
Material quality Brass
Material Metal
Explosion-tested version Yes
For Ex-zone gas 1, 2
Nominal thread size inch/gas pipe thread 1 1/4 inch
For Ex-Zone dust 21, 22
Material AISI 316L
External thread 1 1/4", GAS
Marking Ex db IIC Gb U / Ex e IIC Gb U / Ex tb IIIC Db U
Temperature range From -65 to +130 °С
Product type Plug
