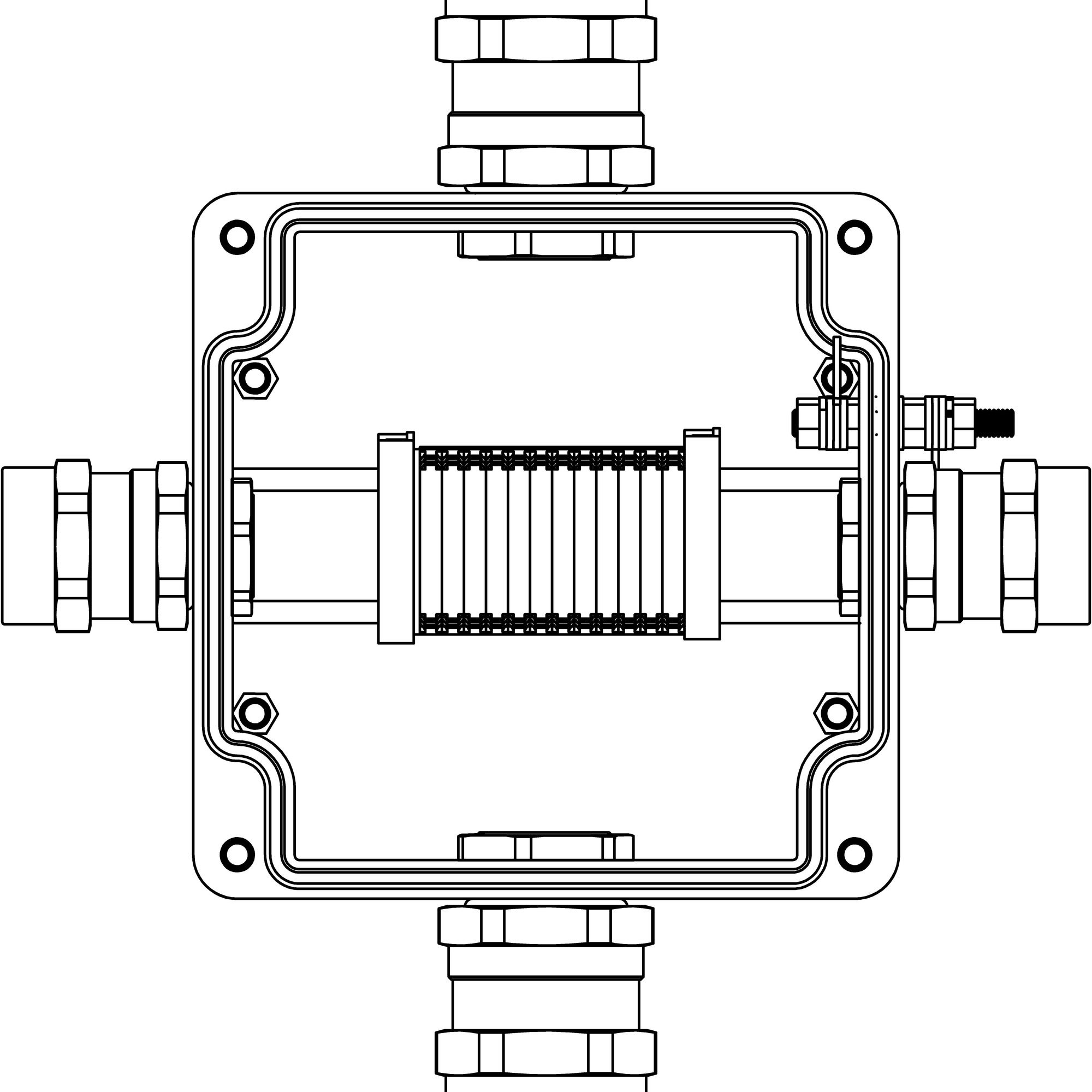

GRP terminal box 160x160x90мм 1Ex e IIC T5 Gb Ex tb IIIB T95°C Db IP66 Temperature Classes Т5 40°C Grounding rings Зажим заземления Quantity of clamp terminal blocks: CBC.2 12 pcs. Amperage А Cable glands side A: AAS explosion-proof cable gland for arm
Code: 1231.051.19.02F
GRP terminal box 160x160x90мм 1Ex e IIC T5 Gb Ex tb IIIB T95°C Db IP66 Temperature Classes Т5 40°C Grounding rings Зажим заземления Quantity of clamp terminal blocks: CBC.2 12 pcs. Amperage А Cable glands side A: AAS explosion-proof cable gland for arm
Code: 1231.051.19.02F
| Explosion-tested version | Yes |
| Degree of protection (IP) | IP66 |
| For Ex-zone gas | 1, 2 |
| For Ex-Zone dust | 21, 22 |
| Impact strength | IK07 |
| Mounting method | Surface mounted (plaster) |
| Material | Plastic |
| Cover attachment | Screwed |
| Nominal cross-section of terminals | 2,5 mm2 |
| Terminal type | Screw |
| Quantity | 12 шт. x CBC.2 (gray) |
| Type of a cable gland for: | Armored cable |
| Series | AAS |
| Installation side: A | 1 pc. x outer D & inner d: 15-24 mm |
| Installation side: B | 1 pc. x outer D & inner d: 10,5-18 mm |
| Installation side: C | 1 pc. x outer D & inner d: 15-24 mm |
| Installation side: D | 1 pc. x outer D & inner d: 10,5-18 mm |
| Material | PVC |
| Product type | Explosion-proof box |
| Electrical equipment group | IIC hydrogen |
| Ex | e;t |
| Geometric dimensions | 160x160x90 mm |
