No name
Code:
LBD23000103
No name
Code:
LBD23000103
Mounting method | Surface mounted (plaster) |
Colour | Grey |
Width, mm | 224 |
Halogen free | Yes |
Depth, mm | 88.8 |
Surface protection | Other |
Extension possible | No |
With transparent cover | No |
With cover lid | Yes |
Number of connection clamps | 6 |
Length, mm | 224 |
Sealable | Yes |
Type of inlet | Cable |
Circuit integrity | None |
Operational temperature, °C | -60...40 |
Material | Aluminium |
Number of inlets | 4 |
Explosion-tested version | Yes |
Impact strength | Other |
Cover attachment | Screwed |
Max. conductor cross section, mm² | 18 |
Degree of protection (IP) | IP68 |
For Ex-zone gas | 1, 2 |
For Ex-Zone dust | 21, 22 |
Degree of protection (NEMA) | Other |
Nominal cross-section of terminals | 4 mm2 |
Terminal type | Screw |
Quantity | 2 pc. x MVK.4(grey) +2 pc. х MVK.4(i) (blue) + 2 pc MVK.4T (yellow-green) |
Type of a cable gland for | unarmored cable |
Series | КH |
Installation side: A | 1 pc. x outer D: 11,8-18 mm |
Installation side: B | 1 pc. x outer D: 11,8-18 mm |
Installation side: C | 1 pc. x outer D: 11,8-18 mm |
Installation side: D | 1 pc. x outer D: 11,8-18 mm |
Material | Aluminium alloy |

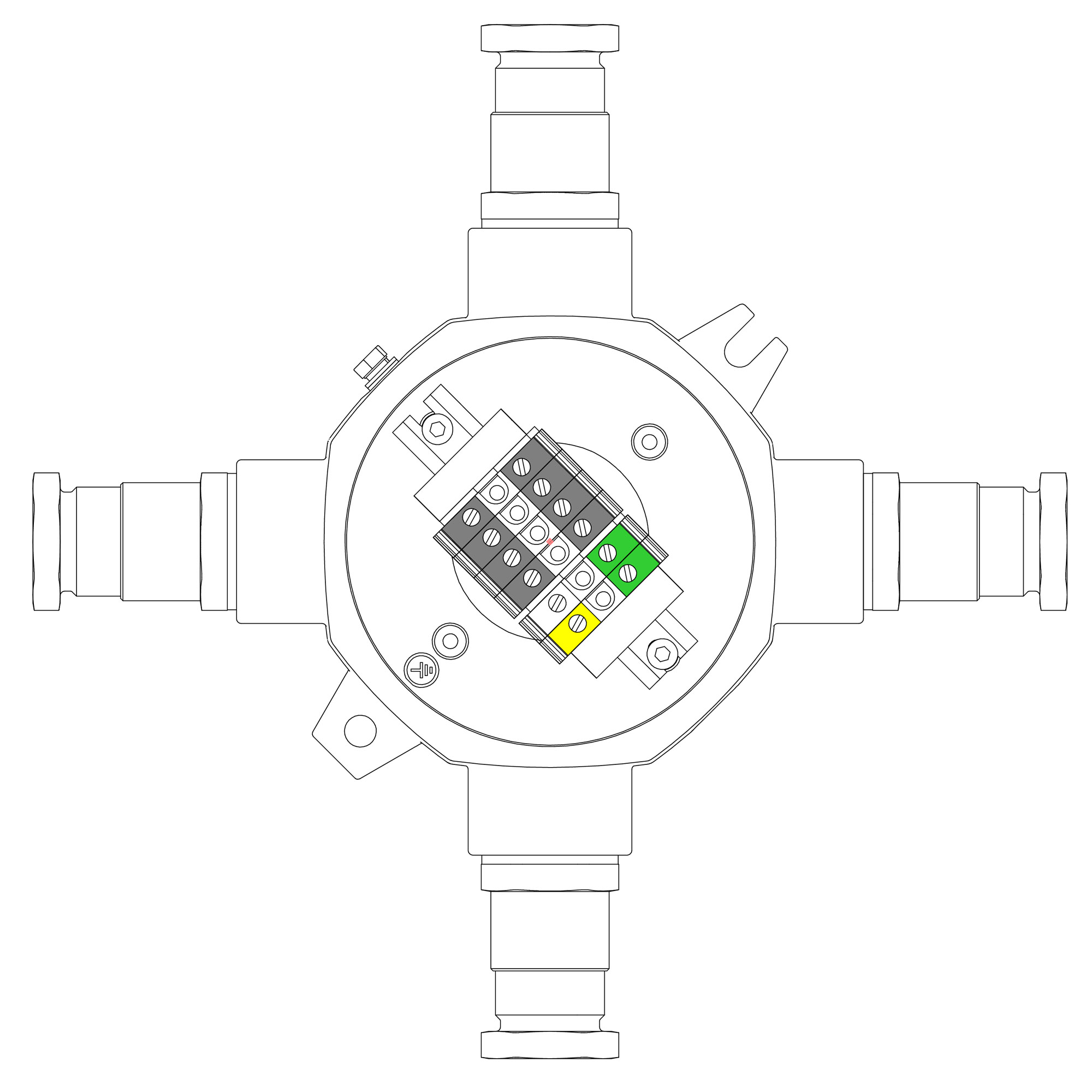

Product type | Explosion-proof box |
Electrical equipment group | IIC hydrogen |
Ex | d; tb |
