No name
Code:
LBD23000109
No name
Code:
LBD23000109
Mounting method | Surface mounted (plaster) |
Colour | Grey |
Width, mm | 260 |
Halogen free | Yes |
Depth, mm | 88.8 |
Surface protection | Other |
Extension possible | No |
With transparent cover | No |
With cover lid | Yes |
Number of connection clamps | 6 |
Length, mm | 260 |
Sealable | Yes |
Type of inlet | Cable |
Circuit integrity | None |
Operational temperature, °C | -60...40 |
Material | Aluminium |
Number of inlets | 4 |
Explosion-tested version | Yes |
Impact strength | Other |
Cover attachment | Screwed |
Max. conductor cross section, mm² | 12 |
Degree of protection (IP) | IP68 |
For Ex-zone gas | 1, 2 |
For Ex-Zone dust | 21, 22 |
Degree of protection (NEMA) | Other |
Nominal cross-section of terminals | 2,5 mm2 |
Terminal type | Screw |
Quantity | 2 pc. x MVK.2,5(grey) +2 pc. хMVK.2,5(i) (blue) + 2 pc MVK.2,5T(yellow-green) |
Type of a cable gland for | Armored and Unarmored cable in a flexible conduit COSMEC |
Series | КАEPM |
Installation side: A | 1 pc. x inner d: 5,8-12 mm |
Installation side: B | 1 pc. x inner d: 5,8-12 mm |
Installation side: C | 1 pc. x inner d: 5,8-12 mm |
Installation side: D | 1 pc. x inner d: 5,8-12 mm |
Material | Aluminium alloy |

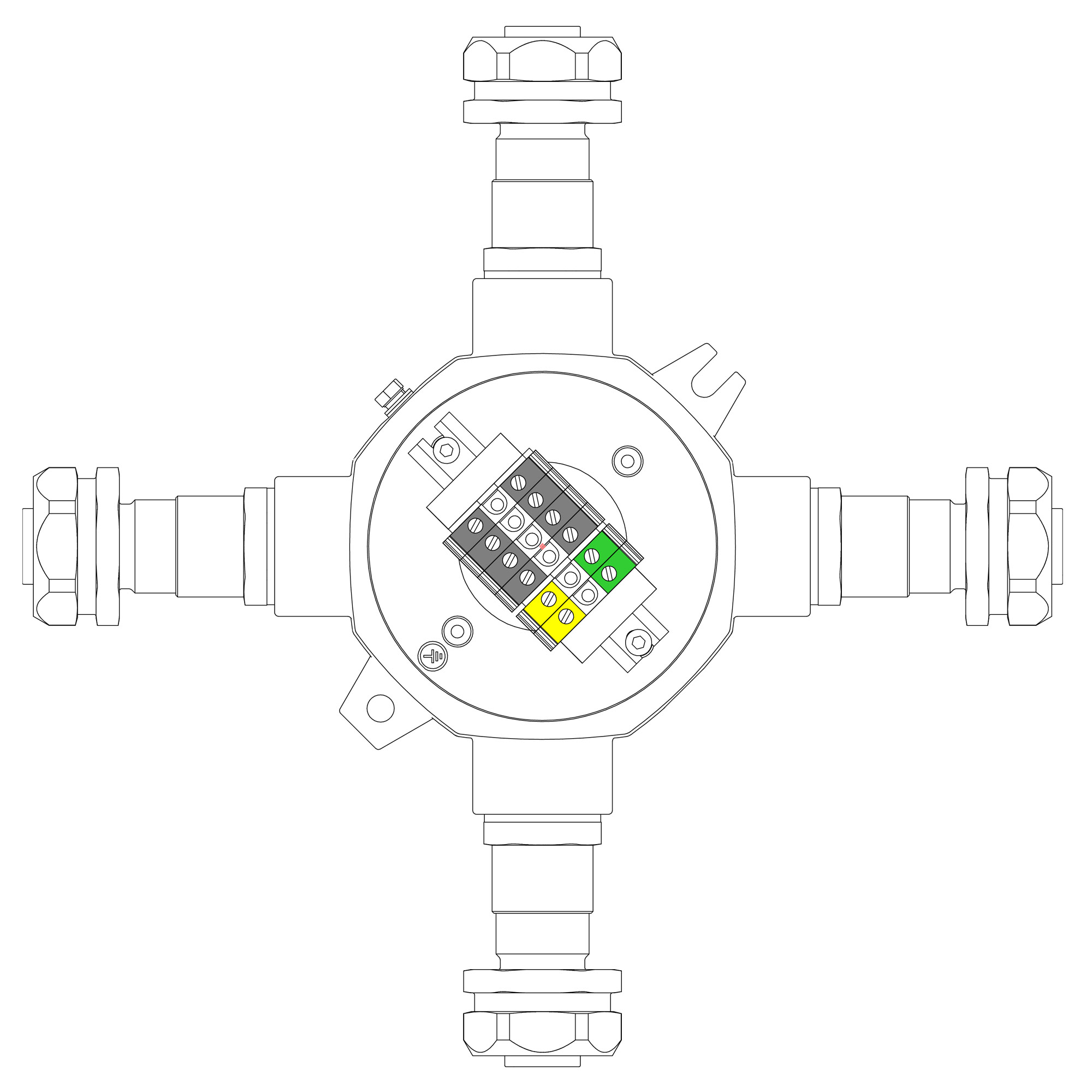

Product type | Explosion-proof box |
Electrical equipment group | IIC hydrogen |
Ex | d; tb |
