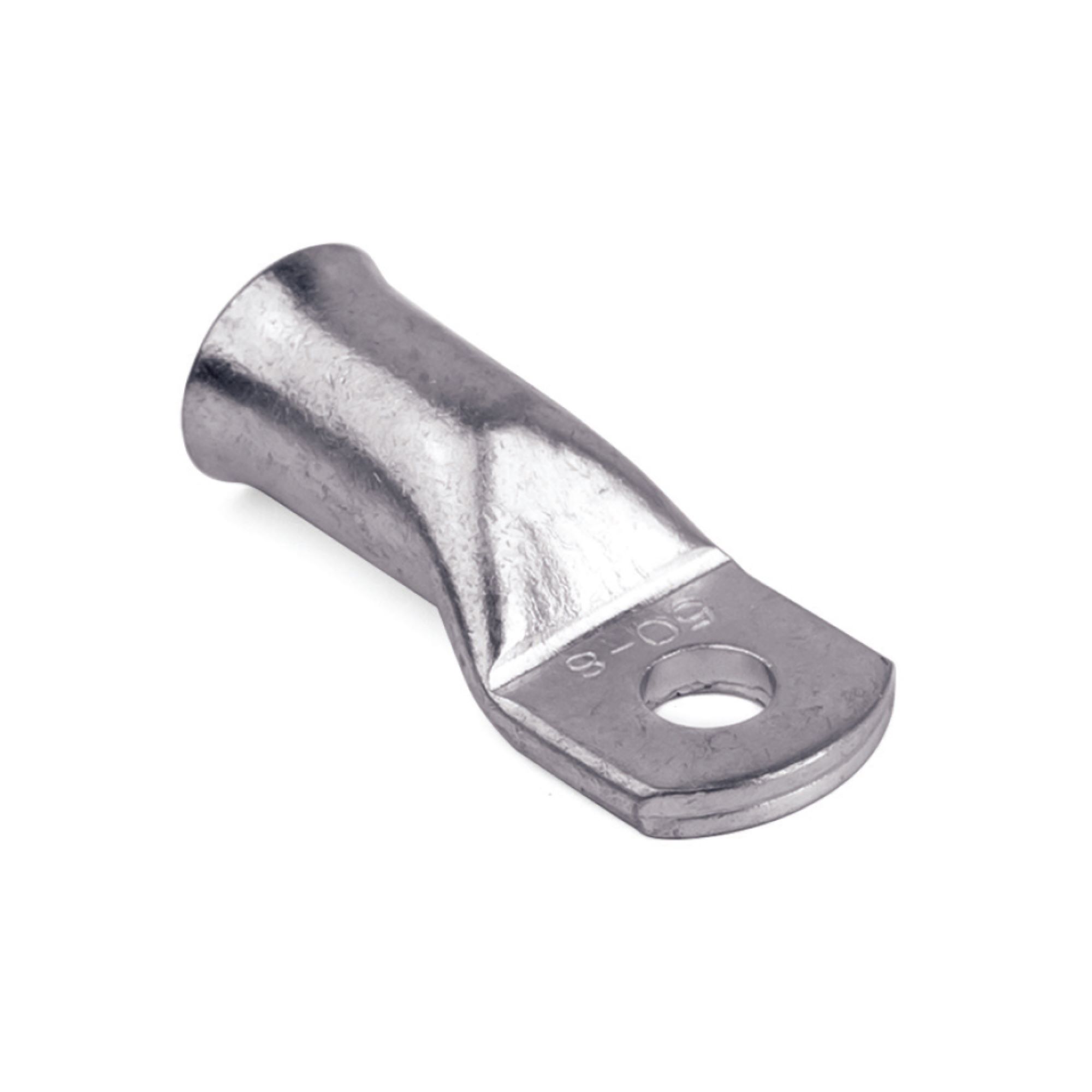

Tip under the soldering, sheet bent 2,5 sq. mm the screw of 4 mm
Code: 2BT4M
Tip under the soldering, sheet bent 2,5 sq. mm the screw of 4 mm
Code: 2BT4M
Insulated | Yes |
Surface protection | Tinned |
Nominal cross section, mm² | 2.5 |
Connecting angle | 180° (horizontal) |
Flange shape | Ring shape |
Material | Copper |
Bolt dimension (metric) | 4 |
With sight-hole | Yes |
Slender flange model | Yes |
Insulation | Not isolated |
Flange shape | Ring shape |
Product type | Non insulated terminals |
nominal cross section | 2,5 mm² |
Drawings
Seria | Name | Eplan |
---|---|---|
Cable terminals -"Quadro"
|
