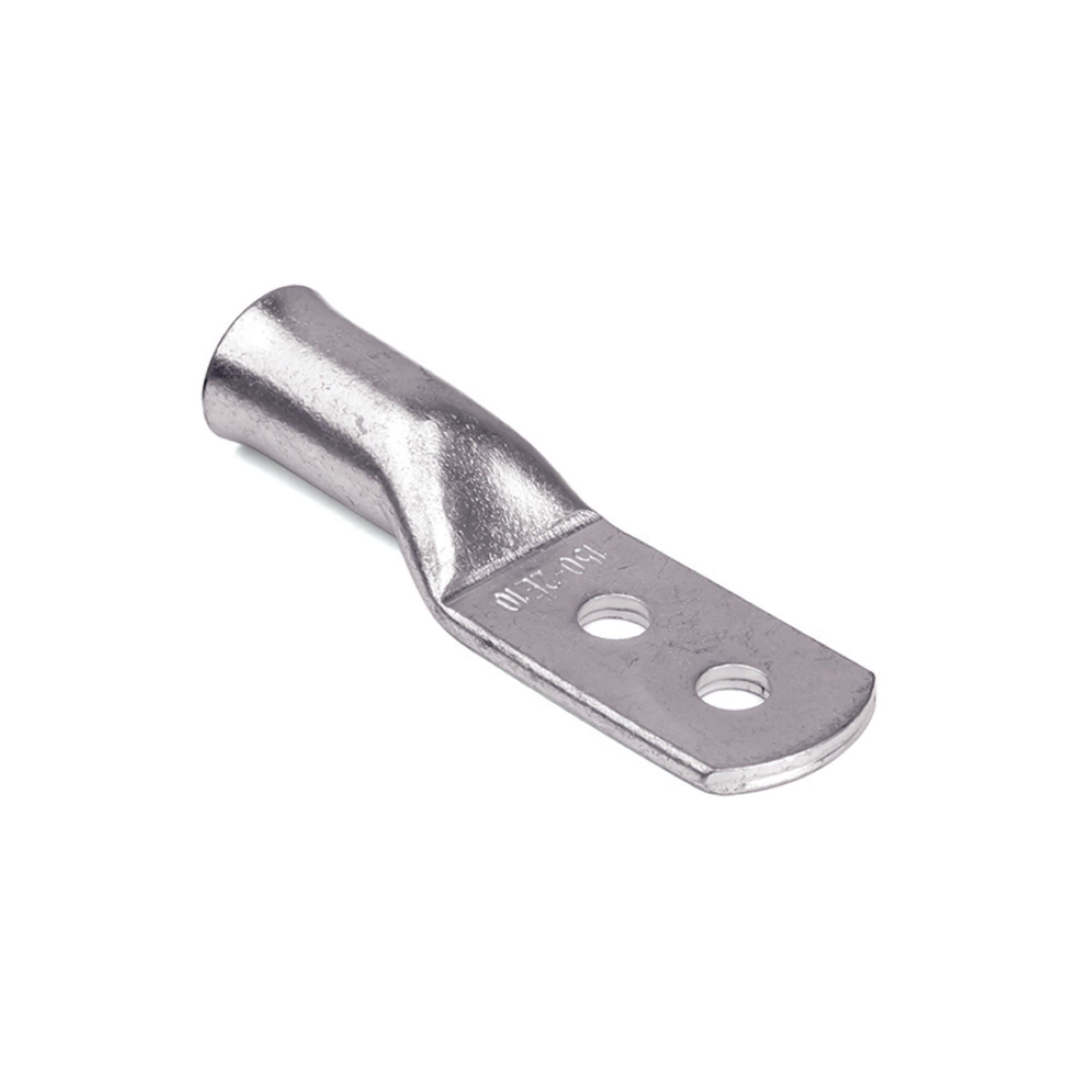

Tip under the soldering, sheet bent 240(23) sq. mm the screw of 2x12 mm
Code: 2P12DH23
Tip under the soldering, sheet bent 240(23) sq. mm the screw of 2x12 mm
Code: 2P12DH23
Insulated | Yes |
Surface protection | Tinned |
Nominal cross section, mm² | 240 |
Connecting angle | 180° (horizontal) |
Flange shape | Special shape |
Material | Copper |
Bolt dimension (metric) | 12 |
With sight-hole | Yes |
Slender flange model | Yes |
Insulation | Not isolated |
Flange shape | With two holes |
Product type | Non insulated terminals |
nominal cross section | 240 mm² |
Drawings
Seria | Name | Eplan |
---|---|---|
Cable terminals -"Quadro"
|
