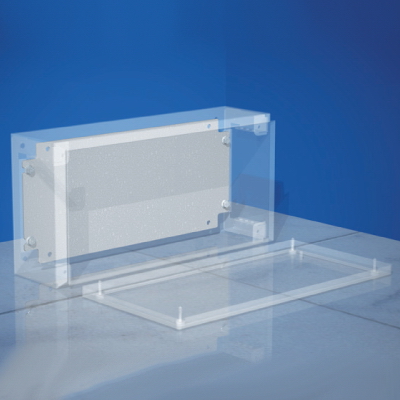

Mounting plate for CDE, 150x150 mm

Code: R5CDP11

To ask a question

ETIM
?
Characteristics

Width, mm	150
Height, mm	150
Perforated	Yes

Surface protection	Galvanized
Material	Steel

Enclosure type	Wall-mounted
Material	Galvanized steel

Product type

Junction box

Drawings

Seria	Name	DWG (dynamic.)
Metal enclosures - "RAMblock"	Skinnie hinged boxes series СDЕ (dynamic blocks)	RAR 2.94 Mb

Certificates

Name	Document
RAM block - Exemption letter for enclosures RAM block_1	PDF 3.69 MB
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
RAM block - Test report for welded boxes CE/CDE on the seismic stability_1	PDF 128.88 kB
RAM block - Test report for welded boxes CE/CDE on the vibration_1	PDF 125.50 kB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
All types of cable trays, ducts, welded and modular cases -Russian Maritime Register of Shipping_1	PDF 1.42 MB
Certificate of conformity for Wall-mounted enclosure series CE and CQE	PDF 1.84 MB
