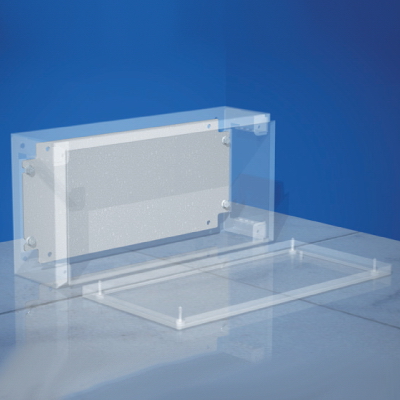

Mounting plate for CDE, 400x300 mm

Code: R5CDP43
Mounting plate for CDE, 400x300 mm
Mounting plate for CDE, 400x300 mm
  • To ask a question
Width, mm 300
Height, mm 400
Perforated Yes
Surface protection Galvanized
Material Steel
Enclosure type Wall-mounted
Material Galvanized steel
Product type Junction box
Drawings
Seria Name DWG (dynamic.)
Metal enclosures - "RAMblock"
Skinnie hinged boxes series СDЕ (dynamic blocks)
RAR
2.94 Mb
Certificates
Name Document
RAM block - Exemption letter for enclosures RAM block_1
PDF
3.69 MB
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
RAM block - Test report for welded boxes CE/CDE on the seismic stability_1
PDF
128.88 kB
RAM block - Test report for welded boxes CE/CDE on the vibration_1
PDF
125.50 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
All types of cable trays, ducts, welded and modular cases -Russian Maritime Register of Shipping_1
PDF
1.42 MB
Certificate of conformity for Wall-mounted enclosure series CE and CQE
PDF
1.84 MB
