No name
Code:
R5SDE3112
No name
Code:
R5SDE3112
| Colour | Grey |
| Width, mm | 150 |
| Height, mm | 300 |
| Depth, mm | 120 |
| RAL-number | 7035 |
| Material | Steel |
| Impact strength | IK10 |
| Degree of protection (IP) | IP66 |
| Suitable for outdoor set-up | Yes |
| Wall fastening possible | Yes |
| Surface finishing | Powder coating |
| Pole fastening | Yes |

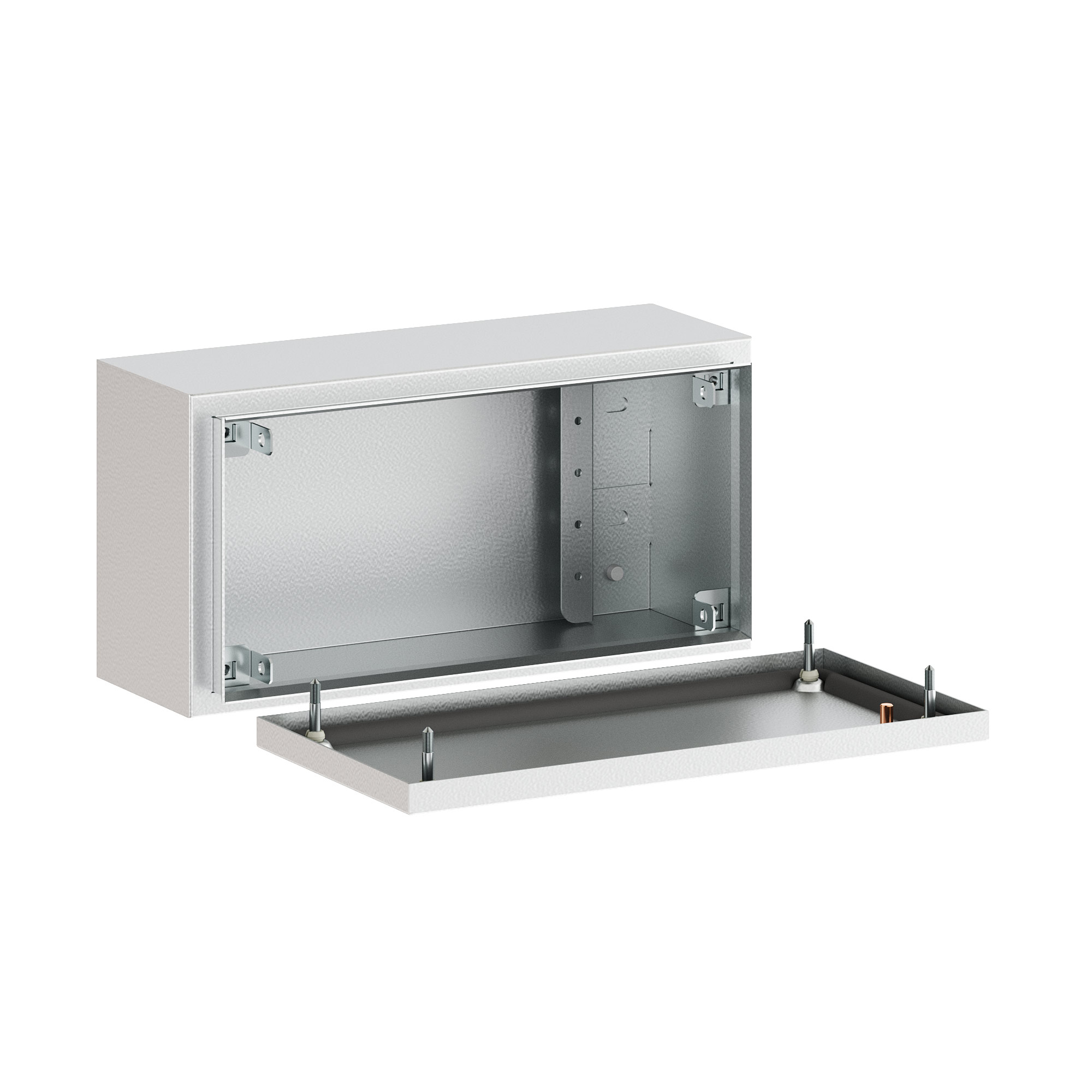

| Product type | Terminal box |
| Series | SDE |
| Material | Steel, light grey, RAL7035 |
| Height | 300 mm |
| Width | 150 mm |
| Depth | 120 mm |
| Enclosure design | Screw cover |
| Mounting plate | Optional |
| Door slats | Not included |
| Cable flanges | Not included |
| Number of cable flanges | 0 pc |
| Enclosure thickness | 1,2 mm |
| Door/lid thickness | 1,2 mm |
| Gasket | Polyurethane |
| Degree of protection | IP66 |
| IK | IK10 |
| Seismic resistance | Degree 9 of MSK-64 |
| Mechanical strength | M39 |
| Temperature range | -60...+90 °С |
| Climate version | UHL1, OM2, OM3, U3 |
| Flammability | G1 |
| Russian Maritime Register of Shipping | Yes |
| Russian Classification Society | Yes |
