No name

Code: R5SDE5312F

No name

Code: R5SDE5312F
Colour Grey
Width, mm 300
Height, mm 500
Depth, mm 120
RAL-number 7035
Material Steel
Impact strength IK10
Degree of protection (IP) IP66
Suitable for outdoor set-up Yes
Wall fastening possible Yes
Surface finishing Powder coating
Pole fastening Yes

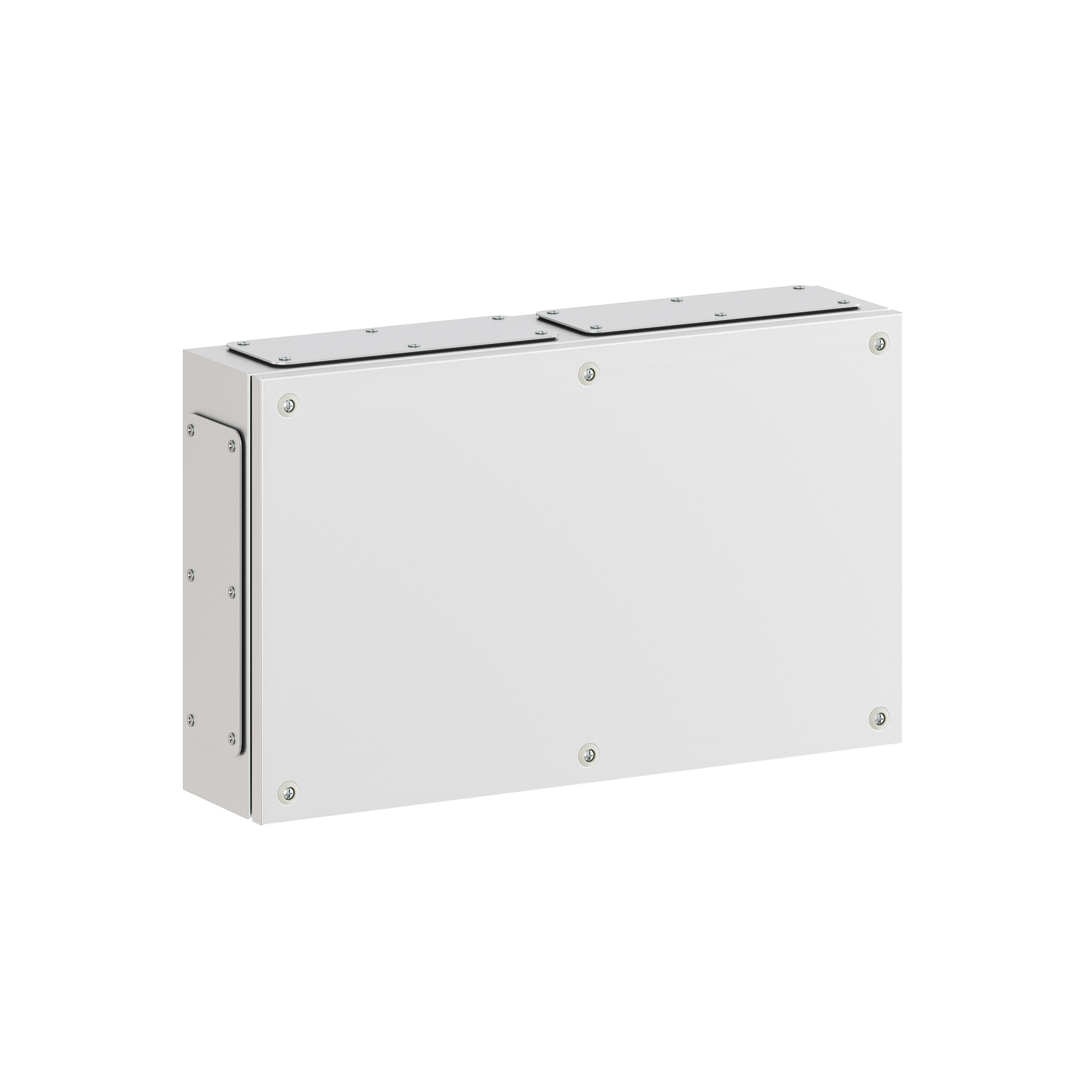

Product type Terminal box
Series SDE
Material Steel, light grey, RAL7035
Height 500 mm
Width 300 mm
Depth 120 mm

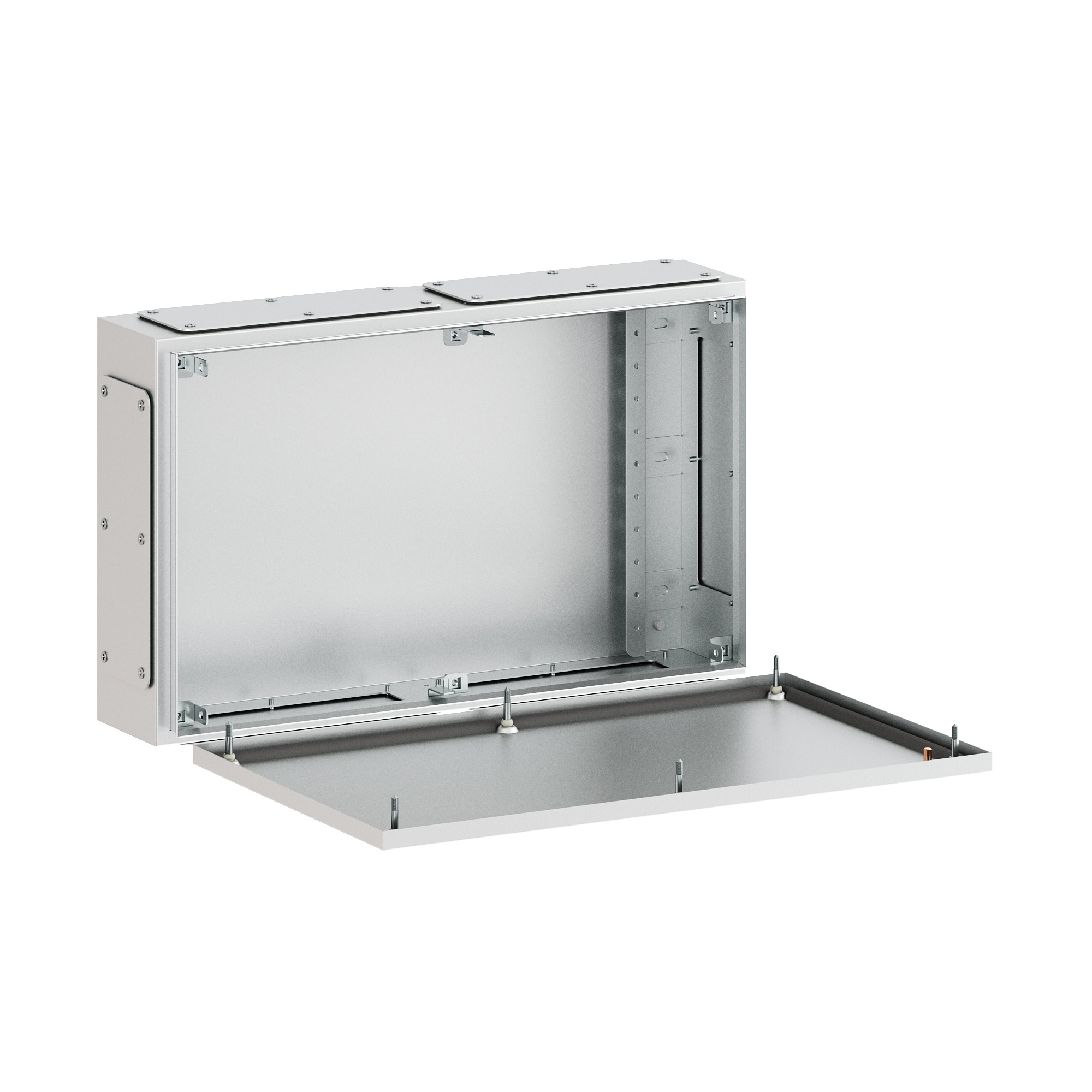

Enclosure design Screw cover
Mounting plate Optional
Door slats Not included
Cable flanges Included
Number of cable flanges 4 pcs.
Enclosure thickness 1,2 mm
Door/lid thickness 1,2 mm
Cablr flange thickness 1,2 mm
Gasket Polyurethane
Degree of protection IP66
IK IK10
Seismic resistance Degree 9 of MSK-64
Mechanical strength M39
Temperature range -60...+90 °С
Climate version UHL1, OM2, OM3, U3
Flammability G1
Russian Maritime Register of Shipping Yes
Russian Classification Society Yes
