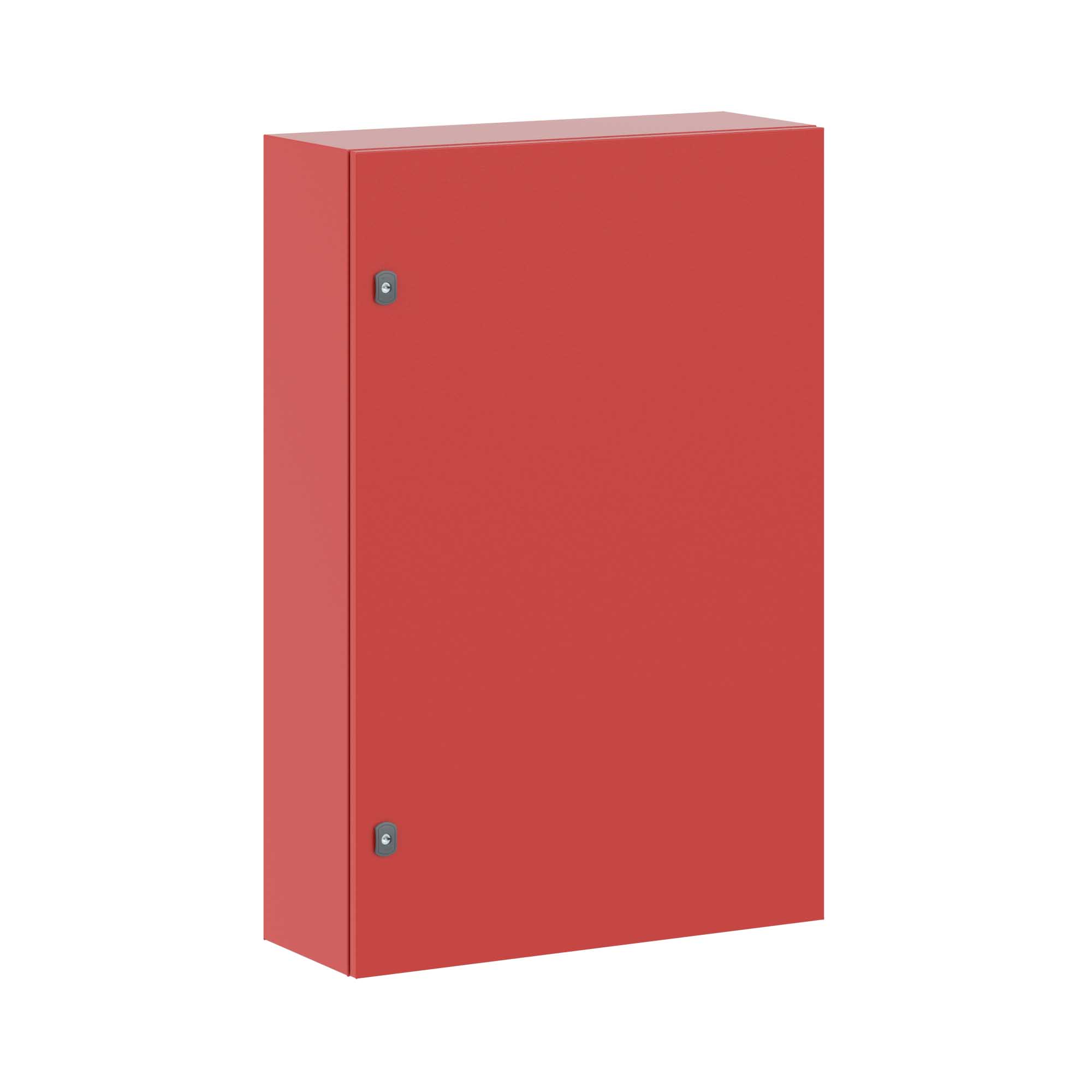

Hinged box ST with MP HxWxD 1200x800x300 mm RAL3020

Code: R5ST1283-RAL3020
Hinged box ST with MP HxWxD 1200x800x300 mm RAL3020
Hinged box ST with MP HxWxD 1200x800x300 mm RAL3020

Hinged box ST with MP HxWxD 1200x800x300 mm RAL3020

Code: R5ST1283-RAL3020
Colour Red
Width, mm 800
Height, mm 1200
Depth, mm 300
RAL-number 3020
With mounting plate Yes
Number of doors 1
Number of locks 2
Material Steel
Impact strength IK10
Degree of protection (IP) IP66
Suitable for outdoor set-up Yes
Mounting plate depth-adjustable Yes
Wall fastening possible Yes
Surface finishing Powder coating
Pole fastening Yes
Drawings
Seria Name Insulation cut out Eplan
Metal enclosures - "RAMblock"
Welded hinged housing of the ST series
ZIP
151.54 Kb
Metal enclosures - "RAMblock"
Welded hinged housing of the ST series
RAR
79.94 Mb
Certificates
Name Document
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
Test report on seismic and vibration metal enclosures ST series_1
PDF
998.40 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the metal housing of the ST series
PDF
1.85 MB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
All types of cable trays, ducts, welded and modular cases -Russian Maritime Register of Shipping_1
PDF
1.42 MB
Certificate of conformity for Wall-mounted enclosure series ST
PDF
1.85 MB
Certificate of the Russian maritime register for welded hinged metal housings of the ST series
PDF
6.13 MB
"RAM block" test report for wall-mounted enclosure series ST (IP,IK, climate, earthquake resistance, paint coating resistance) 05.09.2019
PDF
733.67 kB
